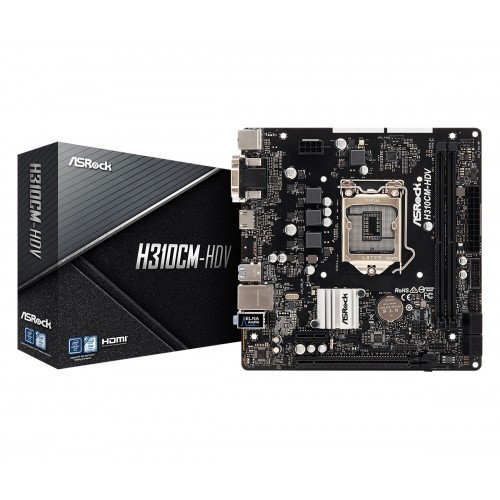

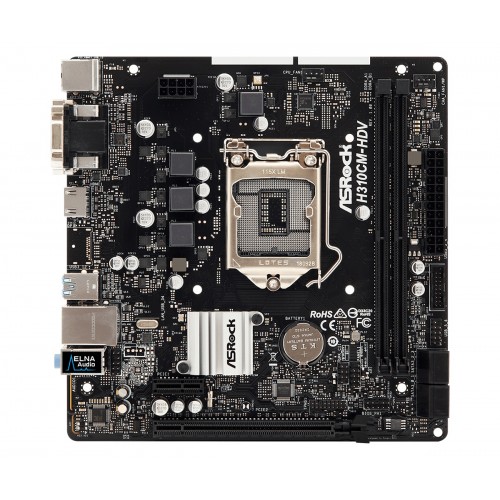

ASRock H310CM-HDV 9th Gen Micro ATX Motherboard

  • Brand:: ASRock
  • Product Code:: ASRock H310CM-HDV
  • Status: In Stock
  • Price: 6,900Tk
  • Regular Price: 7,200Tk

Features

  • Model: ASRock H310CM-HDV
  • Supports 9th and 8th Gen Intel Processor
  • Supports Socket 1151
  • Supports DDR4 2666 Memory
  • Max. capacity memory: 64GB
View More Info!
6,900Tk
Cash Discount Price

ASRock H310CM-HDV Supports 9th and 8th Gen Intel Core Processors (Socket 1151). Supports DDR4 2666. 1 PCIe 3.0 x16, 1 PCIe 2.0 x1. Graphics Output Options: DVI-D, D-Sub, HDMI. 7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps. 4 SATA3. 4 USB 3.1 Gen1 (2 Front, 2 Rear). Supports Full Spike Protection.

Motherboard Basic Info
PCI - 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)* - 1 x PCI Express 2.0 x1 Slot
BIOS - 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - DRAM, PCH 1.05V Voltage Multi-adjustment
Form Factor - Micro ATX Form Factor: 7.5-in x 7.4-in, 19.1 cm x 18.8 cm - Solid Capacitor design
Motherboard Basic Information
Supported CPU Supports 9th and 8th Gen Intel® Core™ Processors (Socket 1151)
Chipset Intel® H310
Motherboard Memory Info
Slots 2 x DDR4 DIMM Slots
Supported Memory Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) 2.0 15μ Gold Contact in DIMM Slots
Maximum Memory 64GB
Motherboard Memory Info
Type Dual Channel DDR4 Memory Technology
Motherboard Graphics Info
Graphics - Supports Intel® UHD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® UHD Graphics - DirectX 12 - HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1 - Three graphics output options: D-Sub, DVI-D and HDMI** - Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required) - Supports HDCP 2.2 with DVI-D and HDMI 1.4 Ports - Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port

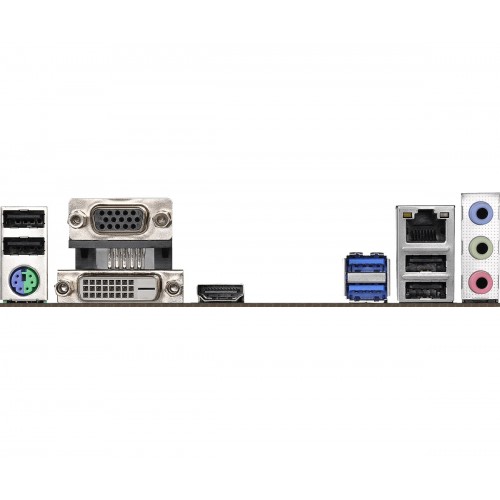

Connector & Ports (MB)
HDMI 1 x HDMI Port
USB (s) -4 x USB 2.0 Ports (Supports ESD Protection) - 2 x USB 3.1 Gen1 Ports (Supports ESD Protection)
LAN Port (s) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
Audio HD Audio Jacks: Line in / Front Speaker / Microphone
Internal I/O Ports - 1 x COM Port Header - 1 x TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin)* - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** - 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection) - 2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (Supports ESD Protection) - 1 x Performance Mode / Easy OC Header
D-Sub (s) 1 x D-Sub Port
DVI-D (s) 1 x DVI-D Port
Warranty Information
Warranty 03 years

ASRock H310CM-HDV Supports 9th and 8th Gen Intel Core Processors (Socket 1151). Supports DDR4 2666. 1 PCIe 3.0 x16, 1 PCIe 2.0 x1. Graphics Output Options: DVI-D, D-Sub, HDMI. 7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps. 4 SATA3. 4 USB 3.1 Gen1 (2 Front, 2 Rear). Supports Full Spike Protection.
