| Motherboard Basic Info | |
| Supported CPU | Socket AM4 support AMD 3rd Gen Ryzen (Matisse/ Renoir) processors and Ryzen 4th Gen (Vermeer) processors Support for future AMD Ryzen processors with BIOS update |
| Chipset | AMD A520 |
| Form Factor | Micro ATX Form Factor Dimension: 24.4cm x 20.8cm ( W x L ) |
| Expansion Slots | |
| PCI | AMD Ryzen 5000/5000 G/4000 G/3000 Processors 1 x PCIe 3.0 x16 Slot(x16 or x4/x4/x4/x4 mode) AMD A520 Chipset 2 x PCIe 3.0 x1 Slot |
| Expansion Slots | |
| M.2 Socket | Supports M.2 Type 2242/ 2260/ 2280 SSD module |
| Motherboard Memory Info | |
| Slots | 2 x DIMM |
| Supported Memory | 3rd Gen AMD Ryzen Processors (Matisse CPUs) Supports for DDR4 4400+(OC) / 4000(OC) / 3800(OC) / 3600(OC) / 3200/ 2933 / 2667 / 2400 / 2133 / 1866 3rd Gen AMD Ryzen with Radeon Graphics Processors (Renoir APUs) Supports for DDR4 4933+(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4000(OC) / 3800(OC) / 3600(OC) / 3200 / 2933 / 2667 / 2400 / 2133 / 1866 |
| Maximum Memory | Up to 64GB |
| Motherboard Memory Info | |
| Type | DDR4 |
| Connectivity | |
| HDMI | 1 x HDMI Port |
| VGA | 1 x VGA Port |
| Motherboard Graphics Info | |
| Graphics | By CPU model Supports DX12 Supports HDCP |
| Connector & Ports (MB) | |
| USB (s) | 2 x USB 2.0 Header (each header supports 2 USB 2.0 ports) 1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports) |
| LAN Port (s) | Realtek RTL8111H 10/ 100/ 1000 Mb/s auto-negotiation, Half / Full duplex capability Supports Super LAN Surge Protection |
| Audio | 3 x Audio Jack |
| Internal I/O Ports | 4 x SATA III (6.0Gb/s) Connectors 1 x 8-Pin Power Connector 1 x 24-Pin Power Connector 1 x CPU Fan Connector 1 x System Fan Connector 1 x Front Panel Header 1 x Front Audio Header 1 x Clear CMOS Header 1 x Internal Stereo Speaker Header 1 x COM Port Header |
| Supported Storage | Realtek RTL8111H 10/ 100/ 1000 Mb/s auto-negotiation, Half / Full duplex capability Supports Super LAN Surge Protection |
| Audio | |
| Audio Output | ALC887 7.1 Channels, High Definition Audio, Hi-Fi (Front) |
| Others | |
| Special Features | Supports 100% Solid capacitor BIO-FLASHER A.I FAN PCIe M.2 32Gb/s |
| Bundled Software | BullGuard |
| Warranty Information | |
| Manufacturing Warranty | 03 Years |

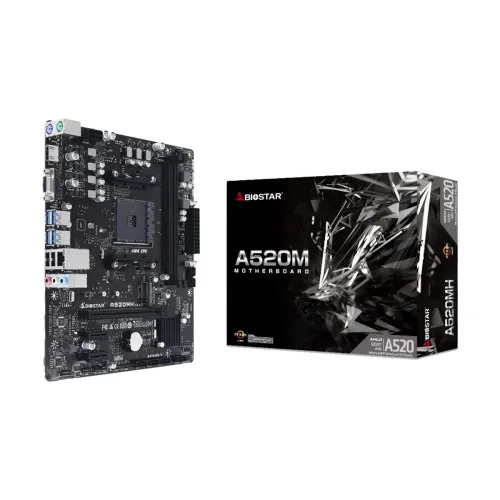

The BIOSTAR A520MH DDR4 AMD AM4 Micro-ATX Motherboard is a reliable and cost-effective solution designed for everyday computing, home PCs, and budget gaming systems. Built on the AMD A520 chipset, it supports a wide range of AMD Ryzen processors on the AM4 socket, making it an excellent choice for users looking to build or upgrade a stable and efficient desktop system.
This motherboard supports DDR4 memory, delivering dependable performance for multitasking, productivity, and entertainment. Its optimized power delivery design ensures stable system operation, while BIOSTAR’s quality components provide long-term durability for daily use. The micro-ATX form factor allows it to fit easily into compact PC cases without sacrificing essential features.
The BIOSTAR A520MH includes essential expansion and connectivity options, such as PCIe slots, USB ports, and high-quality audio output, offering flexibility for graphics cards, storage devices, and peripherals. Integrated network connectivity ensures reliable internet performance for work, streaming, and online activities.
Designed with user convenience in mind, the motherboard features an intuitive BIOS interface that simplifies system configuration and hardware monitoring. Its efficient thermal design helps maintain consistent performance and system stability, even during extended operating hours.
Whether you’re building a budget gaming PC, a home office system, or a general-purpose desktop, the BIOSTAR A520MH DDR4 AMD AM4 Micro-ATX Motherboard delivers dependable performance, essential features, and excellent value.
The BIOSTAR A520MH DDR4 AMD AM4 Micro ATX Motherboard is now. You can buy the BIOSTAR A520MH DDR4 AMD AM4 Micro ATX Motherboard at the best price from our website or visit any of our showrooms When the product is available.
