| Motherboard Basic Info | |
| Supported CPU | Socket AM4 supports AMD® Ryzen APU / Ryzen CPU |
| Chipset | AMD B450 |
| Form Factor | Micro ATX Form Factor Dimension: 19.8cm x 24.4cm ( W x L ) |
| Expansion Slots | |
| M.2 Socket | Supports M.2 Type 2242/ 2260/ 2280 SSD module |
| Expansion Slots | |
| PCI | 2 x PCIe 2.0 x1 Slots 1 x PCIe 3.0 x16 Slot (When using APU, the bandwidth is x8 speed) |
| Motherboard Memory Info | |
| Type | DDR4 |
| Motherboard Memory Info | |
| Slots | 2 x DIMM |
| Supported Memory | Support Dual Channel DDR4 1866/ 2133/ 2400/ 2667/ 2933/ 3200(OC) MHz 2 x DDR4 DIMM Memory Slot, Max. Supports up to 32GB of Memory Each DIMM supports non-ECC 8/16 GB DDR4 module |
| Maximum Memory | Up to 32GB |
| Connectivity | |
| VGA | 1 x VGA Port |
| Audio Jack | 3 x Audio Jack |
| Motherboard Graphics Info | |
| Graphics | By CPU model Supports DX12 Supports HDCP |
| Connector & Ports (MB) | |
| HDMI | 1 x HDMI Port |
| USB (s) | 2 x USB 2.0 Header (each header supports 2 USB 2.0 ports) 1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports) |
| LAN Port (s) | Realtek RTL 8111H 10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability |
| Audio | ALC897 7.1 Channels, High Definition Audio Expansion Slots |
| Internal I/O Ports | 4 x SATA III 6.0Gb/s Connectors 2 x USB 2.0 Header (each header supports 2 USB 2.0 ports) 1 x USB 3.1 Gen1 (5Gb/s) Header (each header supports 2 USB 3.1 Gen1 ports) 1 x 8-pin Power Connector 1 x 24-pin Power Connector 1 x CPU Fan Connector 1 x System Fan Connector 1 x Front Panel Header 1 x Front Audio Header 1 x COM Serial Header 1 x Clear CMOS Header |
| Supported Storage | 4 x SATA III Connector (6Gb/s) : Supports AHCI & RAID 0, 1, 10 1 x M.2 (32Gb/s): Supports PCI-E & SATA SSD |
| Others | |
| Bundled Software | BullGuard |
| Warranty Information | |
| Manufacturing Warranty | 3 Years Warranty |

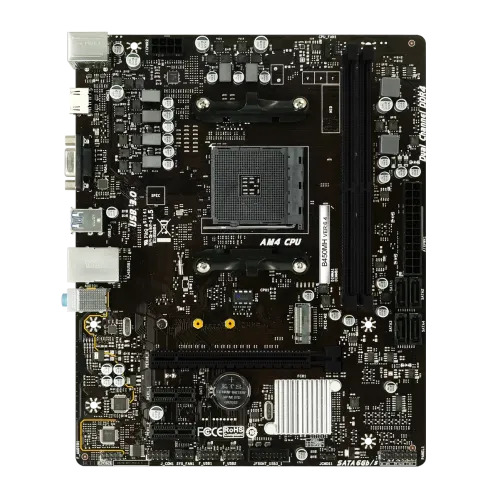

The BIOSTAR B450MH DDR4 AMD AM4 Micro ATX Motherboard is now. You can buy the BIOSTAR B450MH DDR4 AMD AM4 Micro ATX Motherboard at the best price from our website or visit any of our showrooms When the product is available.
