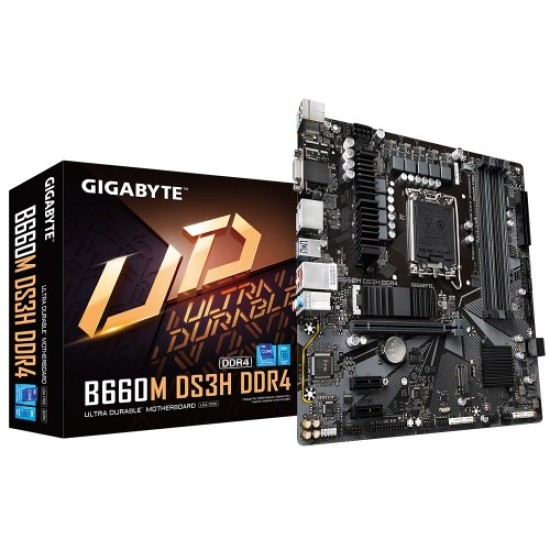

Gigabyte B660M DS3H DDR4 12th Gen Micro ATX Motherboard

Gigabyte B660M DS3H DDR4 12th Gen Micro ATX Motherboard
Out Of Stock
Gigabyte B660M DS3H DDR4 12th Gen Micro ATX Motherboard
  • Price: 0৳
  • Stock: Out Of Stock
  • Brand: Gigabyte
  • Model: B660M DS3H DDR4
Featured Description:
  • Model: B660M DS3H DDR4
  • LGA1700 socket: Supports 12th Gen Intel Core Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs​​
  • Fast 2.5 GbE LAN with Bandwidth Management​​
  • Dual Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Thermal Guard​​
    • Based on 0 reviews. - Write a review
    0৳
    Add to Cart
    Buy Now Ask Question
    WishList Compare
    অর্ডার করার পূর্বে হেল্প লাইন নাম্বারে কল দিয়ে পণ্য এর স্টক ও ডেলিভারি সম্পর্কে জেনে নেওয়ার জন্য অনুরোধ করা যাচ্ছে ; প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ার কারনে যেকোনো সময় মূল্য পরিবর্তন হতে পারে । ধন্যবাদ

    What is The Latest Gigabyte B660M DS3H DDR4 12th Gen Micro ATX Motherboard Price in Bangladesh?

    The Gigabyte B660M DS3H DDR4 Motherboard price 2024 in bangladesh is in today's 20-04-2024 BD market. Buy original Gigabyte B660M DS3H DDR4 12th Gen Micro ATX Motherboard at the lowest price from Selltech website or visit our shop. The Gigabyte B660M DS3H DDR4 12th Gen Micro ATX Motherboard manufacturing by Gigabyte comes with warranty and reviewed by 0 users. Follow us on Facebook for regular updates & Offer. Subscribe our YouTube Channel for product reviews.

    Description

    Gigabyte B660M DS3H DDR4 12th Gen Micro ATX Motherboard

     The Gigabyte B660M DS3H DDR4 12th Gen Micro ATX Motherboard comes with LGA1700 socket which supports 12th Gen Intel Core Series Processors. It comes with Dual ChannelNon-ECC Unbuffered DDR4, 4 DIMMs. It features 6 2 1 Phases Mongrel Digital VRM with MOS Heatsink. It's a Completely Covered Thermal Design with High Coverage MOSFET Heatsinks. It's equipped with Fast2.5 GbE LAN with Bandwidth Management and DualUltra-Fast NVMe PCIe4.0 x4M. 2 with Thermal Guard. It offers BinaryUltra-Fast NVMe PCIe4.0 x4M. 2 with Thermal Guard. It haspre-installed IO Shield for easy and quick installation. It comes with RGB FUSION2.0 withMulti-Zone Nontransferable LED Light Show Design, Supports Nontransferable LED & RGB LED Strips. Smart Fan 6 Features Multiple Temperature Detectors, Mongrel Addict Heads with Addict STOP. Q-Flash Plus Update BIOS without Installing the CPU, Memory, and Graphics Card. The Gigabyte B660M DS3H DDR4 comes with 3 times of bond.


    Specifications

    Motherboard Basic Info
    BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Motherboard Basic Information
    Supported CPU LGA1700 socket: Support for 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU
    Chipset Intel B660 Express Chipset
    Expansion Slots
    PCI 1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 4.0 standard.) 2 x PCI Express x1 slots (The PCIEX1 slots conform to PCI Express 3.0 standard.)
    Memory Specifications
    Type DDR4
    Motherboard Memory Info
    Slots 4 x DDR DIMM sockets
    Supported Memory Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
    Connectivity
    HDMI 1 x HDMI port
    Motherboard Graphics Info
    Graphics Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version. Support for up to 4 displays at the same time
    Connector & Ports (MB)
    USB (s) 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 2 x USB 2.0/1.1 ports on the back panel Chipset+2 USB 2.0 Hubs: 4 x USB 2.0/1.1 ports available through the internal USB headers
    Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x parallel port header 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper
    Supported Storage CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 Intel Optane Memory Ready
    Others
    Special Features Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
    Warranty Information
    Manufacturing Warranty 3 years
