| Main Features | |
| Load Capacity | Overload capability 110% only audible warning, 110-130% for 30 sec, >130% for 100 ms |
| Input Voltage | Nominal voltage 208Vac/220Vac/230Vac/240Vac Input voltage range 160Vac-300Vac from 50% to 100% load, 110Vac-300Vac up to 50% load |
| Output Voltage | Nominal voltage 208Vac/220Vac/230Vac/240Vac Static voltage Regulation at %100 ±2% linear load (On-Line and battery mode) Voltage THD at rated linear load <3% (linear load), <6% (non-linear) |
| Frequency (Battery Mode) | 50/60 Hz |
| Noise Level | < 45 dBA to 1 m |
| Battery | 12V 9Ah, Lead-acid, sealed |
| Rectifier Type | Yes |
| Input Features | |
| Frequency | Nominal frequency 50/60 Hz (selectable) Input frequency range (On-Line mode) ±7% |
| Power Factor | 0,99 |
| Voltage Range | Nominal voltage 208Vac/220Vac/230Vac/240Vac Input voltage range 160Vac-300Vac from 50% to 100% load, 110Vac-300Vac up to 50% load |
| Output Features | |
| Backup Time | 15 min |
| Voltage Range | Nominal voltage 208Vac/220Vac/230Vac/240Vac Static voltage Regulation at %100 ±2% linear load (On-Line and battery mode) Voltage THD at rated linear load <3% (linear load), <6% (non-linear load) |
| Power Factor | 0,9 |
| Transfer Time | 0 ms (On-Line) |
| Warranty Information | |
| Warranty | 02 Years Warranty |

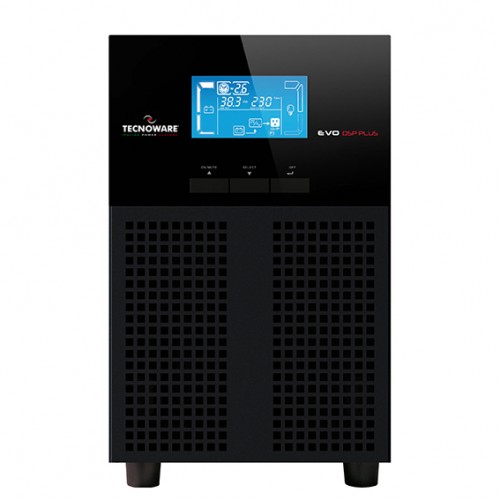

Tecnoware FGCEVDP3004MM UPS On-Line Double Conversion Technology without a transformer (VFI-SS-111).Power Factor 0,9. Rectifier realized by IGBT technology. Active PFC Circuit (0.99).Compatible with Generators. Output voltage and frequency are often regulated from the front panel. Static Bypass. USB and RS232 ports
The Tecnoware FGCEVDP3004MM Online UPS (Made in Italy) is now. You can buy the Tecnoware FGCEVDP3004MM Online UPS (Made in Italy) at the best price from our website or visit any of our showrooms When the product is available.
