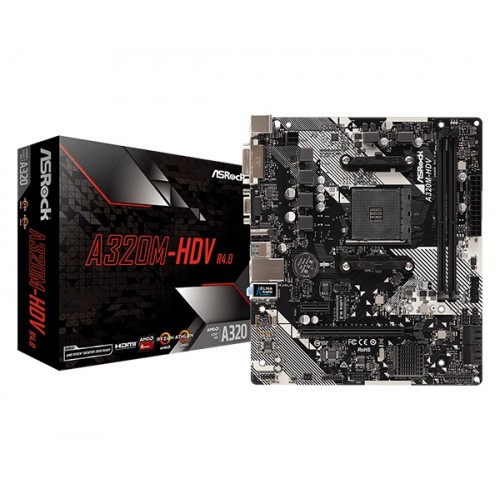

ASRock A320M-HDV R4.0 AMD Motherboard

  • Brand:: ASRock
  • Product Code:: ASRock A320M-HDV R4.0
  • Status: In Stock
  • Price: 5,900Tk
  • Regular Price: 6,100Tk

Features

  • Model: ASRock A320M-HDV R4.0
  • Memory 32 GB
  • AMD Promontory A320
  • Windows 10; 64-bit
  • 1 PCIe 3.0 x16, 1 PCIe 2.0 x1
View More Info!
5,900Tk
Cash Discount Price

ASRock A320M-HDV R4.0 AMD Motherboard

ASRock A320M-HDV R4.0 AMD Motherboard inbuilt AMD AM4 Socket with AMD Promontory A320 chipset. You Can use Sata 3 M.2 and is Suitable with ASRock’s U.2 Kit for installing variety of the world’s fastest U.2 PCIe Gen3 x4 SSDs.

The main Feature of ASRock A320M-HDV MB

ASRock A320M-HDV R4.0 Supports CPU up to 105W with AMD AM4 Socket Processor and Ryzen Series CPUs.This MB has High-Density Glass Fabric PCB, Sapphire Black PCB, ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3), ASRock Full Spike Protection (for all USB, Audio, LAN Ports) and ASRock Live Update & APP Shop o meet the foremost of the user’s need. For graphical support, it's AMD Radeon Vega Series Graphics in Ryzen Series APU and AMD Radeon R-Series Graphics in A-series APU. That Motherboard can supports D-Sub resolution up to 2048x1536 @ 60Hz, DVI-D resolution up to 1920x1200 @ 60Hz) and HDMI (resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30H) graphics output options. during this amazing ASRock Motherboard the ASRock APP Charger, ASRock XFast LAN is employed. Dual Channel DDR4 Ram Technology (2 x DDR4 DIMM Slots). Moreover, during this exclusive Motherboard utilized in differing types of memory storage; these are - Dual Channel DDR4 Memory Technology, 2 x DDR4 DIMM Slots, AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory, AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+(OC) / 2933/2667/2400/2133 non-ECC, un-buffered memory, Have PCI-E x1 Gigabit LAN 10/100/1000 Mb/s, Realtek RTL8111H, Lightning/ESD Protection, Supports Wake-On-LAN,  Energy Efficient Ethernet 802.3az, and PXE during this exclusive Motherboard.

Special Features of this Motherboard that has got to be considered

Have a glance at the special features of this board which may firm your buying decision. This Motherboard supports PCIe Gen3 x4 Ultra M.2 interface pushes data transfer accelerates to 32Gb/s. PCB appearance represents rock-solid quality and provides the motherboard with a more mysterious touch. You can easily optimize your system and keep your motherboard up so far with ASRock Live Update & APP Shop. For gaming or entertainment, these are the features one should consider buying it.

Motherboard Basic Info
PCI AMD Ryzen series CPUs (Summit Ridge and Pinnacle Ridge) - 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode) AMD 7th A-Series APUs / Raven Ridge CPUs - 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode) AMD Ryzen series CPUs (Raven Ridge) - 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode) AMD Athlon series CPUs - 1 x PCI Express 3.0 x16 Slot (PCIE2: x4 mode) - 1 x PCI Express 2.0 x1 Slot
BIOS - 128Mb AMI UEFI Legal BIOS with GUI support - Supports "Plug and Play" - ACPI 5.1 compliance wake up events - Supports jumperfree - SMBIOS 2.3 support - DRAM Voltage multi-adjustment
Form Factor - Micro ATX Form Factor: 9.1-in x 8.1-in, 23.1 cm x 20.6 cm - Solid Capacitor design
Motherboard Basic Information
Supported CPU - Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Summit Ridge, Raven Ridge and Pinnacle Ridge) - Digi Power design - 7 Power Phase design - Supports CPU up to 65W
Chipset - AMD Promontory A320
Expansion Slots
M.2 Socket - 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with A-Series APU, and Athlon 2xxGE series APU) - 1 x Screw for M.2 Socket
Graphics Specifications
Max Shared Memory - Shared memory default 2GB. Max Shared memory supports up to 16GB. - The Max shared memory 16GB requires 32GB system memory installed.
Motherboard Memory Info
Slots - 2 x DDR4 DIMM Slots - 15μ Gold Contact in DIMM Slots
Supported Memory - AMD Ryzen series CPUs (Matisse) support DDR4 3200/2933/2667/2400/2133 ECC & non-ECC, un-buffered memory - AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory - AMD Ryzen series CPUs (Picasso) support DDR4 2933/2667/2400/2133 non-ECC, un-buffered memory - AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory - AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+(OC) / 2933/2667/2400/2133 non-ECC, un-buffered memory - AMD 7th Gen A-Series APUs support DDR4 2400/2133 non-ECC, un-buffered memory
Maximum Memory - Max. the capacity of system memory: 32GB
Motherboard Memory Info
Type - Dual-Channel DDR4 Memory Technology
Connector & Ports (MB)
HDMI - 1 x HDMI Port - Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz - Supports HDCP 1.4 with DVI-D and HDMI Ports - Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
USB (s) - 6 USB 3.1 Gen1 (2 Front, 4 Rear) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection) - 2 x USB 2.0 Ports (Supports ESD Protection) - 4 x USB 3.1 Gen1 Ports (Supports ESD Protection)
LAN Port (s) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
Audio - 7.1 CH HD Audio (Realtek ALC887 Audio Codec) - Supports Surge Protection - ELNA Audio Caps
Internal I/O Ports - 1 x PS/2 Mouse/Keyboard Port - 1 x D-Sub Port - 1 x DVI-D port - 1 x HDMI Port - 2 x USB 2.0 Ports (Supports ESD Protection) - 4 x USB 3.1 Gen1 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone
D-Sub (s) - 1 x D-Sub port - Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz
DVI-D (s) - 1 x DVI-D port - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz - Supports HDCP 1.4 with DVI-D and HDMI Ports - Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Po
Supported Storage - 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug - 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with A-Series APU, and Athlon 2xxGE series APU) - Supports ASRock U.2 Kit - Supports NVMe SSD as boot disks
Warranty Information
Manufacturing Warranty 03 Years warranty

ASRock A320M-HDV R4.0 AMD Motherboard

ASRock A320M-HDV R4.0 AMD Motherboard inbuilt AMD AM4 Socket with AMD Promontory A320 chipset. You Can use Sata 3 M.2 and is Suitable with ASRock’s U.2 Kit for installing variety of the world’s fastest U.2 PCIe Gen3 x4 SSDs.

The main Feature of ASRock A320M-HDV MB

ASRock A320M-HDV R4.0 Supports CPU up to 105W with AMD AM4 Socket Processor and Ryzen Series CPUs.This MB has High-Density Glass Fabric PCB, Sapphire Black PCB, ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3), ASRock Full Spike Protection (for all USB, Audio, LAN Ports) and ASRock Live Update & APP Shop o meet the foremost of the user’s need. For graphical support, it's AMD Radeon Vega Series Graphics in Ryzen Series APU and AMD Radeon R-Series Graphics in A-series APU. That Motherboard can supports D-Sub resolution up to 2048x1536 @ 60Hz, DVI-D resolution up to 1920x1200 @ 60Hz) and HDMI (resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30H) graphics output options. during this amazing ASRock Motherboard the ASRock APP Charger, ASRock XFast LAN is employed. Dual Channel DDR4 Ram Technology (2 x DDR4 DIMM Slots). Moreover, during this exclusive Motherboard utilized in differing types of memory storage; these are - Dual Channel DDR4 Memory Technology, 2 x DDR4 DIMM Slots, AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory, AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+(OC) / 2933/2667/2400/2133 non-ECC, un-buffered memory, Have PCI-E x1 Gigabit LAN 10/100/1000 Mb/s, Realtek RTL8111H, Lightning/ESD Protection, Supports Wake-On-LAN,  Energy Efficient Ethernet 802.3az, and PXE during this exclusive Motherboard.

Special Features of this Motherboard that has got to be considered

Have a glance at the special features of this board which may firm your buying decision. This Motherboard supports PCIe Gen3 x4 Ultra M.2 interface pushes data transfer accelerates to 32Gb/s. PCB appearance represents rock-solid quality and provides the motherboard with a more mysterious touch. You can easily optimize your system and keep your motherboard up so far with ASRock Live Update & APP Shop. For gaming or entertainment, these are the features one should consider buying it.
