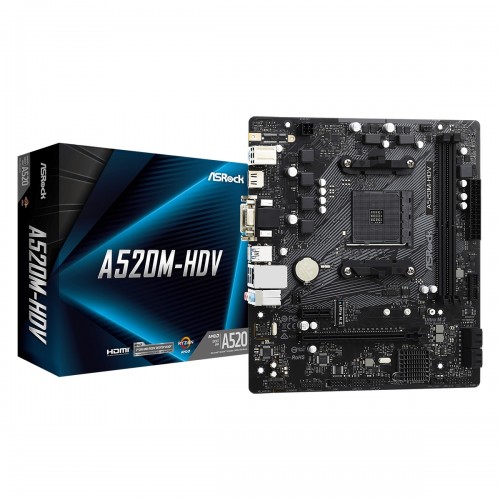

ASRock A520M-HDV Micro ATX AM4 Motherboard

ASRock A520M-HDV Micro ATX AM4 Motherboard
Discountinued
ASRock A520M-HDV Micro ATX AM4 Motherboard
  • Price: 0৳
  • Stock: Discountinued
  • Brand: ASRock
  • Model: ASRock A520M-HDV
  • SKU: 15
  • Warranty: 3 Years
Featured Description:
  • Model: ASRock A520M-HDV
  • Ready for 3rd Gen AMD Ryzen Processors
  • Ultrafast connectivity
  • Comprehensive cooling
    • Based on 0 reviews. - Write a review
    0৳
    Add to Cart
    Buy Now Ask Question
    WishList Compare
    অনলাইনে অর্ডার নিশ্চিত করতে অর্ডার করার সময় আংশিক অগ্রিম টাকা পরিশোধ করতে হবে । অর্ডার করার পূর্বে 01759546431 নাম্বারে কল দিয়ে পণ্য এর স্টক ও ডেলিভারি সম্পর্কে জেনে নেওয়ার জন্য অনুরোধ করা যাচ্ছে ; প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ার কারনে যেকোনো সময় মূল্য পরিবর্তন হতে পারে । ধন্যবাদ

    Specification

    Motherboard Basic Info
    BIOS 128Mb AMI UEFI Legal BIOS with GUI support Supports "Plug and Play" ACPI 5.1 compliance wake up events Supports jumperfree SMBIOS 2.3 support CPU, CPU VDDCR_SOC, DRAM, VDDP Voltage Multi-adjustment
    Max Shared Memory 16GB
    Motherboard Basic Information
    Supported CPU Supports 3rd Gen AMD AM4 Ryzen / future AMD Ryzen Processors (3000 and 4000 Series Processors) 6 Power Phase design
    Chipset AMD A520
    Expansion Slots
    PCI 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode) 1 x PCI Express 3.0 x1 Slot
    Expansion Slots
    M.2 Socket 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
    Memory Specifications
    Type Dual Channel Memory Architecture
    Motherboard Memory Info
    Supported Memory AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory
    Maximum Memory 64GB
    Motherboard Graphics Info
    Graphics Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU DirectX 12, Pixel Shader 5.0 Shared memory default 2GB. Max Shared memory supports up to 16GB. Three graphics output options: D-Sub, DVI-D and HDMI Supports Triple Monitor Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required) Supports HDR (High Dynamic Range) with HDMI 2.1 Supports HDCP 2.3 with DVI-D and HDMI 2.1 Ports Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port Supports Microsoft PlayReady
    Connector & Ports (MB)
    HDMI 1 x HDMI
    USB (s) 2 x USB 2.0 Ports (Supports ESD Protection) 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
    Internal I/O Ports 1 x COM Port Header 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (4-pin)* 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)** 1 x 24 pin ATX Power Connector 1 x 4 pin 12V Power Connector 1 x Front Panel Audio Connector 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
    Supported Storage 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
    Warranty Information
    Manufacturing Warranty 03 Years Warranty

    Description


    ASRock A520M-HDV Micro ATX AM4 Motherboard

    The ASRock A520M-HDV Micro ATX AM4 Motherboard has PCIe Gen3 x4 Ultra M.2 interface pushes data transfer accelerates to 32Gb/s. additionally , it also supports SATA3 6Gb/s M.2 modules. Supports the foremost recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and fewer blurry. Complete with all three sorts of most used connectors! full of a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution. Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to 3 times better, thus providing enhanced and improved Vcore voltage to the motherboard. High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to guard the motherboard against electrical shorts caused by humidity. Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and provides the motherboard a more mysterious touch. Some sensitive digital components on the motherboard are susceptible to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to stop your motherboard’s components from being damaged by these unexpected voltage spikes. ASRock Live Update & APP Shop is meant for your convenience. we offer various apps and support software for users to download. you'll also easily optimize your system and keep your motherboard up so far with ASRock Live Update & APP Shop.
