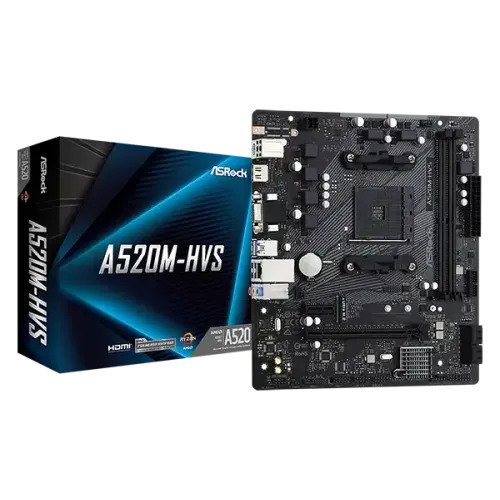

ASRock A520M-HVS AMD AM4 Micro ATX Motherboard

ASRock A520M-HVS AMD AM4 Micro ATX Motherboard
Out Of Stock
ASRock A520M-HVS AMD AM4 Micro ATX Motherboard
  • Stock: Out Of Stock
  • Product id:  3665
  • Brand: ASRock
  • Model: A520M-HVS
  • Model: A520M-HVS
  • Supported CPU: AM4 Socket Ryzen 3000, 4000 G & 5000 & 5000 G-Series
  • Supported RAM: 2 x DDR4, 4733+ (OC)
  • Graphics Output: D-Sub, HDMI
  • Features: 1 x Ultra M.2, Realtek Gigabit LAN
Specification
Motherboard Basic Info
Supported CPU Supports AMD AM4 Socket Ryzen 3000, 4000 G-Series and 5000 and 5000 G-Series Desktop Processors 6 Power Phase design
BIOS - 128Mb AMI UEFI Legal BIOS with GUI support - Supports "Plug and Play" - ACPI 5.1 compliance wake up events - Supports jumperfree - SMBIOS 2.3 support - CPU, CPU VDDCR_SOC, DRAM, VDDP Voltage Multi-adjustment
Max Shared Memory 16GB
Form Factor Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm Solid Capacitor design
Motherboard Basic Information
Chipset AMD A520
Expansion Slots
PCI 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)* 1 x PCI Express 3.0 x1 Slot
Motherboard Memory Info
Slots 2 x DIMM
Supported Memory Dual Channel DDR4 Memory Technology AMD Ryzen series CPUs (Vermeer) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series APUs (Cezanne) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* Supports Extreme Memory Profile (XMP) memory modules 15μ Gold Contact in DIMM Slots
Maximum Memory 64GB
Motherboard Memory Info
Type DDR4
Connectivity
Audio Jack HD Audio Jacks: Line in / Front Speaker / Microphone
Motherboard Graphics Info
Graphics - Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU* - DirectX 12, Pixel Shader 5.0 - Shared memory default 2GB. Max Shared memory supports up to 16GB.** - Dual graphics output: support D-Sub and HDMI ports by independent display controllers - Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required) - Supports HDR (High Dynamic Range) with HDMI 2.1 - Supports HDCP 2.3 with HDMI 2.1 Port - Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port - Supports Microsoft PlayReady
Connector & Ports (MB)
HDMI 1 x HDMI
USB (s) 2 x USB 2.0 Ports (Supports ESD Protection) 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
LAN Port (s) PCIE x1 Gigabit LAN 10/100/1000 Mb/s Realtek RTL8111H Supports Wake-On-LAN Supports Lightning/ESD Protection Supports Energy Efficient Ethernet 802.3az Supports PXE
Audio 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec) Supports Surge Protection
Internal I/O Ports 1 x COM Port Header 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (4-pin)* 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)** 1 x 24 pin ATX Power Connector 1 x 4 pin 12V Power Connector 1 x Front Panel Audio Connector 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
D-Sub (s) 1 x D-Sub
Supported Storage CPU: 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes* Chipset: 4 x SATA3 6.0 Gb/s Connectors
Others
Special Features ASRock Super Alloy - Premium 50A Power Choke - Sapphire Black PCB - High Density Glass Fabric PCB ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop
Warranty Information
Manufacturing Warranty 03 Years Warranty
Description

The ASRock A520M-HVS AMD AM4 Micro-ATX Motherboard is a reliable and cost-effective solution for building or upgrading desktop PCs. Designed with the AM4 socket, it fully supports AMD Ryzen 3000 and 5000 series processors, offering a perfect combination of performance, efficiency, and stability for office tasks, multimedia, and budget gaming.


This Micro-ATX motherboard features DDR4 memory support, enabling fast and responsive multitasking for modern applications, smooth productivity, and light gaming. With multiple PCIe expansion slots, users can easily add dedicated graphics cards, sound cards, or other peripherals to enhance system capabilities, ensuring your PC can grow with your needs.


Connectivity options include USB ports, SATA interfaces, LAN, and VGA/HDMI outputs, making it easy to connect storage devices, peripherals, and displays. The compact Micro-ATX form factor allows installation in smaller cases while still offering essential features and flexibility.


Built for durability, compatibility, and performance, the ASRock A520M-HVS provides a solid foundation for desktops used in work, study, or entry-level gaming. Its combination of AMD Ryzen processor support, DDR4 memory, and multiple expansion and connectivity options ensures your system remains responsive and future-ready.


Upgrade your desktop with the ASRock A520M-HVS AMD AM4 Micro-ATX Motherboard for a dependable, versatile, and budget-friendly solution, perfect for users looking for a compact motherboard that doesn’t compromise on performance or reliability.
