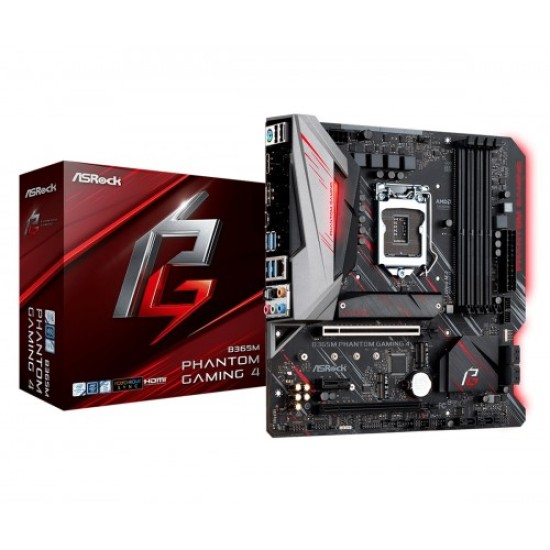

Asrock B365M Phantom Gaming 4 9th Gen Motherboard

  • Brand:: ASRock
  • Product Code:: Asrock B365M Phantom Gaming 4
  • Status: In Stock
  • Price: 10,200Tk
  • Regular Price: 10,500Tk

Features

  • Model: Asrock B365M Phantom Gaming 4
  • Supports 9th and 8th Gen Intel Core Processors
  • Support Socket 1151
  • Chipset Intel B365
  • Max 64GB Memory Support
View More Info!
10,200Tk
Cash Discount Price

Asrock B365M Phantom Gaming 4 Supports 9th and 8th Gen Intel Core processors (Socket 1151). Supports DDR4 2666 MHz.2 PCIe 3.0 x16, 1 PCIe 3.0 x1, 1 M.2 Key E for WiFi.AMD Quad CrossFireX.Graphics Output Options: HDMI, Display Port.7.1 CH HD Audio (Realtek ALC1200 Audio Codec), Supports DTS Connect. 6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4), 1 Ultra M.2 (PCIe Gen3 x4 & SATA3). 7 USB 3.1 Gen1 (2 Front, 4 Rear, 1 Type-C).. Intel® Gigabit LAN. ASRock Polychrome RGB


Buy AsRock B365M Phantom Gaming 4 at the best price within the market of Rangpur, Chattagram, Dhaka, Rajshahi & Khulna. All you would like to try to to is to order from our site and our online delivery channel will arrange the delivery at any location inside Bangladesh.

Motherboard Basic Info
PCI 2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3)) 1 x PCI Express 3.0 x1 Slot (Flexible PCIe) 15μ Gold Contact in VGA PCIe Slot (PCIE1)
BIOS - 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU, GT, DRAM, PCH 1.0V, VCCSA, VCCST Voltage Multi-adjustment
Form Factor Micro ATX Form Factor: 9.6-in x 9.52-in, 24.4 cm x 24.2 cm
Motherboard Basic Information
Supported CPU -Supports 9th and 8th Gen Intel® Core™ Processors (Socket 1151) - Supports CPU up to 95W - Digi Power design - 8 Power Phase design - Supports Intel® Turbo Boost 2.0 Technology
Chipset Intel B365
Memory Specifications
Type Dual Channel DDR4 Memory Technology
Motherboard Memory Info
Slots 4 x DDR4 DIMM Slots
Supported Memory Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory Supports ECC UDIMM memory modules (operate in non-ECC mode) Supports Intel® Extreme Memory Profile (XMP) 2.0
Connectivity
HDMI 1 x HDMI Port
Motherboard Graphics Info
Graphics - Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz - Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required) - Supports HDCP 2.2 with HDMI and DisplayPort 1.2 Ports - Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and DisplayPort 1.2 Ports
Connector & Ports (MB)
USB (s) - 2 x USB 2.0 Ports (Supports ESD Protection) - 1 x USB 3.1 Gen1 Type-C Port (Supports ESD Protection) - 4 x USB 3.1 Gen1 Ports (Supports ESD Protection)
LAN Port (s) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
Audio HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
Internal I/O Ports - 1 x COM Port Header - 1 x TPM Header - 1 x Chassis Intrusion and Speaker Header - 2 x RGB LED Headers* - 1 x Addressable LED Header** - 1 x CPU Fan Connector (4-pin)*** - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection) - 1 x Post Status Checker (PSC)
Warranty Information
Manufacturing Warranty 03 years

Asrock B365M Phantom Gaming 4 Supports 9th and 8th Gen Intel Core processors (Socket 1151). Supports DDR4 2666 MHz.2 PCIe 3.0 x16, 1 PCIe 3.0 x1, 1 M.2 Key E for WiFi.AMD Quad CrossFireX.Graphics Output Options: HDMI, Display Port.7.1 CH HD Audio (Realtek ALC1200 Audio Codec), Supports DTS Connect. 6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4), 1 Ultra M.2 (PCIe Gen3 x4 & SATA3). 7 USB 3.1 Gen1 (2 Front, 4 Rear, 1 Type-C).. Intel® Gigabit LAN. ASRock Polychrome RGB


Buy AsRock B365M Phantom Gaming 4 at the best price within the market of Rangpur, Chattagram, Dhaka, Rajshahi & Khulna. All you would like to try to to is to order from our site and our online delivery channel will arrange the delivery at any location inside Bangladesh.
