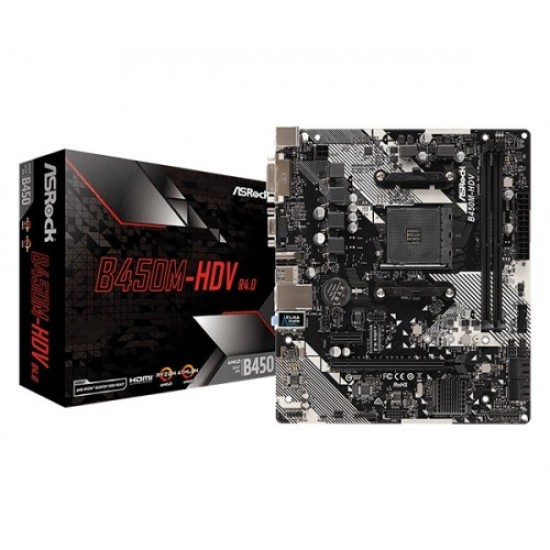

ASRock B450M-HDV R4.0 AMD Motherboard

  • Brand:: ASRock
  • Product Code:: ASRock B450M-HDV R4.0
  • Status: In Stock
  • Price: 7,000Tk
  • Regular Price: 7,200Tk

Features

  • Model: ASRock B450M-HDV R4.0
  • Memory 32 GB
  • AMD Promontory B450
  • Windows 10; 64-bit
  • 1 PCIe 3.0 x16, 1 PCIe 2.0 x1
View More Info!
7,000Tk
Cash Discount Price

ASRock B450M-HDV R4.0 AMD Motherboard

ASRock A320M-HDV R4.0 AMD Motherboard inbuilt AMD AM4 Socket with AMD Promontory B450 chipset. This Motherboard supports SATA3 6Gb/s M.2 modules and is compatible with ASRock’s U.2 Kit for installing a number of the world’s fastest U.2 PCIe Gen3 x4 SSDs.


The main component of the Motherboard

This Motherboard Supports CPU up to 105W with Vega Series Graphics in Ryzen Series APU. It has a Quick Installation Guide, Support CD, I/O Shield, 2 x SATA Data Cables, 1 x Screw for M.2 Socket. For graphical support, It has DirectX 12, Pixel Shader 5.0, Three graphics output options: D-Sub, DVI-D, and HDMI. That Motherboard can support triple Monitor, HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz, DVI-D with max. resolution up to 1920x1200 @ 60Hz, D-Sub with max. resolution up to 2048x1536 @ 60Hz, Auto lip synchronization, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required), HDCP 1.4 with DVI-D and HDMI Ports and 4K Ultra HD (UHD) playback with HDMI Port.



Motherboard Basic Info
PCI AMD Ryzen series CPUs (Summit Ridge and Pinnacle Ridge) - 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)* AMD Ryzen series CPUs (Raven Ridge) - 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)* AMD Athlon series CPUs - 1 x PCI Express 3.0 x16 Slot (PCIE2: x4 mode)* - 1 x PCI Express 2.0 x1 Slot
BIOS - 128Mb AMI UEFI Legal BIOS with GUI support - SMBIOS 2.3 support
Form Factor - Micro ATX Form Factor: 9.1-in x 8.1-in, 23.1 cm x 20.6 cm
Motherboard Basic Information
Supported CPU - AMD AM4 Socket - Digi Power design - Supports CPU up to 105W
Chipset - AMD Promontory B450
Expansion Slots
M.2 Socket - 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon 2xxGE series APU)
Graphics Specifications
Max Shared Memory - Max Shared memory supports up to 16GB - The Max shared memory 16GB requires 32GB system memory installed.
Motherboard Memory Info
Slots - 2 x DDR4 DIMM Slots - 15μ Gold Contact in DIMM Slots
Supported Memory For Ryzen Series CPUs (Raven Ridge), ECC is only supported with PRO CPUs.
Motherboard Memory Info
Type - Dual Channel DDR4 Memory Technology
Connector & Ports (MB)
HDMI - 1 x HDMI Port
USB (s) - 6 USB 3.1 Gen1 (2 Front, 4 Rear) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection) - 2 x USB 2.0 Ports (Supports ESD Protection) - 4 x USB 3.1 Gen1 Ports (Supports ESD Protection)
LAN Port (s) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
Audio - 7.1 CH HD Audio (Realtek ALC887 Audio Codec) - Supports Surge Protection - ELNA Audio Caps
Internal I/O Ports - 1 x PS/2 Mouse/Keyboard Port - 1 x D-Sub Port - 1 x DVI-D Port - 1 x HDMI Port - 2 x USB 2.0 Ports (Supports ESD Protection) - 4 x USB 3.1 Gen1 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone
D-Sub (s) - Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz - 1 x D-Sub Port
DVI-D (s) - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz - 1 x DVI-D Port
Supported Storage - 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug - 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon 2xxGE series APU) - Supports NVMe SSD as boot disks - Supports ASRock U.2 Kit
Warranty Information
Warranty 03 Years warranty

ASRock B450M-HDV R4.0 AMD Motherboard

ASRock A320M-HDV R4.0 AMD Motherboard inbuilt AMD AM4 Socket with AMD Promontory B450 chipset. This Motherboard supports SATA3 6Gb/s M.2 modules and is compatible with ASRock’s U.2 Kit for installing a number of the world’s fastest U.2 PCIe Gen3 x4 SSDs.


The main component of the Motherboard

This Motherboard Supports CPU up to 105W with Vega Series Graphics in Ryzen Series APU. It has a Quick Installation Guide, Support CD, I/O Shield, 2 x SATA Data Cables, 1 x Screw for M.2 Socket. For graphical support, It has DirectX 12, Pixel Shader 5.0, Three graphics output options: D-Sub, DVI-D, and HDMI. That Motherboard can support triple Monitor, HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz, DVI-D with max. resolution up to 1920x1200 @ 60Hz, D-Sub with max. resolution up to 2048x1536 @ 60Hz, Auto lip synchronization, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required), HDCP 1.4 with DVI-D and HDMI Ports and 4K Ultra HD (UHD) playback with HDMI Port.
