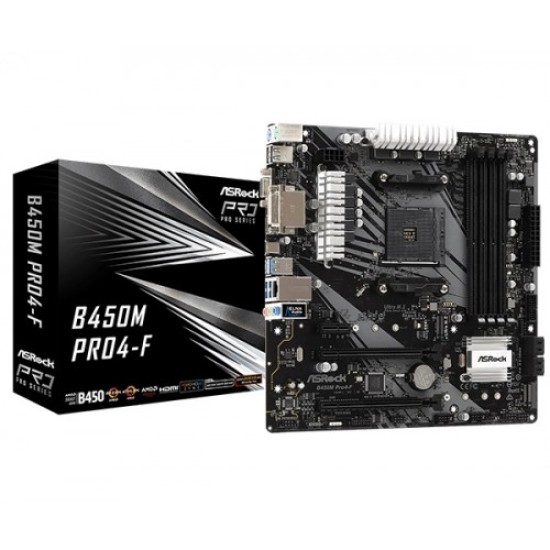

Asrock B450M Pro4-F AMD Motherboard

  • Brand:: ASRock
  • Product Code:: Asrock B450M Pro4-F
  • Status: In Stock
  • Price: 8,500Tk
  • Regular Price: 8,800Tk

Features

  • Model: Asrock B450M Pro4-F
  • AMD AM4 Socket
  • Supports DDR4 3200+ (OC)
  • Maximum Memory 64GB
  • AMD Quad CrossFireX
View More Info!
8,500Tk
Cash Discount Price

প্রোডাক্ট অর্ডারের পূর্বে সাপোর্ট থেকে স্টক এবং ডেলিভারি সম্পর্কে জেনে অর্ডার করার জন্যে অনুরোধ করা যাচ্ছে।

AMD StoreMI Technology

A powerful tool that mixes the speed of your SSD with the capacity of your hard disc into one, fast, easy-to-manage drive. SSDs are fast, but expensive, and offer minimal capacity. Mechanical hard drives boast large capacity for a coffee price but are much slower than an SSD. AMD StoreMI technology “combines” these two sorts of storage into one drive and automatically moves the info you access the foremost to the SSD, so you get the simplest of both worlds: SSD responsiveness, and mechanical hard disc capacity. you'll also spend to 2GB of RAM as a last-level cache for ultra-fast data.

Dual M.2 For SSD

Equipped with an M.2 slot that supports both SATA3 6Gb/s and PCIe Gen3 x4 Ultra M.2 interface that pushes data transfer accelerates to 32Gb/s, and is compatible with ASRock’s U.2 Kit for installing a number of the world’s fastest U.2 PCIe Gen3 x4 SSD.

Motherboard Basic Info
BIOS - 128Mb AMI UEFI Legal BIOS with multilingual GUI support - Supports "Plug and Play" - ACPI 5.1 compliance wake up events - Supports jumperfree - SMBIOS 2.3 support - DRAM Voltage multi-adjustment
Motherboard Basic Information
Supported CPU - AMD AM4 Socket - Digi Power design - 9 Power Phase design
Chipset AMD Promontory B450
Expansion Slots
M.2 Socket - 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon 2xxGE series APU) - 1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s
Graphics Specifications
Max Shared Memory 16 GB
Motherboard Memory Info
Slots 4 x DDR4 DIMM Slots
Supported Memory - AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory - AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory - AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+(OC) / 2933/2667/2400/2133 non-ECC, un-buffered memory
Maximum Memory 64GB
Motherboard Memory Info
Type Dual-Channel DDR4 Memory Technology
Connectivity
Display Port 1 x DVI-D Port
Motherboard Graphics Info
Graphics - Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU - DirectX 12, Pixel Shader 5.0 - Shared memory default 2GB. Max Shared memory supports up to 16GB. - Three graphics output options: D-Sub, DVI-D and HDMI - Supports Triple Monitor - Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required) - Supports HDCP 1.4 with DVI-D and HDMI 1.4 Ports - Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI 1.4 Ports
Connector & Ports (MB)
HDMI 1 x HDMI Port
USB (s) - 2 x USB 2.0 Ports (Supports ESD Protection) - 1 x USB 3.1 Gen1 Type-C Port (Supports ESD Protection) - 4 x USB 3.1 Gen1 Ports (Supports ESD Protection)
LAN Port (s) - PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Realtek RTL8111GR - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports LAN Cable Detection - Supports Energy Efficient Ethernet 802.3az - Supports PXE
Audio - 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec) - Premium Blu-ray Audio support - Supports Surge Protection - ELNA Audio Caps
Internal I/O Ports - 1 x PS/2 Mouse Port - 1 x PS/2 Keyboard Port - 1 x D-Sub Port - 1 x DVI-D Port - 1 x HDMI Port - 2 x USB 2.0 Ports (Supports ESD Protection) - 1 x USB 3.1 Gen1 Type-C Port (Supports ESD Protection) - 4 x USB 3.1 Gen1 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone
D-Sub (s) 1 x D-Sub Port
DVI-D (s) 1 x DVI-D Port
Supported Storage - 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug - 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon 2xxGE series APU) - 1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module
Others
Special Features ASRock Super Alloy - Premium 42A Power Choke - Sapphire Black PCB - High Density Glass Fabric PCB - 2oz Copper PCB ASRock Ultra M.2 (PCIe Gen3 x4) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop
Bundled Software Software - ASRock A-Tuning - ASRock RGB LED - ASRock XFast LAN UEFI - ASRock Full HD UEFI - ASRock Instant Flash - ASRock Easy RAID Installer
Warranty Information
Manufacturing Warranty 03 years

AMD StoreMI Technology

A powerful tool that mixes the speed of your SSD with the capacity of your hard disc into one, fast, easy-to-manage drive. SSDs are fast, but expensive, and offer minimal capacity. Mechanical hard drives boast large capacity for a coffee price but are much slower than an SSD. AMD StoreMI technology “combines” these two sorts of storage into one drive and automatically moves the info you access the foremost to the SSD, so you get the simplest of both worlds: SSD responsiveness, and mechanical hard disc capacity. you'll also spend to 2GB of RAM as a last-level cache for ultra-fast data.

Dual M.2 For SSD

Equipped with an M.2 slot that supports both SATA3 6Gb/s and PCIe Gen3 x4 Ultra M.2 interface that pushes data transfer accelerates to 32Gb/s, and is compatible with ASRock’s U.2 Kit for installing a number of the world’s fastest U.2 PCIe Gen3 x4 SSD.

There are no reviews for this product.

Write a review

Note: HTML is not translated!
    Bad           Good
