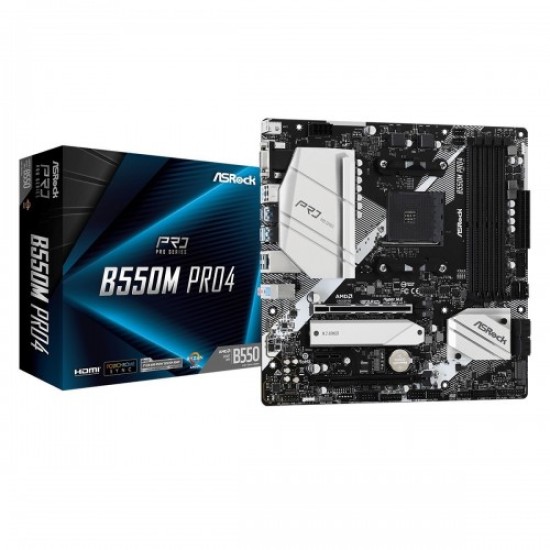

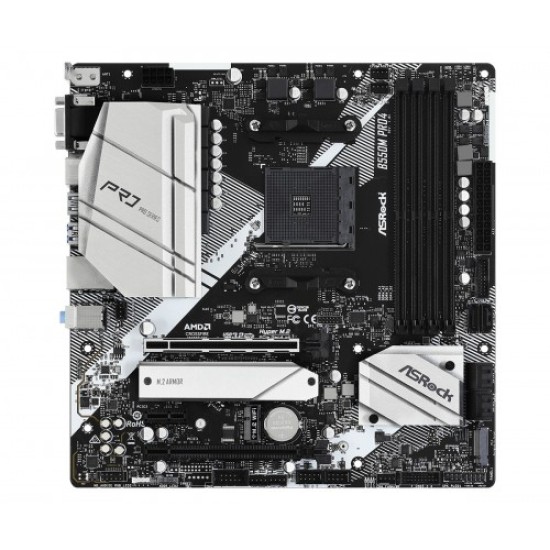

ASRock B550M Pro4 DDR4 AMD Motherboard
- Offer Price: 15,800৳
- Price: 20,790৳
- Stock: In Stock
- Brand: ASRock
- Model: ASRock B550M Pro4
- Warranty: 3Years
- Model: ASRock B550M Pro4
- Supports 3rd Gen AMD AM4 Ryzen/ Future AMD Ryzen Processors
- Supports DDR4 4733+ (OC)
- 6 SATA3, 1 Hyper M.2, 1 M.2
- 8 Power Phase Design
Specification
Motherboard Basic Info | |
PCI | - 1 x PCI Express 3.0 x1 Slot |
BIOS | - 256Mb AMI UEFI Legal BIOS with GUI support - Supports "Plug and Play" - ACPI 5.1 compliance wake up events - Supports jumperfree - SMBIOS 2.3 support - CPU, CPU VDDCR_SOC, DRAM, VPPM, 1.05V_PROM_S5, 2.5V_PROM, +1.8VSB, VDDP Voltage Multi-adjustment |
Form Factor | - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm - Solid Capacitor design - 2oz Copper PCB |
Motherboard Basic Information | |
Supported CPU | - Supports 3rd Gen AMD AM4 Ryzen™ / future AMD Ryzen™ Processors* - Digi Power design - 8 Power Phase design |
Chipset | AMD B550 |
Expansion Slots | |
M.2 Socket | - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module |
Motherboard Memory Info | |
Slots | AMD Ryzen series CPUs (Matisse) - 2 x PCI Express x16 Slots (PCIE1: Gen4x16 mode; PCIE3: Gen3 x4 mode) AMD Ryzen series APUs - 2 x PCI Express x16 Slots (PCIE1: Gen3x16 mode; PCIE3: Gen3 x4 mode) - Supports AMD Quad CrossFireX and CrossFireX |
Supported Memory | - Dual Channel DDR4 Memory Technology - 4 x DDR4 DIMM Slots - AMD Ryzen series CPUs (Matisse) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory - AMD Ryzen series APUs support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory - Supports Extreme Memory Profile (XMP) memory modules - 15μ Gold Contact in DIMM Slots |
Maximum Memory | 128GB |
Motherboard Memory Info | |
Type | DDR4 |
Connectivity | |
Display Port | 1 x DisplayPort 1.4 |
Motherboard Graphics Info | |
Graphics | - Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU - DirectX 12, Pixel Shader 5.0 - Shared memory default 2GB. Max Shared memory supports up to 16GB. - Three graphics output options: D-Sub, HDMI and DisplayPort 1.4 - Supports Triple Monitor - Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports DisplayPort 1.4 with max. resolution up to 5K (5120x2880)@120Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required) - Supports HDR (High Dynamic Range) with HDMI 2.1 - Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4 Ports - Supports 4K Ultra HD (UHD) playback with HDMI 2.1 and DisplayPort 1.4 Ports - Supports Microsoft PlayReady |
Connector & Ports (MB) | |
HDMI | 1 x HDMI Port |
USB (s) | - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection) - 4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection) - 2 x USB 2.0 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) |
LAN Port (s) | - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) |
Audio | - 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec) - Premium Blu-ray Audio support - Supports Surge Protection - PCB Isolate Shielding - Individual PCB Layers for R/L Audio Channel - Nahimic Audio |
Internal I/O Ports | - Antenna Bracket - 1 x PS/2 Mouse/Keyboard Port - 1 x D-Sub Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection) - 4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection) - 2 x USB 2.0 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone |
D-Sub (s) | 1 x D-Sub Port |
Supported Storage | 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug |
Others | |
Special Features | ASRock USB 3.2 Gen2 - ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s) - ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s) ASRock Super Alloy - XXL Aluminum Alloy Heatsink - Premium 50A Power Choke - Sapphire Black PCB - High Density Glass Fabric PCB - 2oz Copper PCB ASRock Steel Slot Gen4 ASRock Full Coverage M.2 Heatsink ASRock Hyper M.2 (PCIe Gen4x4) ASRock POST Status Checker (PSC) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop |
Warranty Information | |
Manufacturing Warranty | 03 Years Warranty |
Description
ASRock B550M Pro4 DDR4 AMD Motherboard
Features sturdy components and completely smooth power delivery to the CPU. Plus, it provides unmatched overclocking capabilities and enhanced performance with rock bottom temperature for advanced gamers also. ASRock B550M supports Dual M.2 For SSD. The Sound Tracker is that the visual indicator that points out the directions from which predominant sounds are coming. Each sound is correctly positioned in 360° on a radar for a full immersion during the sport. Whether the user is using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or maybe HDMI, Nahimic Audio offers users the foremost engaging listening experience, vibrant and rich with details. This motherboard features onboard RGB headers and an addressable RGB header that allows the motherboard to be connected to compatible LED devices like strip, CPU fans, coolers, chassis, and lots of more. size aluminum alloy heat sinks that effectively deduct heat from the MOSFET and chipset in order that the user's whole system may perform more stable. Also, 2oz Copper PCB delivers lower temperatures and better energy efficiency for overclocking. High-Density Glass Fabric PCB design that diminishes the gaps between the PCB layers to guard the motherboard from electrical shorts caused by humidity. full of a D-Sub + DisplayPort + HDMI combo. Plus the HDMI port supports 4K resolution. Some sensitive digital components on the motherboard are susceptible to power surges, the excessive current may cause the system to malfunction immediately. ASRock Full Spike Protection includes various technologies to stop the motherboard’s components from being damaged by these unexpected voltage spikes. ASRock Live Update & APP Shop is meant for user's convenience. Provides various apps and support software for users to download.
This exclusive ASRock B550M Pro4 comes with 03 years of warranty.
