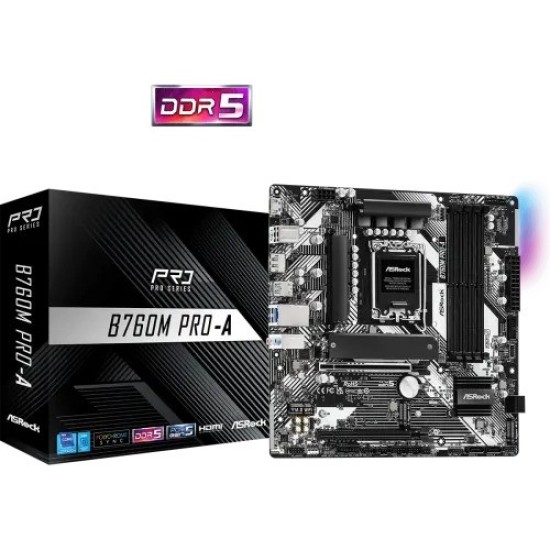

ASRock B760M Pro-A DDR5 Micro ATX Motherboard

ASRock B760M Pro-A DDR5 Micro ATX Motherboard
Save: 1690৳
ASRock B760M Pro-A DDR5 Micro ATX Motherboard
  • Stock: In Stock
  • Price:  16,900৳
  • Regular Price:  18,590৳
  • Product id:  4116
  • Brand: ASRock
  • Model: B760M Pro-A
Based on 0 reviews. - Write a review
Payment Option
Add to Cart
Buy Now Add to cart
Add to Wish List Add to Compare
  • Model: B760M Pro-A
  • Supported CPU: 14th, 13th & 12th Gen Intel Core Processors (LGA1700)
  • Supported RAM: 4x DDR5, Max 256GB 7200+(OC)
  • Graphics Output: 1x HDMI, 1x DisplayPort
  • Features: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
View more info
Specification
Motherboard Basic Info
BIOS 128Mb AMI UEFI Legal BIOS with GUI support
Form Factor Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
Motherboard Basic Information
Supported CPU Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700) Supports Intel Hybrid Technology Supports Intel Turbo Boost Max 3.0 Technology Supports Intel Thermal Velocity Boost (TVB) Supports Intel Adaptive Boost Technology (ABT)
Chipset Intel B760
Expansion Slots
PCI CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode Chipset: - 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT) - Supports AMD CrossFire
Memory Specifications
Type DDR5
Motherboard Memory Info
Slots 4
Supported Memory Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC) Max. capacity of system memory: 256GB Supports Intel® Extreme Memory Profile (XMP) 3.0
Maximum Memory 256GB
Connectivity
Display Port 1x DisplayPort
HDMI 1x HDMI
USB Chipset: - 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front) - 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front) - 6 x USB 2.0 (2 Rear, 4 Front) * All USB ports support ESD Protection
Motherboard Graphics Info
Graphics - Intel Xe Graphics Architecture (Gen 12) - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz * Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors that are GPU integrated.
Connector & Ports (MB)
LAN Port (s) - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User-Friendly UI - Visual Network Usage Statistics - Optimized Default Settings for Game, Browser, and Streaming Modes - User Customized Priority Control
Audio 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Internal I/O Ports - 2 x Antenna Mounting Points - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen1 Type-C Port - 3 x USB 3.2 Gen1 Type-A Ports - 2 x USB 2.0 Ports - 1 x RJ-45 LAN Port - HD Audio Jacks: Line in / Front Speaker / Microphone Connector - 1 x Chassis Intrusion and Speaker Header - 1 x RGB LED Header* - 3 x Addressable LED Headers** - 1 x CPU Fan Connector (4-pin)*** - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen1 Header
Supported Storage CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors * Supports Intel Volume Management Device (VMD) Supports NVMe SSD as boot disks
Others
Special Features Superb Productivity - PCIe Gen5 (Graphics) - Dual Channel DDR5 Rock-Solid Durability - 7+1+1 Power Phase, Dr.MOS for VCore+GT Ultrafast Connectivity - 2.5G LAN EZ Update - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker
Bundled Software Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash - ASRock Easy RAID Installer
Warranty Information
Manufacturing Warranty 3 years
Description

ASRock B760M Pro-A DDR5 Micro ATX Motherboard


The ASRock B760M Pro-A DDR5 Micro ATX motherboard is a powerful and versatile platform designed to support the latest Intel Core processors, including the 14th, 13th, and 12th generations with the LGA1700 socket. It features a robust 7+1+1 power phase design, utilizing Dr.MOS for efficient VCore and GT performance. With four DDR5 DIMM slots, it supports dual-channel memory with speeds up to 7200+ MHz when overclocked, providing exceptional performance for gaming, content creation, and multitasking. This motherboard is equipped with a PCIe 5.0 x16 slot for the latest high-performance graphics cards, as well as additional PCIe 3.0 x16 and M.2 Key E slots for WiFi expansion. For graphics output, the board offers HDMI and DisplayPort options. Audio is powered by the Realtek ALC897 7.1-channel HD audio codec, ensuring crystal-clear sound quality. Storage and connectivity are well catered for, with four SATA3 ports and three Hyper M.2 slots (PCIe Gen4x4) for fast storage solutions. USB connectivity is abundant, featuring two USB 3.2 Gen1 Type-C ports (one rear, one front), five USB 3.2 Gen1 Type-A ports (three rear, two front), and six USB 2.0 ports (two rear, four front). Networking is handled by the Dragon 2.5G LAN, providing high-speed internet connectivity. The motherboard also supports ASRock's Auto Driver Installer, simplifying the setup process for users.


Buy ASRock B760M Pro-A DDR5 Micro ATX Motherboard from Sell Tech

In Bangladesh, you can get the original ASRock B760M Pro-A DDR5 Micro ATX Motherboard From Sell Tech. We have a large collection of the latest ASRock Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Sell Tech Shop to get yours at the lowest price. The ASRock B760M Pro-A DDR5 Micro ATX Motherboard comes with 3 years warranty.

Review

Write a review

Note: HTML is not translated!
Bad Good

What is the price of ASRock B760M Pro-A DDR5 Micro ATX Motherboard in Bangladesh?

The latest price of ASRock B760M Pro-A DDR5 Micro ATX Motherboard in Bangladesh is 16,900৳ . You can buy the ASRock B760M Pro-A DDR5 Micro ATX Motherboard at best price from our website or visit any of our showrooms.
