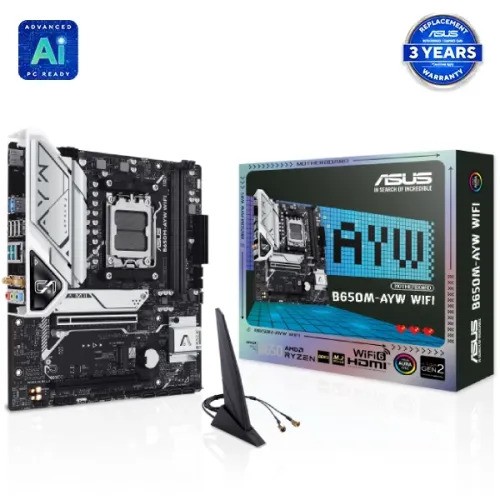

ASUS B650M-AYW WIFI AMD AM5 DDR5 Micro-ATX Motherboard

Super Offer save 2030 ৳

Offer Price: 19,400৳
Price: 21,430৳
Stock: In Stock
Brand: Asus
Model: B650M-AYW WIFI

Featured Description:

Model: B650M-AYW WIFI

Supported CPU: Ryzen 9000 & 8000 & 7000 Series Processors for Socket AM5

Supported Memory: 2x DIMM slots, Max. 96GB DDR5, Up to 8000+MT/s (OC)

Graphics Output: 1 x HDMI port, Storage: 2 x M.2 slots and 4 x SATA 6Gb/s ports

Features: 1 x 2.5Gb LAN, WiFi 6, PCIe 5.0 slots, Two-Way AI Noise Cancelation

Based on 0 reviews. - Write a review

19,400৳

21,430৳

Add to Cart

Buy Now Ask Question

WishList Compare

👉 যেকোনো পণ্য অনলাইনে অর্ডার করতে হলে আংশিক মূল্য অগ্রিম প্রদান বাধ্যতামূলক। আপনি বাংলাদেশের যেকোনো প্রান্ত থেকে ঘরে বসেই আমাদের পণ্য অর্ডার করতে পারবেন। এছাড়াও, চাইলে সরাসরি আমাদের শোরুম পরিদর্শন করেও প্রোডাক্ট ক্রয় করতে পারবেন।

Specification

Motherboard Basic Info
Supported CPU	AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Chipset	AMD B650 Chipset
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Form Factor	micro-ATX Form Factor 9.6 inch x 8.7 inch ( 24.4 cm x 22.1 cm )
Expansion Slots
M.2 Socket	Total supports 2 x M.2 slots AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)
Expansion Slots
PCI	AMD Ryzen 9000 & 7000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) AMD B650 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode)
Memory Specifications
Type	DDR5
Motherboard Memory Info
Supported Memory	p to 8000+MT/s (OC) with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO) OptiMem II
Maximum Memory	96GB
Motherboard Graphics Info
Graphics	1 x HDMI port * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. ** Supports 4K@60Hz as specified in HDMI 2.1.
Connector & Ports (MB)
HDMI	1 x HDMI
USB (s)	Rear USB (Total 8 ports) 2 x USB 10Gbps ports (2 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 5Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Internal I/O Ports	Back Panel I/O Ports 2 x USB 10Gbps ports (2 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x HDMI™ port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x 10-1 pin System Panel header
Supported Storage	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)** AMD B650 Chipset 4 x SATA 6Gb/s ports
Others
Special Features	ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - Safeslot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design Aura Sync - Addressable Gen 2 headers
Bundled Software	ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Warranty Information
Manufacturing Warranty	3 Years

Description

The ASUS B650M-AYW WIFI AMD AM5 DDR5 Micro-ATX Motherboard is engineered to deliver next-gen performance for gamers, content creators, and power users alike. Designed for the latest AMD Ryzen 7000 series processors, this motherboard features the powerful AMD B650 chipset, ensuring robust performance and compatibility with cutting-edge hardware technologies.

One of the standout features of the ASUS B650M-AYW is its support for DDR5 memory, which allows users to experience faster data transfer rates, lower latency, and improved overall system efficiency. The motherboard supports dual-channel DDR5 RAM up to 6400 MHz (OC), ensuring seamless multitasking and smooth performance across demanding applications and games.

Connectivity is another strong suit of this Micro-ATX board. It comes equipped with built-in Wi-Fi 6 and Bluetooth 5.2, offering high-speed, stable wireless internet connectivity and easy pairing with a wide range of devices. The integrated Realtek 2.5Gb LAN ensures fast and reliable wired network performance, ideal for online gaming and heavy downloads.

For storage, the ASUS B650M-AYW includes dual M.2 slots supporting PCIe 5.0 and PCIe 4.0, along with four SATA ports. These options provide ample room for fast SSDs and traditional storage drives. The PCIe 4.0 x16 slot ensures full compatibility with the latest GPUs, giving gamers and creators access to top-tier performance.

This motherboard also features ASUS-exclusive technologies like AI Cooling, Fan Xpert 2+, and 5X Protection III, ensuring thermal efficiency, hardware safety, and overall system stability. The robust 6-layer PCB design and premium capacitors help maintain power efficiency and durability, even under heavy loads.

The B650M-AYW's BIOS interface is user-friendly, with EZ Mode and Advanced Mode options, allowing users of all skill levels to tweak system settings easily. Its ARGB header support makes it ideal for users who want to build a stylish rig with customizable RGB lighting.

Designed with modern aesthetics and function in mind, the ASUS B650M-AYW WIFI is perfect for compact PC builds without compromising on power and features. Whether you’re upgrading or building a new AMD AM5 platform PC, this board offers an excellent balance of performance, reliability, and connectivity.

Key Features:

- AMD B650 chipset with AM5 socket

[19:29, 13/07/2025] ChatGPT: - Supports AMD Ryzen 7000 series CPUs

- DDR5 RAM support up to 128GB (OC)

- PCIe 4.0 x16 for GPUs, dual M.2 for storage

- Built-in Wi-Fi 6 and Bluetooth 5.2

- Realtek 2.5G LAN for ultra-fast networking

- Fan Xpert 2+, AI Cooling, 5X Protection III

- Compact Micro-ATX form factor

If you’re looking for a future-ready, compact, and powerful AMD motherboard, the ASUS B650M-AYW WIFI Micro-ATX is a smart choice that ensures long-term reliability and high-end performance.
