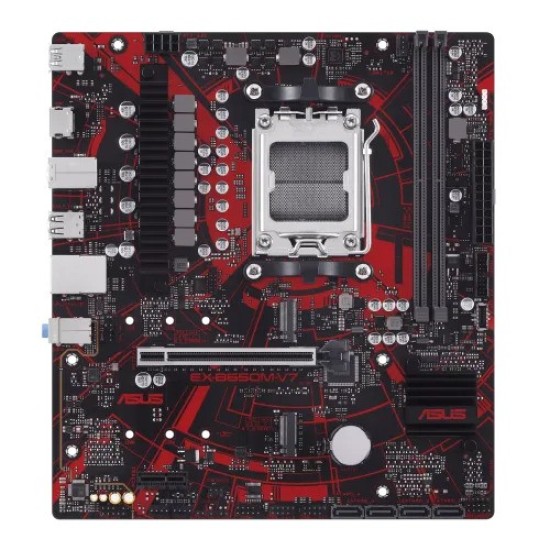

Asus EX-B650M-V7 AM5 micro-ATX Motherboard

11.11 OFFER save 1070 ৳

Offer Price: 16,400৳
Price: 17,470৳
Stock: In Stock
Brand: Asus
Model: EX-B650M-V7

Featured Description:

Model: EX-B650M-V7

Supported CPU: Ryzen 8000 / 7000 Series Processors for Socket AM5

Supported RAM: 2x DDR5, up to 192GB, 7600+(OC)

Graphics Output: 1x HDMI

Features: Realtek 2.5Gb Ethernet

Based on 0 reviews. - Write a review

16,400৳

17,470৳

Add to Cart

Buy Now Ask Question

WishList Compare

👉 যেকোনো পণ্য অনলাইনে অর্ডার করতে হলে আংশিক মূল্য অগ্রিম প্রদান বাধ্যতামূলক। আপনি বাংলাদেশের যেকোনো প্রান্ত থেকে ঘরে বসেই আমাদের পণ্য অর্ডার করতে পারবেন। এছাড়াও, চাইলে সরাসরি আমাদের শোরুম পরিদর্শন করেও প্রোডাক্ট ক্রয় করতে পারবেন।

Specification

Motherboard Basic Info
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Form Factor	micro-ATX Form Factor 9.6 inch x 8.7 inch ( 24.4 cm x 22.1 cm )
Motherboard Basic Information
Supported CPU	AMD Socket AM5 for AMD Ryzen 8000 / 7000 Series Desktop Processors
Chipset	AMD B650
Expansion Slots
PCI	AMD Ryzen 7000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD B650 Chipset 1 x PCIe 4.0 x1 slot
Memory Specifications
Type	DDR5
Motherboard Memory Info
Supported Memory	8000+ (OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO) OptiMem II
Maximum Memory	96GB
Motherboard Graphics Info
Graphics	1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1.)
Connector & Ports (MB)
HDMI	1x HDMI
USB (s)	Rear USB (Total 8 ports) 2 x USB 3.2 Gen 2 (10G) ports (2 x Type-A) 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Internal I/O Ports	Back Panel I/O Ports 2 x USB 3.2 Gen 2 (10G) ports (2 x Type-A) 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x HDMI port 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port Internal I/O Connectors Fan and Cooling-related 1 x 4-pin CPU Fan header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C ) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header
Supported Storage	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen™ 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD B650 Chipset 4 x SATA 6Gb/s ports
Others
Special Features	ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - VRM heatsink design Non-stop Action - Lightning Boot Non-stop Challenger - ASUS iCafe labs certified Non-stop Durability - Luminous anti-moisture coating
Warranty Information
Manufacturing Warranty	3 Years

Description

The ASUS EX-B650M-V7 AM5 Micro-ATX Motherboard is built with military-grade durability, stable performance, and modern connectivity in mind—perfect for gamers, professionals, and system builders seeking reliability and power. Powered by the AMD B650 chipset and supporting the latest AMD Ryzen 7000 series processors, this motherboard provides next-generation performance in a compact micro-ATX form factor.

Built on the AM5 socket, the EX-B650M-V7 delivers support for cutting-edge features such as DDR5 memory, PCIe 5.0, and NVMe M.2 SSDs. With dual DDR5 DIMM slots, users can install up to 96GB of ultra-fast RAM, improving multitasking, gaming, and productivity workloads.

This motherboard includes a PCIe 5.0 x16 slot for the latest GPUs, ensuring high frame rates and smooth graphics rendering. For lightning-fast storage, the board offers two M.2 slots, including one PCIe 5.0 and one PCIe 4.0—allowing for faster boot times, quicker file transfers, and seamless data access.

Connectivity is robust with USB 3.2 Gen 2 ports, HDMI and DisplayPort outputs for integrated graphics, Gigabit Ethernet, and support for a wide range of peripherals. Whether for content creation, media editing, or daily use, the EX-B650M-V7 delivers consistent and high-speed connectivity.

The ASUS Expedition series emphasizes long-term durability with SafeSlot Core+ reinforced PCIe slots, ESD protection, and stainless steel I/O shields. Designed for 24/7 stability, this board undergoes extensive testing, including compatibility and burn-in tests, ensuring maximum reliability even in non-stop operations like internet cafes or LAN centers

Thermal management is enhanced with multiple fan headers and ASUS’s intuitive Fan Xpert software, allowing users to control fan speeds based on temperature sensors for optimal cooling and quiet operation.

The BIOS is user-friendly with ASUS UEFI BIOS, offering both EZ Mode for beginners and Advanced Mode for experienced tweakers. BIOS FlashBack support ensures easy updates without needing a CPU or RAM installed—future-proofing your system setup.

Visually, the motherboard features a sleek black PCB with red accents, aligning with ASUS’s Expedition design language, adding a gamer-ready look to your PC build. Compact yet powerful, this Micro-ATX motherboard is compatible with most cases, making it an ideal choice for small and mid-sized PC builds.

Whether you’re a budget-conscious gamer, a creative professional, or simply need a reliable, modern motherboard, the ASUS EX-B650M-V7 AM5 Micro-ATX delivers outstanding value, performance, and durability in every aspect.
