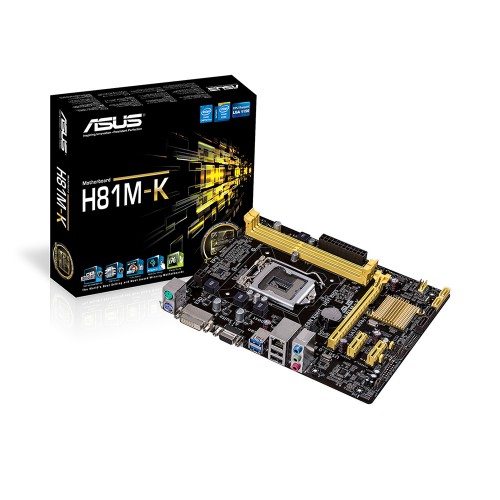

Asus H81M-K 4th Gen Motherboard
- Offer Price: 9,300৳
- Price: 10,300৳
- Stock: In Stock
- Brand: Asus
- Model: H81M-K
Specification
Motherboard Basic Info | |
BIOS | 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information |
Motherboard Basic Information | |
Supported CPU | Intel Socket 1150 for 4th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors Supports Intel 22 nm CPU Supports Intel Turbo Boost Technology 2.0 |
Chipset | Intel H81 |
Expansion Slots | |
PCI | 1 x PCIe x16 2 x PCIe 2.0 x1 |
Memory Specifications | |
Type | DDR3 |
Graphics Specifications | |
Max Shared Memory | 1024 MB |
Motherboard Memory Info | |
Supported Memory | 1600/1333/1066 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) |
Motherboard Graphics Info | |
Graphics | Integrated Graphics Processor Multi-VGA output support : DVI/RGB ports - Supports DVI with max. resolution 1920 x 1200 @ 60 Hz - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider |
Connector & Ports (MB) | |
USB (s) | Intel H81 chipset : 2 x USB 3.1 Gen 1 port(s) (2 at back panel, blue) Intel H81 chipset : 6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board) |
Internal I/O Ports | 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 2 x SATA 6Gb/s connector(s) 2 x SATA 3Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Internal speaker connector(s) 1 x Clear CMOS jumper(s) |
Supported Storage | Intel H81 chipset : 2 x SATA 6Gb/s port(s), yellow, 2 x SATA 3Gb/s port(s), dark brown, Supports Intel Rapid Start Technology, Intel Smart Connect Technology |
Warranty Information | |
Manufacturing Warranty | 3 Years |
Description
Asus H81M-K 4th Gen Motherboard
The Asus H81M-K 4th Gen Motherboard comes with the Intel H81 chipset, which is a single-chipset design that supports socket LGA1150 4th generation Intel Core i7/ i5/ i3/ Pentium/ Celeron processors. This motherboard supports Intel 4th generation Core i7/ i5/ i3/ Pentium/ Celeron processors in the LGA1150 package, with iGPU, memory, and PCI Runner regulators integrated to support onboard plates affair with devoted chipsets, 2- 2-channel (2 DIMM) DDR3 memory, and 16 PCI Runner lanes. It natively supports up to two USB 3.0 anchorages for over to ten times faster transfer rates than USB 2.0. Also, the Intel ® H81 chipset also supports iGPU functionality, letting druggies enjoy the rearmost Intel intertwined plates performance. ASUS USB 3.0 Boost technology supports UASP (USB Attached SCSI Protocol) in Windows 8. With USB3.0 Boost technology, a USB device's transmission speed is significantly increased up to 170, adding to formerly fast USB3.0 performance. ASUS software automatically accelerates data rates for compatible USB 3.0 peripherals without any stoner commerce. The Asus H81M-K comes with 3 year warranty.
