| Motherboard Basic Info | |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP,WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control |
| Motherboard Basic Information | |
| Supported CPU | AMD AM4 Socket for 3rd/ 2nd/ 1st Gen AMD Ryzen /2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics/ 7th Generation A-series/ Athlon X4 Processors |
| Chipset | AMD A320 |
| Expansion Slots | |
| PCI | AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors- 1 x PCIe 3.0/2.0 x16 (x16 mode) AMD Ryzen™ with Radeon™ Vega Graphics /7th Generation A-Series/Athlon X4 Processors - 1 x PCIe 3.0/2.0 x16 (x8 mode) AMD Athlon™ with Radeon™ Vega Graphics Processors- 1 x PCIe 3.0/2.0 x16 (x4 mode) AMD A320 chipset- 2 x PCIe 2.0 x1 |
| Expansion Slots | |
| M.2 Socket | 1 x M.2 Socket 3 |
| Memory Specifications | |
| Type | DDR4 |
| Graphics Specifications | |
| Max Shared Memory | 2048 MB |
| Motherboard Memory Info | |
| Supported Memory | 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors 3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory AMD 7th Generation A-Series/Athlon X4 Processors 2 x DIMM, Max. 32GB, DDR4 2400/2133 MHz Un-buffered Memory Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU. |
| Motherboard Graphics Info | |
| Graphics | Multi-VGA output support : HDMI/RGB ports Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz Supports RGB with max. resolution 1920 x 1200 @ 60 Hz |
| Connector & Ports (MB) | |
| HDMI | 1 x HDMI |
| USB (s) | 4 x USB 3.1 Gen 1 (blue) 2 x USB 2.0 |
| Internal I/O Ports | 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x Speaker connector |
| Supported Storage | AMD A320 chipset : 4 x SATA 6Gb/s port(s), gray, Support Raid 0, 1, 10 AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) AMD 7th Generation A-Series/ Athlon™ X4 Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode) AMD Athlon™ with Radeon™ Vega Graphics Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode) |
| Warranty Information | |
| Manufacturing Warranty | 03 years |

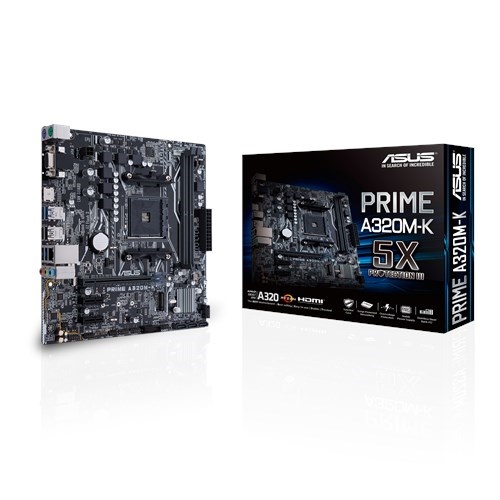

Asus Prime A320M- K AMD AM4 uATX motherboard with LED lighting, DDR42400/2133 MHzUn-buffered Memory, 32Gb/ sM. 2, HDMI, SATA 6Gb/ s, USB3.0. 5X Protection III Multiple tackle safeguards for all- round protection LED illumination Lighting control for audio trace paths. NativeM. 2 Lightning-fast storehouse pets. One- stop controls Media- accredited UEFI BIOS with EZ Flash 3
The Asus Prime A320M-K AMD AM4 uATX Motherboard is now. You can buy the Asus Prime A320M-K AMD AM4 uATX Motherboard at the best price from our website or visit any of our showrooms When the product is available.
