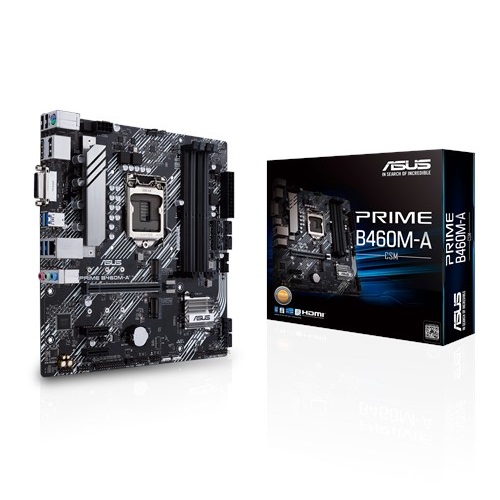

Asus Prime B460M-A Intel 10th Gen Micro-ATX Motherboard

- Price: 0৳
- Stock: Out Of Stock
- Brand: Asus
- Model: Asus Prime B460M-A
Specification
Motherboard Basic Info | |
BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
Form Factor | mATX Form Factor 9.6 inch x 9.2 inch ( 24.4 cm x 23.4 cm ) |
Motherboard Basic Information | |
Supported CPU | Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
Chipset | Intel B460 |
Expansion Slots | |
PCI | Intel 10th Gen Processors 1 x PCIe 3.0/2.0 x16 (x16 mode) Intel B460 Chipset 2 x PCIe 3.0/2.0 x1 |
Expansion Slots | |
M.2 Socket | 1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode) 1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) |
Motherboard Memory Info | |
Slots | 4 x DIMM |
Supported Memory | 4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Supports Intel Extreme Memory Profile (XMP) OptiMem |
Maximum Memory | 128GB |
Motherboard Graphics Info | |
Graphics | Integrated Graphics Processor- Intel® UHD Graphics support 1 x DisplayPort 1.4 1 x HDMI 1.4b 1 x DVI-D |
Connector & Ports (MB) | |
HDMI | 1 x HDMI 1.4b |
USB (s) | Rear USB Port ( Total 6 ) 4 x USB 3.2 Gen 1 (up to 5Gbps) port(s)(4 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 (up to 5Gbps) port(s) 4 x USB 2.0 port(s) |
Audio | Realtek ALC887 7.1-Channel High Definition Audio CODEC - Supports: Jack-detection, up to 24-Bit/192kHz playback Audio Feature : - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors |
Internal I/O Ports | 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x CPU OPT Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x AAFP connector 2 x Aura RGB Strip Header(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 2 x M.2 Socket 3 1 x LPT header 6 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x System panel(s) (Chassis intrusion header is inbuilt) 1 x Clear CMOS jumper(s) 1 x COM port header |
Supported Storage | Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports Intel B460 Chipset : 1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode) 1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel Rapid Storage Technology supports Intel Optane Memory Ready |
Warranty Information | |
Manufacturing Warranty | 3 Years |
Description
Asus Prime B460M-A Intel 10th wordMicro-ATX Motherboard
ASUS Prime series is consummately finagled to unleash the full eventuality of 10th Gen Intel ® Core processors. Boasting a robust power design, comprehensive cooling results and intelligent tuning options, Prime B460 series motherboards give diurnal druggies and DIY PC builders a range of performance tuning options via included software and tackle. Comprehensive controls form the foundation of the ASUS Prime series. The Prime B460 motherboard packs flexible tools to tune every aspect of your system, enabling you to tweak performance settings to impeccably match the way you work – maximizing your productivity. Prime B460 series is finagled with multiple onboard heatsinks and an array of cold-blooded addict heads to insure your carriage stays cool and stable under violent workloads. THE Prime B460 Series features comprehensive cooling controls that are configurable via Addict Xpert 2 software or via the UEFI BIOS. Prime B460 series is erected to handle the fresh cores and increased bandwidth of 10th Generation Intel Core processors. A B460 motherboard provides all the fundamentals to boost diurnal productivity, so your system will be ready for action with stable power, intuitive cooling, and flexible transfer options. Variations to the motherboard's trace routing give the rearmost Intel processors with unrestricted access to memory bandwidth. ASUS OptiMem technology precisely maps memory signal pathways across different PCB layers to reduce vias and adds shielding zones that significantly reduce crosstalk. Prime B460 series adds the nuanced details that ameliorate every experience, from exclusive codecs that give pristine audio quality to intuitive RGB lighting controls that let you customize your system to produce a uniquely particular look.
