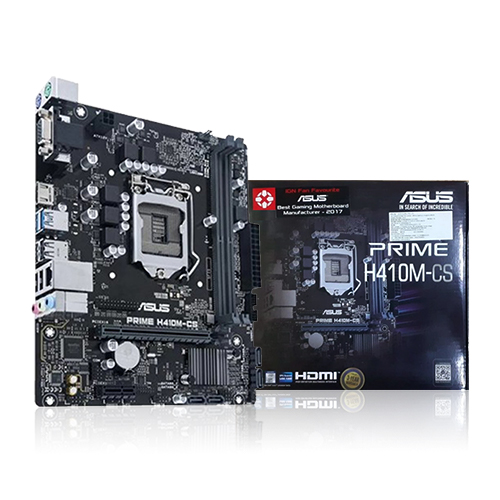

Asus Prime H410M-CS Micro ATX Motherboard
- Price: 0৳
- Stock: Out Of Stock
- Brand: Asus
- Model: Asus Prime H410M-CS
Specification
Motherboard Basic Info | |
BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
Form Factor | mATX Form Factor: 8.9 inch x 8.0 inch |
Motherboard Basic Information | |
Supported CPU | Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 |
Chipset | Intel H410 |
Expansion Slots | |
M.2 Socket | NO |
Expansion Slots | |
PCI | NO |
Memory Specifications | |
Type | Non-ECC, Un-buffered Memory |
Motherboard Memory Info | |
Slots | 2 x DIMM |
Supported Memory | 10th Gen Intel Core i9/i7 CPUs support: 2933/ 2800/ 2666/ 2400/ 2133 Intel Core i5/i3/Pentium/Celeron processors: 2933/ 2800/ 2666/ 2400/ 2133 MHz Supports Intel Extreme Memory Profile (XMP) OptiMem |
Maximum Memory | 64GB |
Motherboard Graphics Info | |
Graphics | Integrated Graphics Processor 1 x D-Sub 1 x HDMI 1.4b |
Connector & Ports (MB) | |
HDMI | 1 x HDMI 1.4b |
USB (s) | Rear USB Port ( Total 4 ) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s) 4 x USB 2.0 port(s) |
LAN Port (s) | Realtek RTL8111H |
Internal I/O Ports | 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode) 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x Speaker connector |
Supported Storage | Total supports 1 x M.2 slots and 4 x SATA 6Gb/s ports Intel® H410 Chipset : 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode) 4 x SATA 6Gb/s port(s) |
Warranty Information | |
Manufacturing Warranty | 3 Years |
Description
Asus Prime H410M-CS DDR4 10th Gen Intel 1200 Socket Micro ATX Motherboard
ASUS Prime series is consummately finagled to unleash the full eventuality of 10th Gen Intel Core processors. Boasting a robust power design, comprehensive cooling results and intelligent tuning options, Prime H410 series motherboards give diurnal druggies and DIY PC builders a range of performance tuning options via included software and tackle. Comprehensive controls form the foundation of the ASUS Prime series. The Prime H410 motherboard packs flexible tools to tune every aspect of your system, enabling you to tweak performance settings to impeccably match the way you work – maximizing your productivity. Prime H410 series is finagled with an array of cold-blooded addict heads to insure your carriage stays cool and stable under violent workloads. Prime H410 series is erected to handle the fresh cores and increased bandwidth of 10th Generation Intel Core processors. An H410 motherboard provides all the fundamentals to boost diurnal productivity, so your system will be ready for action with stable power, intuitive cooling, and flexible transfer options. Prime H410 series add the nuanced details that ameliorate every experience, exclusive codecs that give pristine audio quality let you customize your system to produce a uniquely particular look. Intelligent design and decoration tackle produce audio quality, unlike anything you've ever endured. Separates analog/ digital signal disciplines, significantly reducing multi-lateral hindrance. Ensures minimum crosstalk between audio paths. The Premium corridor gives an immersive sound hand, with exceptional dedication.
