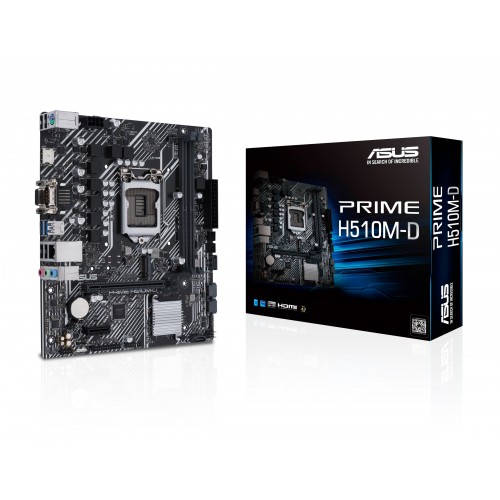

ASUS PRIME H510M-D Intel 10th and 11th Gen Micro ATX Motherboard

ASUS PRIME H510M-D Intel 10th and 11th Gen Micro ATX Motherboard
Out Of Stock
ASUS PRIME H510M-D Intel 10th and 11th Gen Micro ATX Motherboard
  • Price: 0৳
  • Stock: Out Of Stock
  • Brand: Asus
  • Model: PRIME H510M-D
Featured Description:
  • Model: PRIME H510M-D
  • Intel LGA 1200 socket: 11th and 10th Gen Processors
  • PCIe 4.0, 32Gbps M.2, 1Gb Ethernet & USB 3.2 Gen 1
  • 5X Protection III, LPT header & RGB header
  • PCH heatsink and Fan Xpert
Based on 0 reviews. - Write a review
0৳
Add to Cart
Buy Now Ask Question
WishList Compare
অনলাইনে অর্ডার নিশ্চিত করতে অর্ডার করার সময় আংশিক অগ্রিম টাকা পরিশোধ করতে হবে । অর্ডার করার পূর্বে 01759546431 নাম্বারে কল দিয়ে পণ্য এর স্টক ও ডেলিভারি সম্পর্কে জেনে নেওয়ার জন্য অনুরোধ করা যাচ্ছে ; প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ার কারনে যেকোনো সময় মূল্য পরিবর্তন হতে পারে । ধন্যবাদ

Specification

Motherboard Basic Info
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Form Factor microATX 22.6cm x 20.3cm
Motherboard Basic Information
Supported CPU Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset Intel H510 Chipset
Expansion Slots
PCI 1 x PCIe 4.0/3.0 x16 slot 1 x PCIe 3.0 x1 slot
Expansion Slots
M.2 Socket Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
Memory Specifications
Type 2DDR4 (Dual Channel)
Motherboard Memory Info
Supported Memory 64GB
Maximum Memory DDR4 3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture
Motherboard Graphics Info
Graphics 1 x D-Sub 1 x HDMI 2.0
Connector & Ports (MB)
HDMI 1 x HDMI 2.0
USB (s) Rear USB:Total 6 ports 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB:Total 4 ports 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports
Audio Realtek ALC897/887 7.1 Surround Sound High Definition Audio CODEC: - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features: - Audio Shielding - Premium Japanese audio capacitors - Dedicated audio PCB layers (A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.)
Internal I/O Ports Fan and Cooling related: 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related: 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related: 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB: 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports Miscellaneous: 1 x RGB header 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x LPT header 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header Back Panel I/O Ports: 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x D-Sub port 1 x HDMI port 1 x Intel I219-V 1Gb Ethernet port 3 x Audio jacks 1 x COM port 1 x PS/2 Keyboard/Mouse combo port
Supported Storage M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports
Warranty Information
Manufacturing Warranty 03 Years Warranty

Description

ASUS PRIME H510M-D Intel 10th and 11th Gen Micro ATX Motherboard

 ASUS Prime series motherboards are consummately finagled to unleash the full eventuality and supports 11th and 10th Generation Intel processors. Boasting a robust power design, comprehensive cooling results and intelligent tuning options, High H510M-D provides diurnal druggies and DIY PC builders a range of performance tuning options via intuitive software and firmware features.



 This motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to impeccably match the way you work, to maximize productivity. ASUS PRIME H510M-D Motherboard featured with Intel LGA 1200 socket Ready for 11th and 10th Gen Intel Processors, Ultrafast connectivity PCIe4.0, 32 GbpsM. 2 niche, Intel 1 Gb Ethernet and USB3.2 Gen 1, Comprehensive cooling PCH heatsink and Addict Xpert, 5X Protection III Multiple tackle safeguards for all- roundprotection.The ASUS Prime H510 series is finagled with an array of cold-blooded addict heads to insure your carriage stays cool and stable under violent workloads and also features with comprehensive cooling controls that are configurable via Addict Xpert software or via the UEFI BIOS.


 ASUS H510 series motherboards give all the fundamentals to boost diurnal productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options. This rearmost ASUS PRIME H510M-D Intel 10th and 11th Gen Micro ATX Motherboard comes with 03 Times Warranty.
