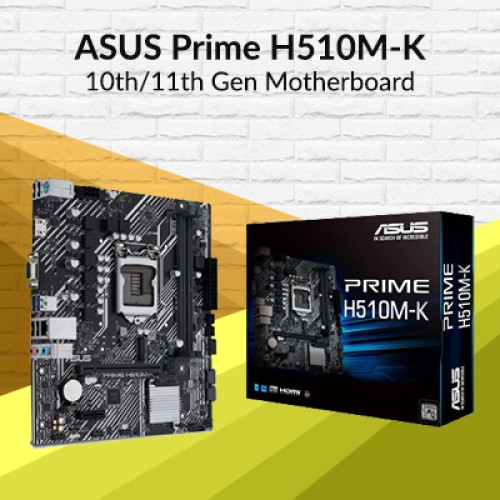

Asus Prime H510M-K 10th/ 11th Gen Motherboard

Asus Prime H510M-K 10th/ 11th Gen Motherboard
Out Of Stock
Asus Prime H510M-K 10th/ 11th Gen Motherboard
  • Stock: Out Of Stock
  • Product id:  1448
  • Brand: Asus
  • Model: Prime H510M-K
Based on 1 reviews. - Write a review
  • Model: Prime H510M-K
  • Ready for 11th and 10th Gen
  • 5X Protection III
  • Ultrafast Connectivity
View more info
Specification
Motherboard Basic Info
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Form Factor microATX: 22.6cm x 20.3cm
Motherboard Basic Information
Supported CPU Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset Intel H510
Expansion Slots
PCI Intel 11th & 10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot - Intel 11th Gen processors support PCIe 4.0 x16 - Intel 10th Gen processors support PCIe 3.0 x16 Intel H510 Chipset 1 x PCIe 3.0 x1 slot
Expansion Slots
M.2 Socket Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
Memory Specifications
Type DDR4
Motherboard Memory Info
Slots 2 x DIMM
Supported Memory DDR4 3200(OC)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memork Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP)
Maximum Memory Max. 64GB
Motherboard Graphics Info
Graphics 1 x D-Sub 1 x HDMI 1.4 / 2.0
Connector & Ports (MB)
HDMI 1 x HDMI 1.4
USB (s) Rear USB: Total 6 ports 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB: Total 4 ports 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports
LAN Port (s) 1 x Intel I219-V 1Gb Ethernet ASUS LANGuard
Audio ALC887/ 897 Realtek ALC897/ 887 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Dedicated audio PCB layers
Internal I/O Ports Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports Miscellaneous 1 x RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header
Supported Storage Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel H510 Chipset M.2 slot (Key M), type 2242/ 2260/ 2280 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports
Others
Special Features ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot ASUS Thermal Solution - Aluminum heatsink design ASUS Lighting Control - RGB header
Description

Asus Prime H510M-K Intel 10th and 11th Gen Micro-ATX Motherboard

Asus Prime H510M-K Micro- ATX Motherboard is Ready For Intel 10th and 11th Generation Processor. Asus Prime H510M-K Motherboard Featured With Intel LGA 1200 Socket, Ultrafast Connectivity PCIe 4.0, 32 Gbps M.2, USB 3.2 Gen 1, and 5X Protection.  ASUS H510 series motherboards give all the fundamentals to boost diurnal productivity, so your system will be ready for action with stable power, intuitive cooling, and flexible transfer options. This rearmost ASUS PRIME H510M-K Intel 10th and 11th Gen Micro ATX Motherboard comes with a 03 Times Warranty.


Review

Write a review

Note: HTML is not translated!
Bad Good

What is the price of Asus Prime H510M-K 10th/ 11th Gen Motherboard in Bangladesh?

The Asus Prime H510M-K 10th/ 11th Gen Motherboard is Out Of Stock now. You can buy the Asus Prime H510M-K 10th/ 11th Gen Motherboard at the best price from our website or visit any of our showrooms When the product is available.

Tags: Prime H510M-K , Asus , 10th gen motherboard
