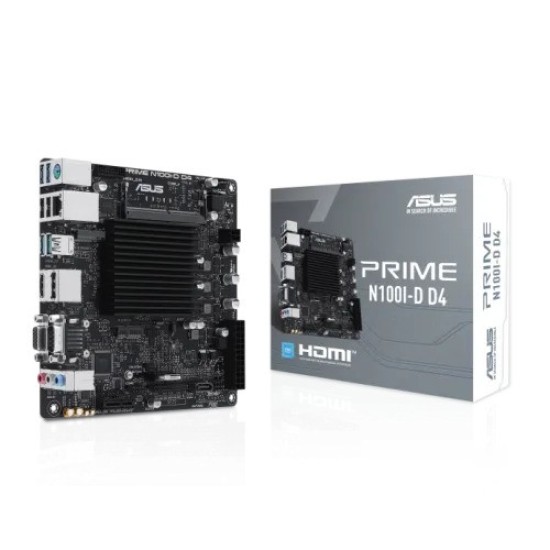

Asus PRIME N100I-D D4 Mini-ITX Motherboard

Hot Deals save 1390 ৳

Offer Price: 12,800৳
Price: 14,190৳
Stock: In Stock
Brand: Asus
Model: PRIME N100I-D D4
Warranty: 3 years

Featured Description:

Model: PRIME N100I-D D4

Supported CPU: Onboard Intel Processor N100

Supported Memory: 1 x SO-DIMM, Max. 16GB, DDR4

Graphics Output: 1 x HDMI, 1 x VGA port, 1 x DisplayPort

Features: 1 x Realtek 1Gb Ethernet

Based on 0 reviews. - Write a review

12,800৳

14,190৳

Add to Cart

Buy Now Ask Question

WishList Compare

অনলাইনে অর্ডার নিশ্চিত করতে অর্ডার করার সময় আংশিক অগ্রিম টাকা পরিশোধ করতে হবে । অর্ডার করার পূর্বে 01759546431 নাম্বারে কল দিয়ে পণ্য এর স্টক ও ডেলিভারি সম্পর্কে জেনে নেওয়ার জন্য অনুরোধ করা যাচ্ছে ; প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ার কারনে যেকোনো সময় মূল্য পরিবর্তন হতে পারে । ধন্যবাদ

Specification

Motherboard Basic Info
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Form Factor	Mini-ITX Form Factor 6.7 inch x 6.7 inch (17cm x 17cm)
Motherboard Basic Information
Supported CPU	Onboard Intel Processor N100 Supports Intel Turbo Boost Technology 2.0
Expansion Slots
PCI	1 x PCIe 3.0 x1 slot
Motherboard Memory Info
Slots	1 x SO-DIMM
Supported Memory	3200/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* * We recommend that you use 16GB or less memory module.
Motherboard Graphics Info
Graphics	1 x DisplayPort 1 x VGA port 1 x HDMITM port* Supports max. 4K@60Hz as specified in DisplayPort 1.4. *Supports 4K@60Hz as specified in HDMITM 2.1.
Connector & Ports (MB)
HDMI	1 x HDMI port
USB (s)	Rear USB (Total 6 ports) 2 x USB 3.2 Gen 2 (10G) ports (2 x Type-A) 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)* 2 x USB 2.0 ports (2 x Type-A） Front USB (Total 4 ports) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports* 1 x USB 2.0 header supports 2 additional USB 2.0 ports * U32G1_E1 port, U32G1_E2 port, U32G1_E3 port and U32G1_E4 port share the bandwidth.
LAN Port (s)	1 x Realtek 1Gb Ethernet ASUS LANGuard
Internal I/O Ports	Internal I/O Connectors Fan and cooling related 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 4-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 1 x SATA 6Gb/s port USB 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x M.2 slot (Key E) 1 x Chassis Intrude header 1 x LPT header 1 x S/PDIF out header 1 x SPI TPM header (14-1pin) 1 x Speaker Header 1 x System Panel connector
Supported Storage	Total supports 1 x M.2 slot and 1 x SATA 6Gb/s port 1 x M.2 Socket 3 with M key, type 2260/2280 (supports PCIe 3.0 x 2 mode) 1 x SATA 6Gb/s port
Warranty Information
Manufacturing Warranty	3 years warranty

Description

Asus PRIME N100I-D D4 Mini-ITX Motherboard

The Asus PRIME N100I-D D4 Mini-ITX motherboard is a low-power, fan-less solution designed for the Intel Processor N100, combining essential features and connectivity options to support various computing needs. It is equipped with a PCIe 3.0 x1 slot for additional expansion capabilities and offers versatile display outputs including DisplayPort, HDMI, and VGA. For connectivity, the motherboard includes a rear USB 3.2 Gen 2 port for high-speed data transfer, front USB 3.2 Gen 1 ports, and a 1Gb Ethernet port for reliable wired network connections. Storage options are comprehensive, featuring a 16Gbps M.2 slot for ultrafast storage solutions and SATA 6 Gbps ports for traditional storage devices. The motherboard supports legacy applications with its M.2 WIFI slot and LPT and COM ports, which allow for easy integration of wireless networking. These ports are designed for industrial use. A CPU heatsink built to sustain system temperature without the need for extra fans is part of the cooling system, guaranteeing silent operation. It has a COM debug header for improved serviceability, which makes troubleshooting and support easier during the building and maintenance procedures. The PRIME N100I-D D4, a member of the ASUS Prime series, has a strong power architecture, extensive cooling choices, and intelligent tuning options for user-friendly software and firmware-based performance optimization. The Intel Processor N100's performance is optimized by this painstakingly designed motherboard, giving PC builders and do-it-yourselfers a dependable and flexible platform. This motherboard provides an optimal combination of necessary features and connectivity choices for creating a small home server, high-end desktop computer, or industrial PC.

Buy Asus PRIME N100I-D D4 Mini-ITX Motherboard from the best Motherboard Shop in BD

In Bangladesh, you can get original Asus PRIME N100I-D D4 Mini-ITX Motherboard From Sell Tech. We have a large collection of latest ASUS Motherboard to purchase for your Desktop PC. Order Online Or Visit your Nearest Sell Tech Shop to get yours at lowest price. The Asus PRIME N100I-D D4 Mini-ITX Motherboard comes with 3 years warranty.

Quick Compare

Product Details
Product	Asus PRIME N100I-D D4 Mini-ITX Motherboard	MSI PRO B760M-E DDR4 mATX Motherboard	Gigabyte B550M K AMD AM4 Micro ATX Motherboard	MSI PRO B760M-E DDR5 m-ATX Motherboard
Price	~~14,190৳~~ 12,800৳	~~14,500৳~~ 13,000৳	~~13,200৳~~ 12,500৳	~~14,430৳~~ 13,200৳
Model	PRIME N100I-D D4	PRO B760M-E	B550M K	B760M-E
Brand	Asus	MSI	Gigabyte	MSI
Availability	In Stock	In Stock	In Stock	In Stock
Rating	Based on 0 reviews.	Based on 0 reviews.	Based on 0 reviews.	Based on 0 reviews.
Summary	Model: PRIME N100I-D D4 Supported CPU: Onboard Intel Processor N100 Supported Memory: 1 x SO-DIMM, Max. 16GB, DDR4 Graphics Output: 1 x HDMI, 1 x VGA port, 1 x DisplayPort Features: 1 x Realtek 1Gb Ethernet	Model: PRO B760M-E DDR4 Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700) Supported RAM: 2x DDR4, Max 128GB 4800(OC) Graphics Output: 1x HDMI, 1x VGA Features: 1x M.2 slot, Realtek RTL8111H Gigabit LAN	Model: B550M K Supported CPU: Ryzen 5000/ 5000 G/ 4000 G and 3000 Series Processors Supported RAM: 4x DDR4, Max 128GB 4733(OC) Graphics Output: 1x HDMI, 1x DisplayPort Features: GbE LAN with Bandwidth Management	Model: B760M-E Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700) Supported RAM: 2x DDR5, Maximum Memory Capacity 96GB Graphics Output: 1x HDMI, 1x VGA Features: Realtek RTL8111H Gigabit LAN

Details Comparison

Questions

Have question about this product? Get specific details about this product from expert.

No questions have been asked about this product.

Reviews

Tags: PRIME N100I-D D4
