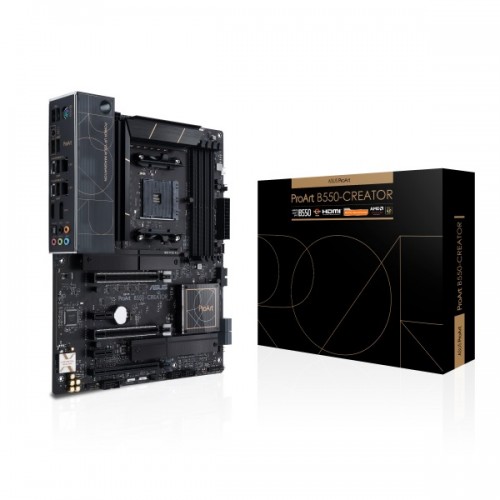

Asus PROART B550-CREATOR AM4 AMD ATX Motherboard
- Price: 0৳
- Stock: Out Of Stock
- Brand: Asus
- Model: PROART B550-CREATOR
What is The Latest Asus PROART B550-CREATOR AM4 AMD ATX Motherboard Price in Bangladesh?
The Asus PROART B550-CREATOR Motherboard price 2024 in bangladesh is in today's 07-11-2024 BD market. Buy original Asus PROART B550-CREATOR AM4 AMD ATX Motherboard at the lowest price from Sell Tech- সেল টেক website or visit our shop. The Asus PROART B550-CREATOR AM4 AMD ATX Motherboard manufacturing by Asus comes with warranty and reviewed by 0 users. Follow us on Facebook for regular updates & Offer. Subscribe our YouTube Channel for product reviews.Description
Asus PROART B550- CREATOR AM4 AMD ATX Motherboard
The ProArt B550- Creator motherboard equips creative professionals with important tackle and software tools to accelerate their workflows. Featuring comprehensive, effective cooling and lightning-fast connectivity, this board maximizes the computing power of the rearmost AMD Ryzen processors to let you produce briskly and get further done. Combined with a swish design, advanced security features and the trusted stability and trustability ASUS motherboards are known for, ProArt B550- Creator perfects the art of performance to empower your creative inflow. A comprehensive array of important I/ O anchorages including two Thunderbolt 4 anchorages, two2.5 G Ethernet and four USB3.2 Gen 2 anchorages enables quick data transfers and expansive storehouse options with flexible, hassle-free connectivity. Each Thunderbolt 4 harborage delivers up to 40 Gbps of bidirectional bandwidth for the rearmost high- speed bias and drives. Thunderbolt 4 also supports up to two external 4K displays and extends PCIe bandwidth to over to 32 Gbps. Experience briskly data transfers and high- res videotape streaming with two Intel2.5 G Ethernet( I225- V) anchorages. ProArt B550- Creator also features CreationFirst, exclusive network optimization software that allocates further bandwidth to speed up essential apps for your work. ProArt B550- Creator provides robust power delivery and comprehensive cooling to handle the rearmost AMD Ryzenâ „ ¢ processors. It also supports PCIe4.0, furnishing everything you need for the most demanding multithreaded tasks like 3D or videotape picture and software collecting. To maximize the eventuality of the AMD Ryzen 3000 and 5000 Series processors, ProArt B550- Creator features briskly PCIe ®4.0 x16 places for high- powered plates cards as well as PCIe4.0 and PCIe3.0M. 2 sockets to support high- bandwidth NVMe SSD RAID for faster content creation. Large, high- mass heatsinks with an expansive face area along with high- quality thermal pads help transfer heat from VRM and choke areas to ameliorate heat dispersion. With working- from- home getting the new normal, clear online communication is critical, indeed for content generators. Our rearmost audio mileage leverages a massive deep- literacy database to reduce background noise from the microphone and incoming audio. Distracting keyboard clatter, mouse clicks and other ambient noises are dashingly pruned back so you can hear and be heard with crystal clear clarity while in calls.
Specifications
Motherboard Basic Info | |
BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
Motherboard Basic Information | |
Supported CPU | AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors |
Chipset | B550 |
Expansion Slots | |
PCI | 2 x PCIe 4.0/3.0 x16 (x16, x8/x8) AMD Ryzen 5000 Series/ 3000 Series Desktop Processors 2 x PCIe 4.0 x16 (x16 or dual x8) AMD Ryzen 4000 G-Series Processor 2 x PCIe 3.0 x16 (x16 or dual x8) AMD B550 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots |
Expansion Slots | |
M.2 Socket | AMD Ryzen 5000 Series/ 3000 Series Desktop Processors : M.2_1 slot (Key M), type 2242/ 2260/ 2280/ 22110 (supports PCIe 4.0 x4 & SATA modes) AMD Ryzen 4000 G-Series Processor : M.2_1 slot (Key M), type 2242/ 2260/ 2280/ 22110 (supports PCIe 3.0 x4 & SATA modes) AMD B550 Chipset M.2_2 slot (Key M), type 2242/ 2260/ 2280/ 22110 (supports PCIe 3.0 x4 & SATA modes) |
Memory Specifications | |
Type | DDR4 |
Motherboard Memory Info | |
Supported Memory | AMD Ryzen 5000 Series/ 3000 Series Desktop Processors 4866(O.C)/ 4600(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz ECC and non-ECC, Un-buffered Memory AMD Ryzen 4000 G-Series Processors 5100(O.C)/ 4800(O.C.)/ 4600(O.C)/ 4466(O.C.)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz ECC and non-ECC, Un-buffered Memory OptiMem II Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU |
Motherboard Graphics Info | |
Graphics | 1 x HDMI 2.1 (4K@60Hz) 2 x Intel Thunderbolt 4 ports (USB Type-C) support DisplayPort 1.2/ 1.4 and Thunderbolt video outputs |
Connector & Ports (MB) | |
HDMI | 1 x HDMI™ 2.1 (4K@60Hz) |
USB (s) | 2 x Intel Thunderbolt 4 ports (USB Type-C) support DisplayPort 1.2/ 1.4 and Thunderbolt video outputs 4 x USB 3.2 Gen 2 port(s) (4 x Type-A) 2 x USB 2.0 port(s) (2 x Type-A) |
Internal I/O Ports | 2 x Thunderbolt 4 port(s) (2 x USB Type-C) with up to 5V/3A, 15W charging support Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 4 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (support(s) USB Type-C®) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 header(s) 2 x AURA RGB header(s) 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x Speaker header 1 x 20-5 pin System Panel header 1 x Thermal Sensor header |
Supported Storage | AMD Ryzen 5000 Series/ 3000 Series Desktop Processors : M.2_1 slot (Key M), type 2242/ 2260/ 2280/ 22110 (supports PCIe 4.0 x4 & SATA modes) AMD Ryzen 4000 G-Series Processor : M.2_1 slot (Key M), type 2242/ 2260/ 2280/ 22110 (supports PCIe 3.0 x4 & SATA modes) AMD B550 Chipset M.2_2 slot (Key M), type 2242/ 2260/ 2280/ 22110 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports Supports RAID 0, 1, 10 |
Warranty Information | |
Manufacturing Warranty | 3 Years |
