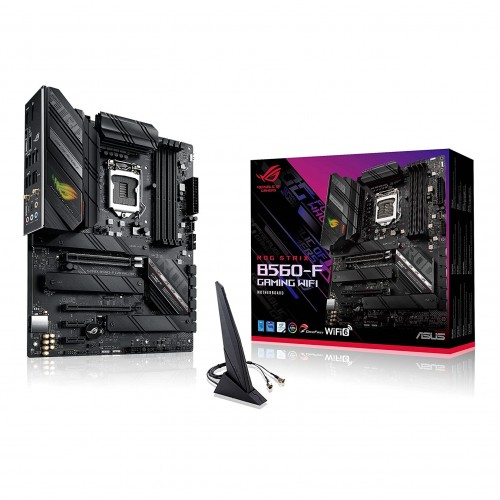

ASUS ROG STRIX B560-F GAMING WIFI 10th and 11th Gen ATX Motherboard
- Price: 0৳
- Stock: Discountinued
- Brand: Asus
- Model: ROG STRIX B560-F GAMING WIFI
- Model: ROG STRIX B560-F GAMING WIFI
- Intel LGA 1200 socket for 11th & 10th Gen Core, Pentium Gold and Celeron processors
- On-board Intel WiFi 6 (802.11ax) and Intel 2.5 Gb Ethernet
- HDMI 2.0 and DisplayPort 1.4 output
- ASUS-exclusive Aura Sync RGB lighting
Specification
Motherboard Basic Info | |
BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
Form Factor | ATX 30.5cm x 24.4cm |
Motherboard Basic Information | |
Supported CPU | Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** |
Chipset | B560 |
Expansion Slots | |
M.2 Socket | 2 x M.2 slots |
Expansion Slots | |
PCI | Intel 11th &10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot(s) - Intel 11th processors support PCIe 4.0 x16 mode - Intel 10th processors support PCIe 3.0 x16 mode Intel B560 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode)* 2 x PCIe 3.0 x1 slots |
Memory Specifications | |
Type | DDR4 |
Motherboard Memory Info | |
Supported Memory | 5333(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3333(OC)/ 3200/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II |
Maximum Memory | 128GB |
Motherboard Graphics Info | |
Graphics | 1 x DisplayPort 1.4 1 x HDMI 2.0** * Graphics specifications may vary between CPU types. **Only Intel 11th processors, support DisplayPort 1.4 with max. resolution of 5120 x 2880 @60Hz, others would only support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz .Please refer to www.intel.com for any update. *** Only Intel 11th processors support HDMI 2.0 with max. resolution of 4K@60Hz, others will only support HDMI 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates. |
Connector & Ports (MB) | |
HDMI | 1 x HDMI 2.0 |
USB (s) | Rear USB: Total 10 ports Rear USB (Total 10 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 5 x USB 2.0 ports (4 x Type-A, 1 x audio USB Type-C) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector(s) (suppport(s) USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports |
Internal I/O Ports | 1 x TB Header (for add-on TB card) Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 3 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (support(s) USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 header(s) 2 x AURA RGB header(s) 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x 20-5 pin System Panel heade 1 x Thunderbolt header 1 x S/PDIF Out header |
Supported Storage | Supports 2 x M.2 slots and 6 x SATA 6Gb/s ports Intel11th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 - Only Intel 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs. Intel B560 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)* 6 x SATA 6Gb/s ports * When M.2_2 runs at SATA mode, SATA6G_1 will be disabled ** To enable Intel Optane Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel Rapid Storage Technology. |
Others | |
Special Features | Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - ProCool - Pre-mounted I/O shield - SafeSlot AURA Sync - AURA RGB header(s) - Addressable Gen 2 RGB header(s) |
Warranty Information | |
Manufacturing Warranty | 03 Years Warranty |
Description
ASUS ROG STRIX B560-F GAMING WIFI 10th and 11th Gen ATX Motherboard
The ROG Strix B560-F Gaming WiFi delivers everything you need to produce a well- balanced Micro ATX- grounded gaming PC exercising 11th Generation Intel Core processors. It’s ready to take on heavyweight plates cards and neatly crams in options for the rearmost storehouse and networking norms. AI advancements that have trickled down from advanced- end counterparts add a farther performance boost. As a finishing touch, futuristic aesthetics featured by customizable RGB lighting allow you to make the figure uniquely yours. It supports Intel LGA 1200 socket Ready for 11th Gen Intel Core, 10th Gen Intel Core, Pentium Gold, and Celeron processors. It comes with a Solid Power Solution. Teamed power stages with ProCool power connector, high- quality amalgamation chokes, and durable capacitors to supportmulti-core processors. Smooth Networking On- board Intel WiFi 6 (802.11 layoff) and Intel2.5 Gb Ethernet with ASUS LANGuard. It features Stylish Gaming Connectivity. It supports HDMI2.0 and DisplayPort1.4 affair, twoM. 2 places, and USB3.2 Gen 2x2 USB Type-C. It has a DIY Friendly Design.M. 2 Q-Latch,pre-mounted I/ O guard, BIOS FlashBack, and Q-LED. ASUS-exclusive Air Sync RGB lighting, including RGB heads and Gen 2 nontransferable heads. It's equipped with Assiduity- Leading Gaming Audio. SupremeFX S1220A codec with Savitch SV3H712 amplifier, along with Two- Way AI Noise Cancelation, DTS Sound Footloose, and Sonic Studio III. It has 3 times of bond.
