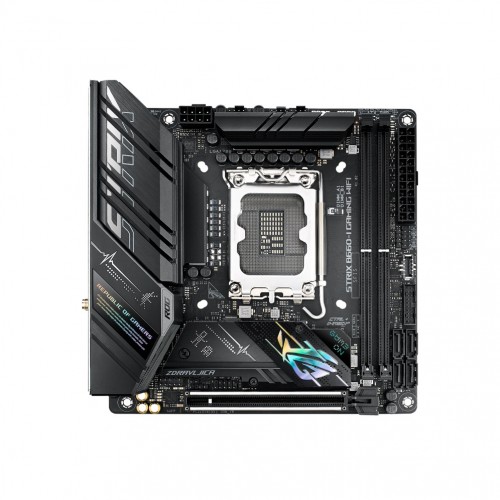

ASUS ROG STRIX B660-I GAMING WIFI 12th Gen ITX Motherboard

- Price: 0৳
- Stock: Out Of Stock
- Brand: Asus
- Model: ROG STRIX B660-I GAMING WIFI
Specification
Motherboard Basic Info | |
BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
Motherboard Basic Information | |
Supported CPU | Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
Chipset | Intel B660 Chipset |
Expansion Slots | |
PCI | Intel 12th Gen Processors 1 x PCIe 5.0 x16 slot |
Memory Specifications | |
Type | DDR5 |
Motherboard Memory Info | |
Supported Memory | 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II |
Motherboard Graphics Info | |
Graphics | 1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4) 1 x HDMI ports (Supports 4K@60Hz as specified in HDMI 2.1) |
Connector & Ports (MB) | |
USB (s) | Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 4 x USB 3.2 Gen 1 ports (3 x Type-A +1 x USB Type-C) 3 x USB 2.0 ports (3 x Type-A) Front USB (Total 5 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports |
Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 headers support additional 2 USB 2.0 ports Miscellaneous 1 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header |
Warranty Information | |
Manufacturing Warranty | 3 years |
Description
ASUS ROG STRIX B660-I GAMING WIFI 12th Gen ITX Motherboard
The ASUS ROG STRIX B660-I GAMING WIFI Supports 12th Gen Intel processors and Intel LGA 1700 socket and Intel Turbo Boost Technology2.0 and Intel Turbo Boost Max Technology3.0. This motherboard comes with an enhanced power result, so that 10 power stages, a six- subcaste PCB, ProCool socket, military- grade TUF factors, and Digi VRM for maximum continuity. It has a comprehensive cooling system-an Enlarged VRM heatsink, FlexibleM. 2 heatsink, PCH heatsink, cold-blooded addict heads, and Fan Xpert 2. Then, PCIe4.0 niche, PCIe4.0M. 2 places, and frontal USB3.2 Gen 2 Type-C Rearmost connectivity are also available. This 12th Gen motherboard is especially made for online gaming Realtek2.5 Gb Ethernet, TUF LANGuard. This motherboard also has Two- way AI Noise- Cancelation, which helps to reduce Reduces background noise from the microphone and audio affair for demitasse-clear communication in games or videotape conferences. Multiple PCB layers optimize heat operation for critical factors, furnishing further headroom to push CPUs beyond stock pets. The motherboard comes with upgraded power delivery and comprehensive cooling options to drive the 12th Gen Intel Core processors, plus support for faster memory and storehouse, ASUS ROG STRIX B660-I GAMING WIFI motherboard is the perfect foundation for your coming high- core- count battle carriage. The new ASUS ROG STRIX B660-I GAMING WIFI motherboards give a high- performance gaming package with a long list of features including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you produce a substantiated gaming atmosphere. the rearmost ASUS ROG STRIX B660-I GAMING WIFI motherboard offers 03 times bond.
