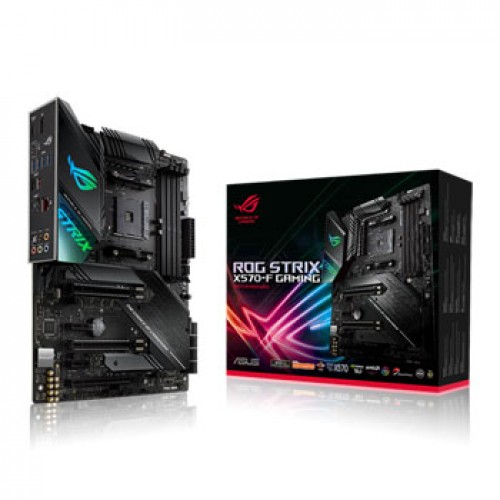

Asus Rog Strix X570-F AMD ATX Gaming Motherboard

  • Brand:: Asus
  • Product Code:: Asus Rog Strix X570-F
  • Status: In Stock
  • Price: 31,400Tk
  • Regular Price: 33,640Tk

Features

  • Model: Asus Rog Strix X570-F
  • Chipset: AMD X570
  • Memory: 4 x DDR4, Max 128 GB
  • 5-Way Optimization
  • Optimal Power Solution:14 power stages
View More Info!
31,400Tk
Cash Discount Price

প্রোডাক্ট অর্ডারের পূর্বে সাপোর্ট থেকে স্টক এবং ডেলিভারি সম্পর্কে জেনে অর্ডার করার জন্যে অনুরোধ করা যাচ্ছে।

Asus Rog Strix X570-F AMD ATX Gaming Motherboard

The ROG Strix X570-F Gaming motherboard delivers the quintessential ROG experience with a compelling mixture of features, comprehensive cooling options and undeniable style that provide the perfect foundation for building a strong ATX gaming system. Topped off with a futuristic new design aesthetic with on-board RGB lighting and a cyber-text pattern, ROG Strix X570-F Gaming equips you with all you would like to create a formidable weapon to rise above the remainder .

DESIGN & CUSTOMIZATION


The arrival of ROG Strix X570-F Gaming brings a brand-new design that features unique rainfall and cyber-text patterns. along side the foremost diverse ecosystem of components within the industry, ROG Strix X570-F Gaming makes creating and customizing a gaming rig that reflects your personal style wonderfully easy.

TUNE YOUR RIG you would like


The ROG Strix X570-F Gaming motherboard features firmware controls and software utilities designed for all skill levels, making setup, tuning and system maintenance simple. With options from overclocking and cooling to managing network performance and audio characteristics, you'll configure your ROG Strix gaming build to perform the way you would like .

THE POWER OF AMD


AMD X570 CHIPSET :

The AMD X570 chipset delivers outstanding overclocking capabilities for the newest AMD AM4 socket for 3rd and 2nd Gen AMD Ryzen™ /2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors. it's optimized for multiple GPU configurations, including NVIDIA SLI and AMD CrossFireX. It also supports x16 PCI Express® 4.0/3.0 lanes and provides 10Gb/s USB 3.2 Gen 2 ports and 6 Gb/s SATA ports for faster data retrieval.


AMD AM4 SOCKET FOR 3RD AND 2ND GEN AMD RYZEN / 2ND AND 1ST GEN AMD RYZEN WITH RADEON VEGA GRAPHICS PROCESSORS :

The high-performance 3rd Gen AMD Ryzen processors are supported the next-gen 7nm Zen architecture and support up to 16 processor cores. AMD AM4-socket processors feature dual-channel DDR4 memory, native 10Gb/s USB 3.2 Gen 2 and x16 PCI Express 4.0/3.0 lanes for superb performance.

Motherboard Basic Info
BIOS 256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2.
Form Factor ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Motherboard Basic Information
Supported CPU AMD AM4 Socket 3rd and 2nd AMD Ryzen /2nd and 1st Gen AMD Ryzen with Radeo Vega Graphics Processors
Chipset AMD X570
Expansion Slots
PCI 1 PCIeX16_3 slot shares bandwidth with PCIeX1_2.
Expansion Slots
M.2 Socket Yes
Graphics Specifications
Max Shared Memory Max. 128GB
Motherboard Memory Info
Slots 3rd Gen AMD Ryzen Processors : 2 x PCIe 4.0 x16 (x16 or dual x8) 2nd Gen AMD Ryzen Processors : 2 x PCIe 3.0 x16 (x16 or dual x8) 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors : 1 x PCIe 3.0 x16 (x8 mode) AMD X570 chipset : 1 x PCIe 4.0 x16 (max at x4 mode) 1 2 x PCIe 4.0 x1
Maximum Memory 128GB, DDR4
Motherboard Memory Info
Type 3rd Gen AMD Ryzen Processors : 4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory 2nd Gen AMD Ryzen Processors : 4 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors : 4 x DIMM, Max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory Dual Channel Memory Architecture
Motherboard Graphics Info
Graphics Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors Multi-VGA output support : HDMI/DisplayPort ports - Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz - Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz
Connector & Ports (MB)
HDMI HDMI
USB (s) 3rd and 2nd Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors : 4 x USB 3.2 Gen 1 port(s) (4 at back panel, ) AMD X570 chipset : 1 x USB 3.2 Gen 2 front panel connector port(s) AMD X570 chipset : 4 x USB 3.2 Gen 2 port(s) (4 at back panel, , 3 x Type-A+1 x Type-C) AMD X570 chipset : 2 x USB 3.2 Gen 1 port(s) (2 at mid-board) AMD X570 chipset : 4 x USB 2.0 port(s) (4 at mid-board)
LAN Port (s) Realtek® L8200A ASUS Turbo LAN Utility TUF LANGuard
Audio SupremeFX 8-Channel High Definition Audio CODEC S1220A - Dual OP Amplifiers - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - SupremeFX Shielding Technology - Supports up to 32-Bit/192kHz playback *2 Audio Feature : - Optical S/PDIF out port(s) at back panel - Sonic Radar III - Sonic Studio III + Sonic Studio Link
Internal I/O Ports 1 x PCH_FAN 1 x AAFP connector 2 x Aura RGB Strip Header(s) 2 x Addressable Gen 2 header(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support 1 x SPI TPM header 8 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x W_PUMP+ connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) 1 x Node Connector(s) 1 x System panel connector 1 x T_Sensor Connector 1 x M.2 Fan Header 1 x USB 3.2 Gen 2 (up to 10Gbps) connector 1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports
Supported Storage 3rd Gen AMD Ryzen Processors : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support AMD X570 chipset : 1 x M.2 x4 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support 8 x SATA 6Gb/s port(s), Support Raid 0, 1, 10
Warranty Information
Manufacturing Warranty 03 Years Warranty

Asus Rog Strix X570-F AMD ATX Gaming Motherboard

The ROG Strix X570-F Gaming motherboard delivers the quintessential ROG experience with a compelling mixture of features, comprehensive cooling options and undeniable style that provide the perfect foundation for building a strong ATX gaming system. Topped off with a futuristic new design aesthetic with on-board RGB lighting and a cyber-text pattern, ROG Strix X570-F Gaming equips you with all you would like to create a formidable weapon to rise above the remainder .

DESIGN & CUSTOMIZATION


The arrival of ROG Strix X570-F Gaming brings a brand-new design that features unique rainfall and cyber-text patterns. along side the foremost diverse ecosystem of components within the industry, ROG Strix X570-F Gaming makes creating and customizing a gaming rig that reflects your personal style wonderfully easy.

TUNE YOUR RIG you would like


The ROG Strix X570-F Gaming motherboard features firmware controls and software utilities designed for all skill levels, making setup, tuning and system maintenance simple. With options from overclocking and cooling to managing network performance and audio characteristics, you'll configure your ROG Strix gaming build to perform the way you would like .

THE POWER OF AMD


AMD X570 CHIPSET :

The AMD X570 chipset delivers outstanding overclocking capabilities for the newest AMD AM4 socket for 3rd and 2nd Gen AMD Ryzen™ /2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors. it's optimized for multiple GPU configurations, including NVIDIA SLI and AMD CrossFireX. It also supports x16 PCI Express® 4.0/3.0 lanes and provides 10Gb/s USB 3.2 Gen 2 ports and 6 Gb/s SATA ports for faster data retrieval.


AMD AM4 SOCKET FOR 3RD AND 2ND GEN AMD RYZEN / 2ND AND 1ST GEN AMD RYZEN WITH RADEON VEGA GRAPHICS PROCESSORS :

The high-performance 3rd Gen AMD Ryzen processors are supported the next-gen 7nm Zen architecture and support up to 16 processor cores. AMD AM4-socket processors feature dual-channel DDR4 memory, native 10Gb/s USB 3.2 Gen 2 and x16 PCI Express 4.0/3.0 lanes for superb performance.
