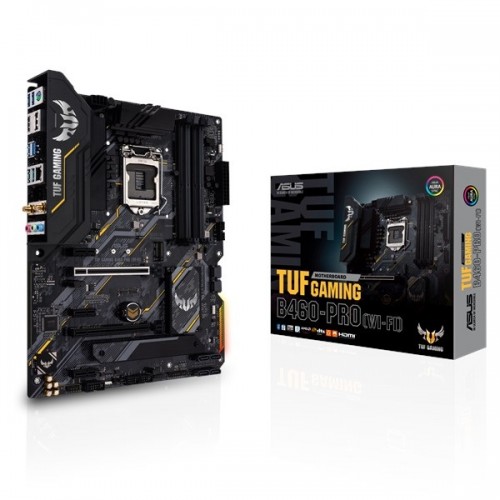

ASUS TUF GAMING B460-PRO Wi-Fi Intel 10th Gen ATX Motherboard
- Price: 0৳
- Stock: Out Of Stock
- Brand: Asus
- Model: ASUS TUF GAMING B460-PRO Wi-Fi
- Model: ASUS TUF GAMING B460-PRO Wi-Fi
- LGA 1200 socket for 10th-gen Intel Core Desktop Processors
- Comprehensive cooling
- Made for online gaming
- Enhanced power solution
Specification
Motherboard Basic Info | |
BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
Motherboard Basic Information | |
Supported CPU | Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
Chipset | Intel B460 |
Expansion Slots | |
M.2 Socket | Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports Intel B460 Chipset : 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCI-E 3.0 x 4 mode) 1 x M.2 Socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (PCI-E 3.0 x 4 mode) |
Expansion Slots | |
PCI | Intel 10th Gen Processors 1 x PCIe 3.0 x16 (x16 mode) Intel B460 Chipset 1 x PCIe 3.0 x16 (x4 mode) 3 x PCIe 3.0 x1 |
Motherboard Memory Info | |
Type | Dual Channel Memory Architecture |
Motherboard Memory Info | |
Slots | 4 x DDR4 DIMM |
Supported Memory | 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory Supports Intel Extreme Memory Profile (XMP) OptiMem |
Maximum Memory | 128 GB |
Motherboard Graphics Info | |
Graphics | Integrated Graphics Processor 1 x DisplayPort 1.4 1 x HDMI 1.4b Supports AMD 2-Way CrossFireX Technology |
Connector & Ports (MB) | |
HDMI | 1 x HDMI 1.4b |
USB (s) | Rear USB Port ( Total 6 ) 2 x USB 3.2 Gen 2 port(s)(2 x Type-A) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s) 4 x USB 2.0 port(s) |
Audio | Realtek ALC S1200A 8-Channel High Definition Audio CODEC - Supports: Jack-detection, Multi-recording, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : - Exclusive DTS Custom for GAMING Headsets. - Audio cover - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors |
Internal I/O Ports | 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x AIO_PUMP connector 2 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header |
Supported Storage | Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports Intel B460 Chipset : 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCI-E 3.0 x 4 mode) 1 x M.2 Socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (PCI-E 3.0 x 4 mode) 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel Rapid Storage Technology supports Intel Optane Memory Ready |
Others | |
Special Features | Wireless Data Network: Intel Wi-Fi 6 AX200 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO Supports up to 2.4Gbps max data rate Supports dual band frequency 2.4/5 GHz Supports channel bandwidth: HT20/HT40/HT80/HT160 Supports PCIe interface |
Warranty Information | |
Manufacturing Warranty | 03 Years |
Description
ASUS TUF GAMING B460-PRO Wi-Fi Intel 10th Gen ATX Motherboard
TUF Gaming B460-PRO (WiFi) distills essential rudiments of the rearmost Intel platform and combines them with game-ready features and proven continuity. Engineered with military- grade factors, an upgraded power result, and a comprehensive set of cooling options, this motherboard delivers gemstone-solid performance with unvarying gaming stability. When you make with a TUF Gaming motherboard, you also profit from the TUF Gaming Alliance — an ASUS collaboration with trusted assiduity mates that ensures easier structure, the stylish comity, and reciprocal aesthetics from factors to case. With upgraded power delivery and comprehensive cooling options to fuel the rearmost Intel CPUs, plus support for faster memory and storehouse, TUF Gaming B460-PRO (Wi-Fi) is the perfect foundation for your coming high- core- count battle carriage. Pukka military- grade TUF chokes deliver gemstone-steady power to the CPU, perfecting system stability. Personal capacitors give up to 20 lesser temperature forbearance and a 5X-longer lifetime. TUF Gaming motherboards are designed to be easy to set up and configure just the way you want — indeed for first- time builders. The TUF Gaming Allianceeco-system makes opting compatible corridor easy, while Armoury Jalopy software offers full control of system settings via a single dashboard. TUF Gaming motherboards give you everything you need to make your dream gaming carriage without adding complexity. TUF Gaming Alliance is a collaboration between ASUS and trusted PC- element brands to insure comity with a wide range of corridor, similar as PC cases, power inventories, CPU coolers, memory accoutrements, and more. With further hookups and factors being added regularly, the TUF Gaming Alliance will continue to grow indeed stronger. TUF Gaming B460-PRO (Wi-Fi) provides a complete, high- performance gaming package with a long list of features to ameliorate your experience, including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you produce a substantiated gaming atmosphere. The Intel WiFi 6 AX200 module is compatible with the802.11 layoff standard and pushes theoretical peak bandwidth up to an inconceivable2.4 Gbps. Maybe more importantly for power druggies, it's optimized for more effective operation on crowded networks with a lot of contending business. Brace your motherboard with ASUS WiFi 6 routers to completely witness the networking eventuality of WiFi 6. Intel Ethernet Connection I219-V reduces CPU outflow and offers exceptionally high TCP and UDP outturn for briskly, smoother data transfer. Turbo LAN with cFosSpeed business- shaping technology allows you to configure operation precedence via an intuitive interface and reduces network pause.
