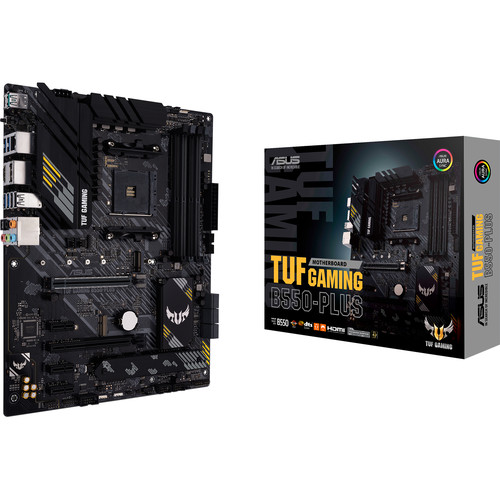

Asus TUF Gaming B550 Plus ATX AM4 Motherboard

- Price: 0৳
- Stock: Out Of Stock
- Brand: Asus
- Model: TUF Gaming B550 Plus
Specification
Motherboard Basic Info | |
BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
Max Shared Memory | 128GB |
Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
Motherboard Basic Information | |
Supported CPU | AMD AM4 Socket for 3rd Gen AMD Ryzen and 3rd Gen AMD Ryzen with Radeon Graphics Processors |
Chipset | AMD B550 |
Expansion Slots | |
PCI | 3rd Gen AMD Ryzen Processors 1 x PCIe 4.0 x16 (x16 mode) 3rd Gen AMD Ryzen with Radeon Graphics Processors 1 x PCIe 3.0 x16 (x16 mode) AMD B550 Chipset 1 x PCIe 3.0 x16 (x4 mode) 3 x PCIe 3.0 x1 Support PCIe bifurcation for RAID on CPU function. |
Expansion Slots | |
M.2 Socket | 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support |
Memory Specifications | |
Type | DDR4 |
Motherboard Memory Info | |
Slots | Total supports 2 x M.2 slot(s) and 6 x SATA 6Gb/s ports |
Motherboard Graphics Info | |
Graphics | 1 x DisplayPort 1.2 1 x HDMI 2.1(4K@60HZ) Graphics specifications may vary between CPU types. |
Connector & Ports (MB) | |
HDMI | 1 x HDMI |
USB (s) | Rear USB Port ( Total 8 ) 2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C) 4 x USB 3.2 Gen 1 port(s)( x Type-A) 2 x USB 2.0 port(s)( x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 4 x USB 2.0 port(s)(4 x Type-A) 2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C) 4 x USB 3.2 Gen 1 (blue) Type-A 2 x USB 2.0 (one port can be switched to USB BIOS FlashBack) |
LAN Port (s) | Realtek RTL8125B 2.5Gb Ethernet TUF LANGuard 1 x LAN (2.5G) port(s) |
Audio | Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : - Exclusive DTS Custom for GAMING Headsets. - Optical S/PDIF out port(s) at back panel - Audio cover - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors - Unique de-pop circuit - 5 x Audio jack(s) |
Internal I/O Ports | 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 2 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 with E key for Wi-Fi module 1 x SPI TPM header 6 x SATA 6Gb/s connector(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header |
Supported Storage | Total supports 2 x M.2 slot(s) and 6 x SATA 6Gb/s ports 3rd Gen AMD Ryzen Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 3rd Gen AMD Ryzen with Radeon Graphics Processors : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support AMD B550 Chipset : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support 6 x SATA 6Gb/s port(s), Support Raid 0, 1, 5, 10 |
Warranty Information | |
Manufacturing Warranty | 03 years warranty |
Description
Asus TUF Gaming B550 Plus ATX AM4 Motherboard
The new Asus TUF Gaming B550 Plus ATX AM4 Motherboard is prepared for 3rd Gen AMD Ryzen and 3rd Gen AMD Ryzen with Radeon Graphics Processors. It comes with Enhanced power solution, 8+2 DrMOS power stages, ProCool sockets, military-grade TUF components, and Digi+ VRM for max durability. during this monitor, VRM heatsink, PCH fanless heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 4 Comprehensive cooling are available. This motherboad is additionally has PCIe 4.0 M.2, USB 3.2 Gen 2 Type-A and Type-C support Next-gen connectivity. This motherboard is formed for online gaming - 2.5 Gb Ethernet, M.2 slot (Key E) for Wi-Fi module, TUF LANGuard, and Turbo LAN technolog. This motherboard also has Pristine audio quality with unprecedented 108 dB signal-to-noise for stereo line out and 103 dB SNR for line in Realtek S1200A codec. This motherboard has AI noise-canceling microphone, that gives crystal-clear in-game speech .
This moptherboard is featured with upgraded power delivery and comprehensive cooling options to fuel the newest AMD Ryzen CPUs, plus support for faster memory and storage, TUF Gaming B550-Plus is that the perfect foundation for your next high-core-count battle rig. Here, The onboard VRM of TUF Gaming B550-Plus utilizes 8+2 DrMOS power stages that combine high-side and low-side MOSFETs and drivers into one package, delivering the facility and efficiency that 3rd Gen AMD Ryzen Processors demand. The new TUF Gaming B550-Plus provides an entire , high-performance gaming package with an extended list of features to enhance your experience, including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to assist you create a customized gaming atmosphere. during this motherboard, 2.5G on-board Ethernet kicks your LAN connection up a notch with an up to 2.5X bandwidth improvement. Using your existing LAN cable, you'll cash in this networking upgrade to experience smoother, lag-free gaming, immediately stream high-resolution videos and luxuriate in faster file transfers. The TUF Gaming B550-Plus motherboard comes along side an M.2 (Key E) slot which provides you the pliability to upgrade your networking solution by installing an M.2 Wi-Fi/Bluetooth module.
The Turbo LAN may be a network-optimization software for customizable packet prioritization. With cFosSpeed traffic-shaping technology, that permits to configure application priority via an intuitive interface, and reduces network lag. The Asus TUF Gaming B550 Plus ATX AM4 Motherboard has 03 years warranty.
