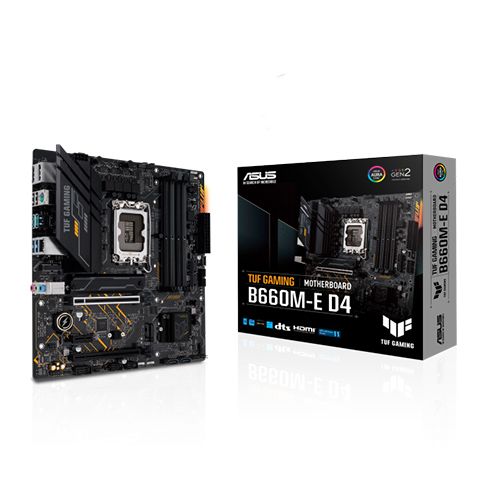

ASUS TUF Gaming B660M-E D4 12th Gen Motherboard
- Price: 0৳
- Stock: Out Of Stock
- Brand: Asus
- Model: TUF Gaming B660M-E D4
Specification
Motherboard Basic Info | |
BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
Motherboard Basic Information | |
Supported CPU | 12th Gen Intel processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 Intel LGA 1700 socket |
Chipset | B660 |
Expansion Slots | |
PCI | 1 x PCIe 4.0/3.0 x16 slot Intel B660 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) 1 x PCIe 3.0 x1 slot |
Expansion Slots | |
M.2 Socket | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports M.2_1 slot (Key M), type 2242/2260/2280 M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
Memory Specifications | |
Type | DDR4 |
Motherboard Memory Info | |
Supported Memory | 5333(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/2133 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II |
Motherboard Graphics Info | |
Graphics | 1 x DisplayPort 1 x HDMI port -Support 4K@60Hz as specified in DisplayPort 1.4. -Support 4K@60Hz as specified in HDMI 2.1. |
Connector & Ports (MB) | |
USB (s) | 2 x USB 3.2 Gen 2 ports (Type-A) 2 x USB 3.2 Gen1 ports (Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB:Total 7 ports 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
Internal I/O Ports | Back Panel I/O Ports 2 x USB 3.2 Gen 2 ports 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x V-M.2 slot (Key E) 1 x PS/2 Keyboard/Mouse combo port Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related: 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB: 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous: 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x S/PDIF Out header |
Supported Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* M.2_1 slot (Key M), type 2242/2260/2280 - Intel® 12th Gen processors support PCIe 4.0 x4 mode. M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
Warranty Information | |
Manufacturing Warranty | 3 years |
Description
ASUS TUF Gaming B660M-E D4 12th Gen Motherboard
ASUS TUF Gaming B660M-E D4 Supports with 12th Gen Intel processors and Intel LGA 1700 socket and Intel Turbo Boost Technology2.0 and Intel Turbo Boost Max Technology3.0. This motherboard comes with Enhanced power result, so that 10 power stages, six- subcaste PCB, ProCool socket, military- grade TUF factors and Digi VRM for maximum continuity. It has Comprehensive cooling system- Enlarged VRM heatsink, FlexibleM. 2 heatsink, PCH heatsink, cold-blooded addict heads and Addict Xpert 2. Then, PCIe4.0 niche, PCIe4.0M. 2 places, frontal USB3.2 Gen 2 Type-C Rearmost connectivity are also availble. This 12th Gen motherboard especially made for online gaming Realtek2.5 Gb Ethernet, TUF LANGuard. In this motherboard, it also has Two- way AI Noise- Cancelation, which helps to reduce Reduces background noise from the microphone and audio affair for demitasse-clear communication in games or videotape conferences. Multiple PCB layers optimize heat operation for critical factors, furnishing further headroom to push CPUs beyond stock pets. The motherboard comes with upgraded power delivery and comprehensive cooling options to drive the 12th Gen Intel Core processors, plus support for faster memory and storehouse, TUF GAMING B660 motherboards are the perfect foundation for your coming high- core- count battle carriage. The TUF GAMING platform gives you the magazine you need to make and optimize your dream gaming carriage, without gratuitous complexity. the new TUF GAMING B660 motherboards give a high- performance gaming package with a long list of features with including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you produce a substantiated gaming atmosphere. the rearmost ASUS TUF Gaming B660M-E D4 motherboard offers 03 times bond.
