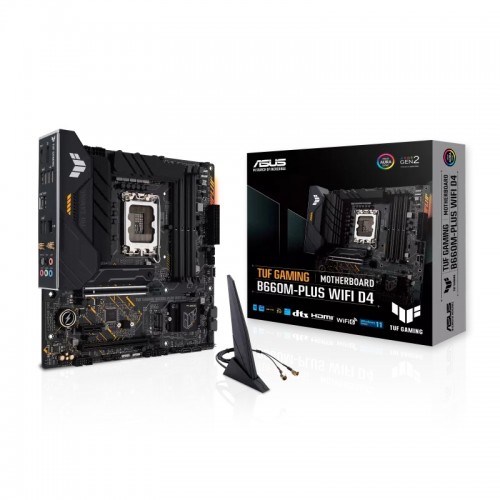

ASUS TUF GAMING B660M-PLUS WIFI D4 12th Gen mATX Motherboard
- Price: 0৳
- Stock: Discountinued
- Brand: Asus
- Model: TUF GAMING B660M-PLUS WIFI D4
What is The Latest ASUS TUF GAMING B660M-PLUS WIFI D4 12th Gen mATX Motherboard Price in Bangladesh?
The Asus TUF GAMING B660M-PLUS WIFI D4 Motherboard price 2024 in bangladesh is in today's 07-11-2024 BD market. Buy original ASUS TUF GAMING B660M-PLUS WIFI D4 12th Gen mATX Motherboard at the lowest price from Sell Tech- সেল টেক website or visit our shop. The ASUS TUF GAMING B660M-PLUS WIFI D4 12th Gen mATX Motherboard manufacturing by Asus comes with warranty and reviewed by 0 users. Follow us on Facebook for regular updates & Offer. Subscribe our YouTube Channel for product reviews.Description
ASUS TUF GAMING B660M-PLUS WIFI D4 12th Gen mATX Motherboard
The ASUS TUF GAMING B660M-PLUS WIFI D4 is supported with 12th Gen Intel Core, Pentium Gold and Celeron Processors, Intel Socket LGA1700 socket. It comes with upgraded power delivery and comprehensive cooling options to drive the 12th Gen Intel Core processors, plus support for faster memory and storehouse. The onboard VRMs feature 10 1 DrMOS power stages that combine high- side and low- side MOSFETs and motorists into a single package, delivering the power and effectiveness that 12th Gen Intel Core processors demand. The ASUS TUF GAMING B660M-PLUS WIFI D4 provides a high- performance gaming package with a long list of features to ameliorate your gests, including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you produce a substantiated gaming atmosphere. It offers an enlarged VRM heatsink, Stack Cool 3,M. 2 heatsinks, PCH heatsink, cold-blooded addict heads, and Fan Xpert 4 mileage. It comes with PCIe5.0 niche, PCIe4.0M. 2 places, hinder USB3.2 Gen 2x2 Type-C, frontal panel title for USB3.2 Gen 2 Type-C, and Thunderbolt 4 title support. It supports Two- way AI Noise- Cancelation. It reduces background noise from the microphone and audio affair for demitasse-clear communication in games or videotape conferences. The ASUS TUF GAMING B660M-PLUS WIFI D4 comes with 3 times of bond.
Specifications
Motherboard Basic Info | |
BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
Motherboard Basic Information | |
Supported CPU | Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
Chipset | Intel B660 Chipset |
Expansion Slots | |
PCI | Intel 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel B660 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x1 slot |
Memory Specifications | |
Type | DDR4 |
Motherboard Memory Info | |
Supported Memory | 5333(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II |
Motherboard Graphics Info | |
Graphics | 1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4) 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1) |
Connector & Ports (MB) | |
USB (s) | Rear USB:Total 8 ports Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 4 x USB 3.2 Gen 2 ports (4 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB:Total 7 ports Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt header |
Supported Storage | Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 - Intel 12th Gen processors support PCIe 4.0 x4 mode. Intel B660 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. ** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots. |
Warranty Information | |
Manufacturing Warranty | 3 years |
