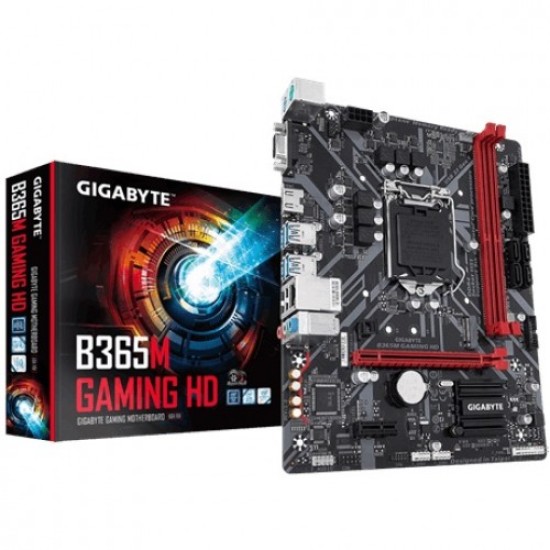

Gigabyte B365M Gaming HD 9th Gen Motherboard
- Brand:: Gigabyte
- Product Code:: Gigabyte B365M Gaming HD Motherboard
- Status: In Stock
- Price: 8,000Tk
- Regular Price: 9,600Tk
Features
- Model: Gigabyte B365M Gaming
- Supports 9th and 8th Gen Processor
- Dual Channel Non-ECC Unbuffered
- RAM Slot-2 x DDR4 DIMM
- Ultra-Fast M.2 with PCIe Gen3 X4
Gigabyte B365M Gaming HD 9th Gen Motherboard
The Gigabyte B365M Gaming Micro ATX may be a ultra durable motherboard compatible with Intel 9th and 8th gen core i3, i5 i7 and i9 processor with supported Dual Channel DDR4 maximum 32GB memory motherboard has the potential of Ultra-Fast M.2 with PCIe Gen3 X4 & SATA interface. Considering the graphics, it'll support integrated Intel HD Graphics having 1GB shared graphics memory with max resolution of 1920 x 1200 @ 60 Hz DVI-D & D-Sub port and 4096x2160@30 Hz of HDMI ports. This latest motherboard has the power of USB 3.1 Gen 1 ports, USB 2.0/1.1 ports and Intel Optane Memory Ready. For extreme level of gaming it's GIGABYTE 8118 Gaming LAN, PCIe Gen3 x4 M.2 and Smart Fan 5.
Buy latest Gigabyte 8th gen motherboards at the best price in Rangpur, Chattagram, Dhaka & Sylhet. Oder your favorite mainboard for your gaming rig from Sell Tech online shop and have the delivery at anywhere you reside in Bangladesh.
| Motherboard Basic Info | |
| PCI | 1 x PCI Express x16 slot, running at x16 1 x PCI Express x1 slot (All of the PCI Express slots conform to PCI Express 3.0 standard.) |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | Micro ATX Form Factor; 22.6cm x 18.5cm |
| Motherboard Basic Information | |
| Supported CPU | Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package |
| Chipset | Intel® B365 Express Chipset |
| Expansion Slots | |
| M.2 Socket | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) |
| Memory Specifications | |
| Type | Dual channel memory architecture |
| Graphics Specifications | |
| Max Shared Memory | Maximum shared memory of 1 GB |
| Motherboard Memory Info | |
| Slots | 2 x DDR4 DIMM |
| Supported Memory | Support for Extreme Memory Profile (XMP) memory modules * To support 2666 MHz or XMP memory, you must install a 9th or 8th Generation Intel® Core™ i9/i7/i5 processor. |
| Connectivity | |
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz |
| Motherboard Graphics Info | |
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.2. |
| Connector & Ports (MB) | |
| USB (s) | 6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
| LAN Port (s) | 1 x RJ-45 port Realtek GbE LAN chip (10/100/1000 Mbit) |
| Audio | Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x Clear CMOS jumper |
| D-Sub (s) | 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz |
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. Intel® Optane™ Memory |
| Others | |
| Bundled Software | Realtek 8118 Gaming LAN Bandwidth Control Utility |
| Warranty Information | |
| Manufacturing Warranty | 03 years |
