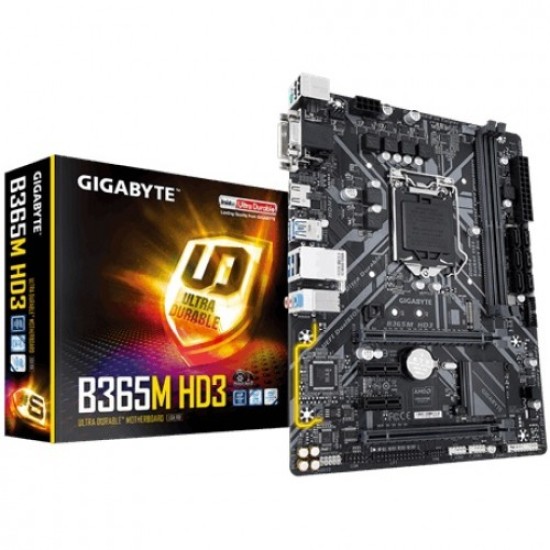

Gigabyte B365M HD3 9th Gen Motherboard

  • Brand:: Gigabyte
  • Product Code:: Gigabyte B365M HD3 Motherboard
  • Status: In Stock
  • Price: 8,000Tk
  • Regular Price: 8,500Tk

Features

  • Model: Gigabyte B365M HD3
  • Supports 9th and 8th Gen Processor
  • Hybrid Digital PWM Design
  • RAM Slot-2 x DDR4 DIMM
  • PCI Slot- 4 x PCI Express
View More Info!
8,000Tk
Cash Discount Price

Gigabyte B365M HD3 9th Gen Motherboard

The Gigabyte B365M HD3 Micro ATX ultra durable motherboard compatible with Intel 9th and 8th gen core i3, i5 i7 and i9 processor with supported Dual Channel DDR4 maximum 32GB memory motherboard has the potential of Ultra-Fast M.2 with PCIe Gen3 X4 & SATA interface. Considering the graphics, it'll support integrated Intel HD Graphics having 1GB shared graphics memory with max resolution of 1920 x 1200 @ 60 Hz DVI-D & D-Sub port and 4096x2160@30 Hz of HDMI ports. This latest motherboard has the power of USB 3.1 Gen 1 ports, USB 2.0/1.1 ports and Intel Optane Memory Ready. For extreme level of gaming it's GIGABYTE 8118 Gaming LAN, PCIe Gen3 x4 M.2 and Smart Fan 5.


Buy latest Gigabyte 8th gen motherboards at the best price in Rangpur, Chattagram, Dhaka & Sylhet. Oder your favorite mainboard for your gaming rig from Sell Tech online shop and have the delivery at anywhere you reside in Bangladesh.

Motherboard Basic Info
PCI 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot, running at x4 (PCIEX4) 2 x PCI Express x1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.)
BIOS 2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 18.5cm
Motherboard Basic Information
Supported CPU Support for 9th and 8th Generation Intel® Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/ Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1151 package
Chipset Intel® B365 Express Chipset
Expansion Slots
M.2 Socket 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)
Memory Specifications
Type Dual channel memory architecture
Graphics Specifications
Max Shared Memory Maximum shared memory of 1 GB
Motherboard Memory Info
Slots 2 x DDR4 DIMM
Supported Memory Support for DDR4 2666/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules * To support 2666 MHz or XMP memory, you must install a 9th or 8th Generation Intel® Core™ i9/i7/i5 processor.
Connectivity
HDMI 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
Motherboard Graphics Info
Graphics 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.2.
Connector & Ports (MB)
USB (s) 6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s) 1 x RJ-45 port Realtek GbE LAN chip (10/100/1000 Mbit)
Audio Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel Support for RAID 0, RAID 1, RAID 5, and RAID 10
Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x parallel port header 1 x serial port header 1 x Clear CMOS jumper
D-Sub (s) 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
DVI-D (s) 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
Supported Storage 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) 6 x SATA 6Gb/s connectors * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. Intel® Optane™ Memory Ready
Others
Special Features Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. 3D OSD @BIOS AutoGreen Cloud Station EasyTune Easy RAID Fast Boot Game Boost ON/OFF Charge Platform Power Management RGB Fusion Smart Backup Smart Keyboard Smart TimeLock Smart HUD Smart Survey System Information Viewer USB Blocker V-Tuner Support for Q-Flash Support for Xpress Install
Warranty Information
Manufacturing Warranty 03 years

Gigabyte B365M HD3 9th Gen Motherboard

The Gigabyte B365M HD3 Micro ATX ultra durable motherboard compatible with Intel 9th and 8th gen core i3, i5 i7 and i9 processor with supported Dual Channel DDR4 maximum 32GB memory motherboard has the potential of Ultra-Fast M.2 with PCIe Gen3 X4 & SATA interface. Considering the graphics, it'll support integrated Intel HD Graphics having 1GB shared graphics memory with max resolution of 1920 x 1200 @ 60 Hz DVI-D & D-Sub port and 4096x2160@30 Hz of HDMI ports. This latest motherboard has the power of USB 3.1 Gen 1 ports, USB 2.0/1.1 ports and Intel Optane Memory Ready. For extreme level of gaming it's GIGABYTE 8118 Gaming LAN, PCIe Gen3 x4 M.2 and Smart Fan 5.


Buy latest Gigabyte 8th gen motherboards at the best price in Rangpur, Chattagram, Dhaka & Sylhet. Oder your favorite mainboard for your gaming rig from Sell Tech online shop and have the delivery at anywhere you reside in Bangladesh.
