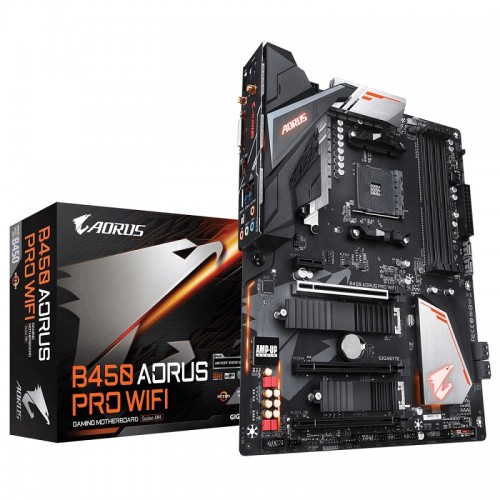

Gigabyte B450 AORUS PRO WIFI AMD ATX Motherboard

  • Brand:: Gigabyte
  • Product Code:: Gigabyte B450 AORUS PRO WIFI AMD Motherboard
  • Status: In Stock
  • Price: 12,500Tk
  • Regular Price: 13,300Tk

Features

  • Model: B450 AORUS PRO WIFI
  • CPU: AMD Ryzen
  • Chipset: AMD B450
  • Memory: 4 x DDR4, Max 64 GB
  • 4 x PCI Express slots
View More Info!
12,500Tk
Cash Discount Price

Gigabyte B450 AORUS PRO WIFI ATX AMD AM4 socket ryzen series CPU supported Dual Channel DDR4 maximum 64GB memory motherboard has the potential of Dual Ultra-Fast NVMe PCIe Gen3 M.2 (x4, x2) with Dual Thermal Guards and RGB FUSION with Multi-Zone LED display Design that supports Digital LED & RGB LED Strips. Considering the graphics, it'll support HDMI, DVI-D Ports for Multiple Display having maximum resolution of 1920x1200@60 Hz for DVI-D & 4096x2160@60 Hz for HDMI and 1920x1200@60 Hz for DVI-D port. This top quality ALC1220-VB Enhanced 114dB(Rear) / 110dB(Front) SNR in Microphone with WIMA Audio Capacitors with Integrated I/O Shield of Ultra Durable™ Design motherboard has the power of Intel® GbE LAN with cFosSpeed Internet Accelerator Software, Smart Fan 5 Features 6 Temperature Sensors and 5 Hybrid Fan Headers with FAN STOP, APP Center Including EasyTune™ and Cloud Station™ Utilities and CEC 2019 Ready for saving Power with an easy Click.


Purchase Gigabyte B450 AORUS PRO WIFI board with 3 years of warranty facility at the best price in Bangladesh. Shop online and place your order at our online shop to possess this exclusive AMD gaming mainboard for yor PC.

Motherboard Basic Info
PCI PCI 1 x PCI Express x16 slot, running at x16 (PCIEX16) * Actual support may vary by CPU. * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 1 x PCI Express x16 slot, running at x4 (PCIEX4) * The PCIEX4 slot shares bandwidth with the PCIEX1_1 and PCIEX1_2 slots. The PCIEX4 slot operates at up to x2 mode when the PCIEX1_1/PCIEX1_2 slot is populated. The PCIEX4 slot operates at up to x4 mode when both of the PCIEX1_1 and PCIEX1_2 slots are empty. 1 x PCI Express x16 slot, running at x1 (PCIEX1_2) 1 x PCI Express x1 slot (PCIEX1_1) (The PCIEX4 and PCIEX1 slots conform to PCI Express 2.0 standard.)
BIOS 2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Motherboard Basic Information
Supported CPU AMD Ryzen™ 2nd Generation processors AMD Ryzen™ with Radeon™ Vega Graphics processors AMD Ryzen™ 1st Generation processors
Chipset AMD B450
Expansion Slots
M.2 Socket 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SOCKET) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 3.0 x2 SSD support)(M2B_SOCKET)
Memory Specifications
Type Dual Channel DDR4 Memory Technology
Graphics Specifications
Max Shared Memory 16 GB
Motherboard Memory Info
Slots 4 x DIMM
Supported Memory Support for DDR4 3200(O.C.)/2933/2667/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modulesx`
Connectivity
HDMI 1 x HDMI
Motherboard Graphics Info
Graphics 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.2. * Actual support may vary by CPU.
Connector & Ports (MB)
USB (s) Chipset: 1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support 1 x USB 3.1 Gen 2 Type-A port (red) on the back panel 2 x USB 3.1 Gen 1 ports available through the internal USB header 4 x USB 2.0/1.1 ports available through the internal USB headers CPU: 4 x USB 3.1 Gen 1 ports on the back panel
LAN Port (s) Intel® GbE LAN chip (10/100/1000 Mbit) Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band BLUETOOTH 4.2 Support for 11ac wireless standard and up to 433 Mbps data rate * Actual data rate may vary depending on environment and equipment. 1 x M.2 Socket 1 connector for a wireless communication module (M2_WIFI)
Audio Realtek® ALC1220-VB codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 2 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x CPU fan header 1 x water cooling CPU fan header 2 x system fan headers 1 x system fan/water cooling pump header 1 x CPU cooler LED strip/RGB LED strip header 2 x digital LED strip headers 2 x digital LED strip power select jumpers 1 x RGB (RGBW) LED strip header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only) 1 x Clear CMOS jumper
DVI-D (s) 1 x DVI-D
Supported Storage 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SOCKET) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 3.0 x2 SSD support)(M2B_SOCKET) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

Gigabyte B450 AORUS PRO WIFI ATX AMD AM4 socket ryzen series CPU supported Dual Channel DDR4 maximum 64GB memory motherboard has the potential of Dual Ultra-Fast NVMe PCIe Gen3 M.2 (x4, x2) with Dual Thermal Guards and RGB FUSION with Multi-Zone LED display Design that supports Digital LED & RGB LED Strips. Considering the graphics, it'll support HDMI, DVI-D Ports for Multiple Display having maximum resolution of 1920x1200@60 Hz for DVI-D & 4096x2160@60 Hz for HDMI and 1920x1200@60 Hz for DVI-D port. This top quality ALC1220-VB Enhanced 114dB(Rear) / 110dB(Front) SNR in Microphone with WIMA Audio Capacitors with Integrated I/O Shield of Ultra Durable™ Design motherboard has the power of Intel® GbE LAN with cFosSpeed Internet Accelerator Software, Smart Fan 5 Features 6 Temperature Sensors and 5 Hybrid Fan Headers with FAN STOP, APP Center Including EasyTune™ and Cloud Station™ Utilities and CEC 2019 Ready for saving Power with an easy Click.


Purchase Gigabyte B450 AORUS PRO WIFI board with 3 years of warranty facility at the best price in Bangladesh. Shop online and place your order at our online shop to possess this exclusive AMD gaming mainboard for yor PC.
