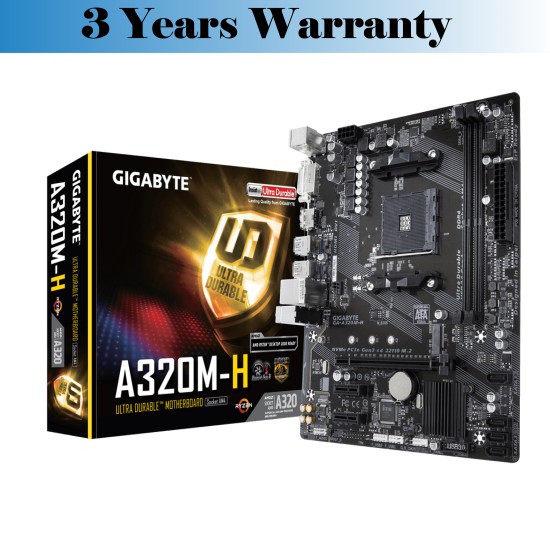

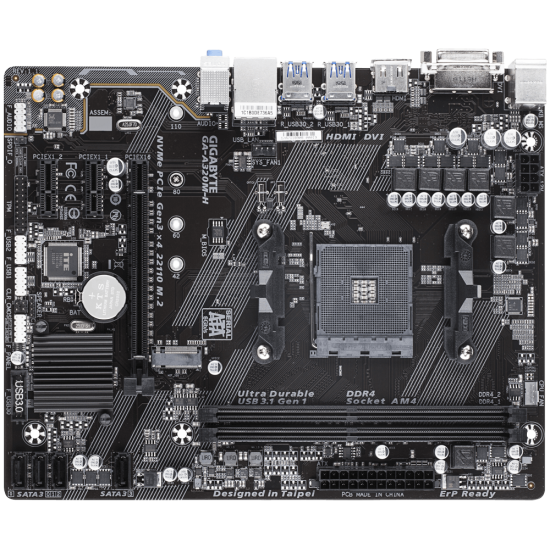

Gigabyte GA-A320M-H AMD Micro ATX Motherboard
- Price: 5,900৳
- Stock: Up Coming
- Brand: Gigabyte
- Model: Gigabyte GA-A320M-H
What is The Latest Gigabyte GA-A320M-H AMD Micro ATX Motherboard Price in Bangladesh?
The Gigabyte Gigabyte GA-A320M-H Motherboard price 2024 in bangladesh is in today's 29-03-2024 BD market. Buy original Gigabyte GA-A320M-H AMD Micro ATX Motherboard at the lowest price from Selltech website or visit our shop. The Gigabyte GA-A320M-H AMD Micro ATX Motherboard manufacturing by Gigabyte comes with warranty and reviewed by 0 users. Follow us on Facebook for regular updates & Offer. Subscribe our YouTube Channel for product reviews.Description
Shop Gigabyte GA-A320M-H AMD Motherboard at Best Price in Bangladesh
Gigabyte A320M-H AMD Motherboard has some Special Features: Supported up to 64 GB Ram DDR-4 though have 2 Ram Slot. This Motherboard has a 32 GB Single Ram Support Capacity. M.2 Slot has on A320M-H AMD Motherboard. Ryzen 2nd or 3rd Generation all Processor you can use on this board. High-Quality Audio capacitors and noise guard Facilities also have This Motherboard. 3-year Replacement Warranty.
গিগাবাইট ব্র্যান্ডের এই মাদারবোর্ডটি রাইজেনের Ryzen 3 2200G , Ryzen 5 2400G, Ryzen 3 3200G,athlone 200Ge, Athlone 3000G, Ryzen 3 1200 Processor গুলার জন্য উত্তম হবে তবে AM4 Socket এর সকল প্রসেসর সাপোর্ট করবে । ৬৪ টি পর্যন্ত র্যাম ব্যবহার করার সুযোগ থাকলেও ১৬ জিবি পর্যন্ত র্যাম ব্যবহার করা ভালো হবে, ২৬৬৬ বাস বা ২৪০০ বাসের র্যাম যথেষ্ট হলেও ৩২০০ বাসের র্যাম ব্যবহার করতে পারবেন। হার্ড ডিস্ক , এসএসডি বা এম ডট টু ব্যবহার করতে পারবেন । স্মার্ট ফ্যান ৫ সহ বেশ কিছু সুবিধা আছে এই মাদারবোর্ডে ।
Specifications
Motherboard Basic Info | |
PCI | 1 x PCI Express x16 slot, running at x16 (PCIEX16) * Actual support may vary by CPU. (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 2 x PCI Express x1 slots (The PCI Express x1 slots conform to PCI Express 2.0 standard.) |
BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Form Factor | Micro ATX Form Factor; 24.4cm x 19.5cm |
Motherboard Basic Information | |
Supported CPU | AMD Ryzen™ processor AMD 7th Generation A-series/ Athlon™ processor |
Chipset | AMD A320 |
Expansion Slots | |
M.2 Socket | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2* SSD support) * Actual support may vary by CPU. * Supports only M.2 SATA SSDs when using an AMD Athlon™ 200-series/ 7th Generation A-series or Athlon™ APU. |
Memory Specifications | |
Type | Dual-channel memory architecture |
Graphics Specifications | |
Max Shared Memory | 2 GB |
Motherboard Memory Info | |
Slots | 2 x DDR4 DIMM |
Maximum Memory | 64 GB |
Motherboard Graphics Info | |
Graphics | 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz * Support for HDMI 1.4 version. |
Connector & Ports (MB) | |
HDMI | 1 x HDMI port |

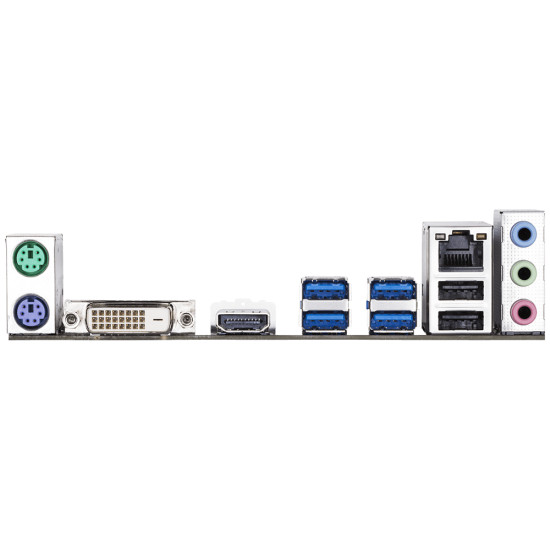

USB (s) | Chipset: 2 x USB 3.1 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) CPU: 4 x USB 3.1 Gen 1 ports on the back panel |
LAN Port (s) | Realtek® GbE LAN chip (10/100/1000 Mbit) |
Audio | Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out |
Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only) 1 x speaker header 1 x Clear CMOS jumper 1 x chassis intrusion header |
Supported Storage | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2* SSD support) * Actual support may vary by CPU. * Supports only M.2 SATA SSDs when using an AMD Athlon™ 200-series/ 7th Generation A-series or Athlon™ APU. 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 connector. |
Warranty Information | |
Manufacturing Warranty | 03 years |
