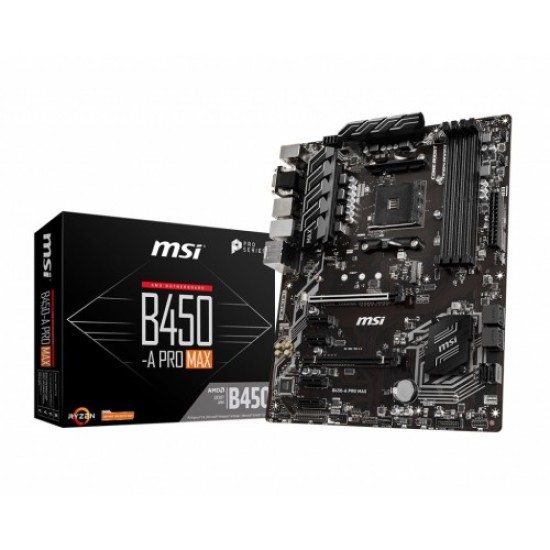

MSI B450-A PRO MAX AMD AM4 Motherboard

  • Brand:: MSI
  • Product Code:: MSI B450-A PRO MAX
  • Status: In Stock
  • Price: 9,450Tk
  • Regular Price: 10,090Tk

Features

  • Model: MSI B450-A PRO MAX
  • Supports 1st, 2nd and 3rd Gen AMD Ryzen
  • AMD B450 Chipset
  • Turbo M.2 & Audio Boost Technology
  • Multi-GPU & Core Boost Technology
View More Info!
9,450Tk
Cash Discount Price

প্রোডাক্ট অর্ডারের পূর্বে সাপোর্ট থেকে স্টক এবং ডেলিভারি সম্পর্কে জেনে অর্ডার করার জন্যে অনুরোধ করা যাচ্ছে।

MSI B450-A PRO MAX AMD AM4 Motherboard

The MSI B450-A PRO-M2 motherboard may be a solid choice for building a system supported AMD Ryzen processors for AM4 socket. it's every factor instead of only one or two which are improved. Exclusive Core Boost technology allows for straightforward CPU overclocking while DDR4 Boost technology ensures stable memory performance. Enjoy ultra-fast storage speed by installing PCI-E SSD using the M.2 slot. Both data transfer and charging via USB are going to be accelerated for fewer wait time. The PCI-E steel slots are ready for long, heavy graphics card. The purest audio are going to be reproduced to allow you to aim your enemies precisely. Every MSI motherboards are certified by strict mechanic that feature convenient pin-header exclude zone, friendly SATA & USB location for compatibility with the widest range of components and devices, so DIY user can pick and choose the components they need . quite that, we provide a fanatical Qualified Vendor List (QVL) for the foremost critical part - memory. Combining with MSI DDR4 Boost technology, we offer the utmost compatibility even over clocking, so you confirm and choose any gaming rig as you would like . Cooling your PC is important for reliable performance. MSI motherboards feature excellent power design with solid and heavy conductor . We've made bound to include enough fan headers with full control to permit you to chill your system any way you would like . MSI motherboards allow you to manage speeds and temperatures for all of your system and CPU fans. Total Fan Control allows you check your primary system characteristics during a simplified graphical interface. you'll also found out to 4 temperature targets for CPU and motherboard, which can adjust the fan speeds automatically. PRO Series motherboards combine stable functionality and top quality assembly for clever business solutions. Designed to satisfy any professional workflow, PRO Series motherboards make life easier for businesses and office use.

This extreme device comes with 3 years warranty.

Motherboard Basic Info
Form Factor ATX 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Motherboard Basic Information
Supported CPU Supports 1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics/ 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4
Chipset AMD B450 Chipset
System Hardware
Graphics 1 x VGA port, support a maximum resolution of 2048x1280 @60Hz,1920x1200 @60Hz 1 x DVI-D port, support a maximum resolution of 1920x1200 @60Hz 1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz Only support when using Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics processors Supports 2-Way AMD CrossFire Technology
Expansion Slots
M.2 Socket 1 x M.2 slot (Key M)1 Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) or PCIe 3.0 x2 (Athlon with Radeon Vega Graphics) and SATA 6Gb/s standards 2242/ 2260/ 2280/ 22110 storage device
Expansion Slots
PCI 1 x PCIe 3.0 x16 slot (PCI_E1) 1st, 2nd and 3rd Gen AMD Ryzen support x16 mode Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics support x8 mode Athlon with Radeon Vega Graphics support x4 mode 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode) 4 x PCIe 2.0 x1 slots
Graphics Specifications
Max Shared Memory 2048 MB
Motherboard Memory Info
Slots 4 x DDR4 memory slots
Supported Memory Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC) For AMD Ryzen Gen3 (R5/R7/R9) Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/ 4133 MHz(by A-XMP OC MODE) For AMD Other CPU Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz(by A-XMP OC MODE) Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode)
Connector & Ports (MB)
HDMI 1 x HDMI 1.4 port 4096x2160 @30Hz, 2560x1600 @60Hz
USB (s) AMD B450 Chipset 2 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel 2 x USB 3.2 Gen1 (SuperSpeed USB) ports available through the internal USB 3.2 Gen1 connector 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) AMD CPU 2 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel
LAN Port (s) 1 x Realtek 8111H Gigabit LAN controller
Audio Realtek ALC892 Codec 7.1-Channel High Definition Audio
Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 6 x SATA 6Gb/s connectors 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports) 1 x USB 3.2 Gen1 connectors (support additional 2 USB 3.2 Gen1 ports) 1 x 4-pin CPU fan connector 1 x 4-pin water-pump-fan connector 4 x 4-pin system fan connectors 1 x TPM module connector 1 x Front panel audio connector 2 x System panel connectors 1 x Serial port connector 1 x Parallel port connector 1 x Chassis Intrusion connector 1 x Clear CMOS jumper 1 x 5050 RGB LED strip 12V connector
DVI-D (s) 1 x DVI-D port, support a maximum resolution of 1920x1200 @60Hz
Supported Storage AMD CPU 2 x SATA 6Gb/s ports1 1 x M.2 slot (Key M)1 Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) or PCIe 3.0 x2 (Athlon with Radeon Vega Graphics) and SATA 6Gb/s standards 2242/ 2260/ 2280/ 22110 storage device AMD B450 Chipset 4 x SATA 6Gb/s ports
Warranty Information
Manufacturing Warranty 03 Years Warranty

MSI B450-A PRO MAX AMD AM4 Motherboard

The MSI B450-A PRO-M2 motherboard may be a solid choice for building a system supported AMD Ryzen processors for AM4 socket. it's every factor instead of only one or two which are improved. Exclusive Core Boost technology allows for straightforward CPU overclocking while DDR4 Boost technology ensures stable memory performance. Enjoy ultra-fast storage speed by installing PCI-E SSD using the M.2 slot. Both data transfer and charging via USB are going to be accelerated for fewer wait time. The PCI-E steel slots are ready for long, heavy graphics card. The purest audio are going to be reproduced to allow you to aim your enemies precisely. Every MSI motherboards are certified by strict mechanic that feature convenient pin-header exclude zone, friendly SATA & USB location for compatibility with the widest range of components and devices, so DIY user can pick and choose the components they need . quite that, we provide a fanatical Qualified Vendor List (QVL) for the foremost critical part - memory. Combining with MSI DDR4 Boost technology, we offer the utmost compatibility even over clocking, so you confirm and choose any gaming rig as you would like . Cooling your PC is important for reliable performance. MSI motherboards feature excellent power design with solid and heavy conductor . We've made bound to include enough fan headers with full control to permit you to chill your system any way you would like . MSI motherboards allow you to manage speeds and temperatures for all of your system and CPU fans. Total Fan Control allows you check your primary system characteristics during a simplified graphical interface. you'll also found out to 4 temperature targets for CPU and motherboard, which can adjust the fan speeds automatically. PRO Series motherboards combine stable functionality and top quality assembly for clever business solutions. Designed to satisfy any professional workflow, PRO Series motherboards make life easier for businesses and office use.

This extreme device comes with 3 years warranty.
