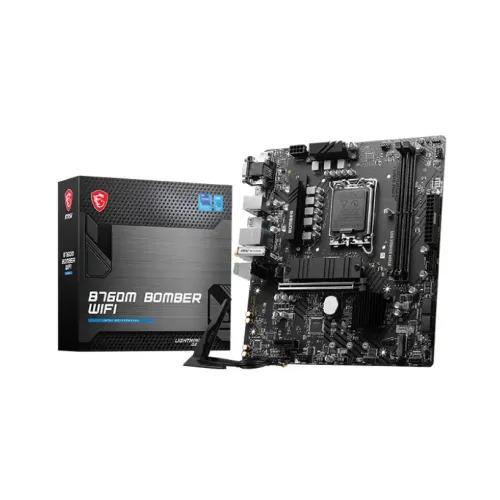

MSI B760M BOMBER WIFI mATX Motherboard

MSI B760M BOMBER WIFI mATX Motherboard
Save: 1300৳
MSI B760M BOMBER WIFI mATX Motherboard
  • Stock: In Stock
  • Price:  19,100৳
  • Regular Price:  20,400৳
  • Product id:  3295
  • Brand: MSI
  • Model: B760M BOMBER WIFI
Based on 0 reviews. - Write a review
Payment Option
Add to Cart
Buy Now Add to cart
Add to Wish List Add to Compare
  • Supported CPU: 14th/ 13th/13th Gen Intel Processors (LGA1700)
  • Supported RAM: 2x DDR5, Max 192GB 6400+MHz (OC)
  • Graphics Output: 1x HDMI, 1x DisplayPort, 1x D-Sub
  • Features: 2x M.2 slot, 2.5G LAN with Wi-Fi 6E
View more info
Specification
Motherboard Basic Info
Supported CPU Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA1700
Chipset INTEL B760
Form Factor mATX 220mmx243.84mm
Expansion Slots
PCI 5x PCI-E x16 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)
Motherboard Memory Info
Type DDR5
Motherboard Memory Info
Slots 2
Supported Memory Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 6400+ MHz • 1DPC 2R Max speed up to 5600+ MHz Supports Intel® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory
Maximum Memory 96GB
Connectivity
Display Port 1x DisplyaPort
HDMI 1x HDMI
Motherboard Graphics Info
Graphics 1x HDMI Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz 1x D-Sub Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
Connector & Ports (MB)
USB (s) 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front)
LAN Port (s) Realtek RTL8125B 2.5Gbps LAN
Internal I/O Ports 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Printer Port (JLPT) 1x Com Port (JCOM) 1x TBT connector (JTBT, supports RTD3) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen1 Type C ports
D-Sub (s) 1x D-Sub
Supported Storage 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G
Audio
Audio Output Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Others
Special Features 4x EZ Debug LED
Warranty Information
Manufacturing Warranty 3 Years
