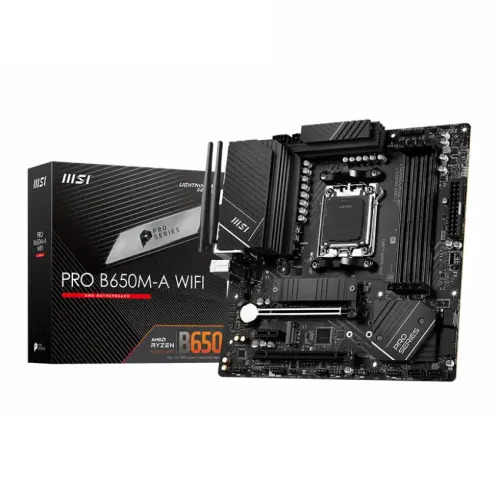

MSI PRO B650M-A WIFI DDR5 AMD AM5 mATX Motherboard

save 7730 ৳
MSI PRO B650M-A WIFI DDR5 AMD AM5 mATX Motherboard
- Offer Price: 19,400৳
- Price: 27,130৳
- Stock: In Stock
- Brand: MSI
- Model: PRO B650M-A WIFI
- Warranty: 3 Years
Featured Description:
Model: PRO B650M-A WIFI Supported CPU: Ryzen 7000 Series Processors for Socket AM5 Supported RAM: 4x DDR5, up to 6400+(OC) MHz Graphics Output: 1x HDMI, 1x Display Port Features: 2.5G LAN with Wi-Fi 6E Solution
19,400৳
27,130৳
Specification
Motherboard Basic Info | |
PCI | 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 PCIe 4.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 PCIe 4.0 supports up to x4 (From Chipset) |
Chipset | AMD B650 |
Form Factor | mATX 243.84mmx243.84mm |
Motherboard Basic Information | |
Supported CPU | Supports AMD Ryzen 7000 Series Desktop Processors Socket AM5 |
Motherboard Memory Info | |
Slots | 4 DIMMs |
Supported Memory | Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6400+ MHz • 1DPC 2R Max speed up to 5800+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO |
Maximum Memory | 128GB |
Motherboard Memory Info | |
Type | DDR5 |
Connectivity | |
USB | 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 4x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) |
Display Port | 1x DisplayPort |
Motherboard Graphics Info | |
Graphics | 1x HDMI 1x DisplayPort Support HDMI 2.1, maximum resolution of 4K 60Hz Supports DP1.4, maximum resolution of 4K 60Hz |
Connector & Ports (MB) | |
HDMI | 1x HDMI |
LAN Port (s) | Realtek 8125BG 2.5G LAN |
Audio | Audio Connectors |
Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 4x USB 2.0 2x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type C |
Supported Storage | 2x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G port |
Others | |
Special Features | 4x EZ Debug LED |
Warranty Information | |
Manufacturing Warranty | 3 Years |
Description
MSI PRO B650M-A WIFI DDR5 AMD AM5 mATX Motherboard
The MSI PRO B650M-A WIFI Motherboard supports AMD's Ryzen 8000 & 7000-series processors with up to 16 Zen 4 cores as well as dual-channel DDR5 memory, with a Maximum Memory Capacity of up to 128GB and a bus speed of up to 6400+(OC) MHz. It features a Core Boost technology that combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supports multi-core CPUs, but also creates the perfect conditions for your CPU overclocking. It has an extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and a Double-sided M.2 Shield Frozr built for a high-performance system and a non-stop gaming experience. The motherboard is made of a 6-layer PCB made of 2oz thickened copper and server-grade level material. It can deliver a lightning-fast game experience with PCIe 4.0 slots, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster. The rear I/O panel now offers easy ways of directly entering the safe boot, a one-click toggle for all RGB lights, and directly activating Turbo mode. The MSI PRO B650M-A WIFI offers Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1. The MAG B650 series motherboards offer a wide variety of options to connect and boost your USB devices, offering never before seen USB speeds up to 20Gb/s when connecting the Rear USB Type-C. The MSI PRO B650M-A WIFI comes with 3 years of warranty.
