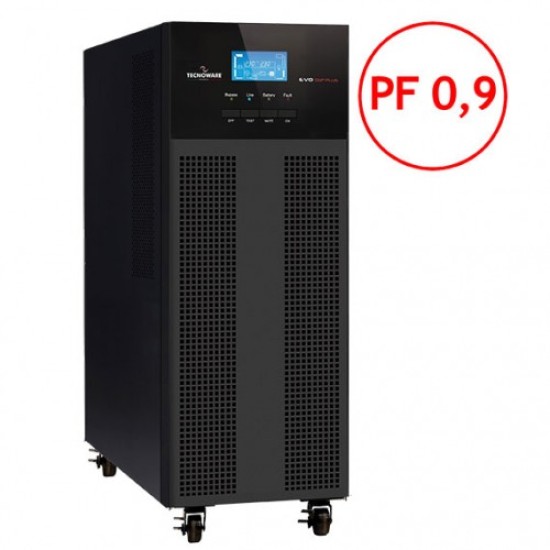

Tecnoware FGCEVDP6003MM Online UPS (Made in Italy)
- Brand:: Technoware
- Product Code:: FGCEVDP6003MM
- Status: In Stock
- Price: 81,000Tk
Features
- Model: FGCEVDP6003MM
- Nominal power 6 KVA
- Active Power 5.4 KW
- Compatible with Generators
- USB and RS232 ports
Tecnoware FGCEVDP6003MM UPS On-Line Double Conversion Technology Without transformer (VFI-SS-111). Power Factor 0,9. Rectifier realized by IGBT technology. Active PFC Circuit (0.99). Compatible with Generators. Output voltage and frequency are often regulated from the front panel. Static Bypass. USB and RS232 ports.
01 Year warranty
Main Features | |
Capacity | Nominal power 6 KVA Active power 5.4 KW |
Load Capacity | Overload capability (Line mode) 110% for 30 minutes, 130% for 5 minutes, >130% for 10 seconds Overload capability (Battery mode) 110% for 3 minutes, 130% for 30 seconds, >130% for 10 seconds |
Input Voltage | Input voltage range 176Vac-300Vac dal 50% al 100% di carico, 110Vac-300Vac fi no al 50% di carico |
Frequency (Battery Mode) | 50/60 Hz |
Noise Level | < 48 dBA to 1 m |
Battery | 12V 9Ah, Lead acid, sealed |
Rectifier Type | Yes |
Input Features | |
Frequency | Nominal frequency 50/60 Hz (selectable) Input frequency range (On-Line mode) ±7% |
Power Factor | 0,99 |
Voltage Range | Nominal voltage 208Vac/220Vac/230Vac/240Vac Input voltage range 176Vac-300Vac dal 50% al 100% di carico, 110Vac-300Vac fi no al 50% di carico |
Output Features | |
Backup Time | 15 min |
Voltage Range | Voltage Regulation at %100 ±2% linear load (On-Line and Battery mode) Voltage THD at rated linear load <3% (linear load), <6% (non-linear load) |
Transfer Time | 0 ms (On-Line) |
Warranty Information | |
Warranty | 01 Year Warranty |
Tecnoware FGCEVDP6003MM UPS On-Line Double Conversion Technology Without transformer (VFI-SS-111). Power Factor 0,9. Rectifier realized by IGBT technology. Active PFC Circuit (0.99). Compatible with Generators. Output voltage and frequency are often regulated from the front panel. Static Bypass. USB and RS232 ports.
01 Year warranty
