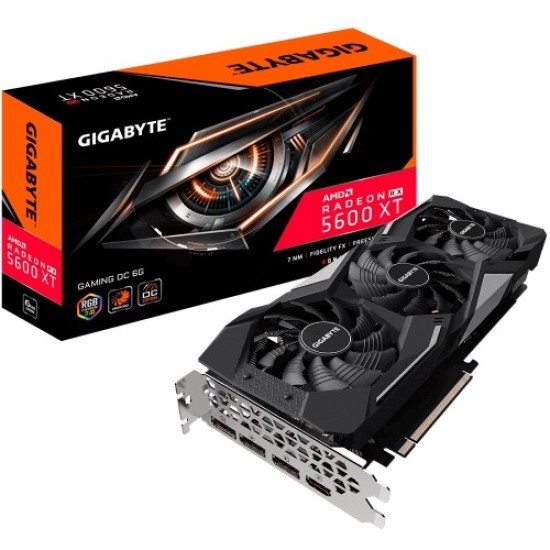

Gigabyte Radeon RX 5600 XT Gaming OC 6GB Graphics Card
- Brand:: Gigabyte
- Product Code:: Gigabyte Radeon RX 5600 XT
- Status: Up Coming
- Price: 31,800Tk
- Regular Price: 34,720Tk
Features
- Gigabyte Radeon RX 5600 XT
- PCI Express 4.0 x16
- 6GB 192-Bit GDDR6
- WINDFORCE 3X Cooling System
- 3 x Display Port 1.4, 1 x HDMI 2.0b
Gigabyte Radeon RX 5600 XT Gaming OC 6GB Graphics Card
The WINDFORCE 3X cooling system features 3x 80mm unique blade fans, alternate spinning fan, 5 composite copper heat pipes, heat-pipe direct touch and 3D active fan functionality, together delivering an efficient cooling capacity for higher performance at lower temperatures. The GIGABYTE “Alternate Spinning” is that the only solution which will solve the turbulent airflow of three fans. the most important problem with the three fans is turbulence. Since the fans rotate within the same direction, the airflow direction is opposite between the fans, which can cause turbulent airflow and reduce cooling efficiency. GIGABYTE turns the center fan within the other way , in order that the airflow direction between the 2 fans is that the same, reducing the turbulence and enhancing the airflow pressure. The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow. The 3D Active Fan provides semi-passive cooling, and therefore the fans will remain off when the GPU is during a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is sidelight or idle. the form of the pure copper heat pipes maximize the direct contact area with the GPU, enhancing heat transfer. the warmth pipes also cover the VRAM through an outsized metal plate contact to make sure proper cooling. The composite heat-pipe combines thermal conductivity and phase change to efficiently manage the warmth transfer between two solid interfaces which increases cooling capacity. No stuttering. No tearing. Just gaming. Radeon™ FreeSync technology puts an end to choppy gameplay and broken frames with fluid, artifact-free performance at virtually any framerate. A seamless thanks to replay gameplay. Radeon Graphics’ sophisticated power management utility. Bringing cool and quiet frames on countless number of games.
Video Memory Specifications | |
Size | 6 GB |
Memory Clock | 12000 MHz |
BUS Type | 192 bit |
Resolution | 7680 x 4320 @ 60 Hz |
Core Clock | Boost Clock : up to 1620 MHz Game Clock : 1560 MHz |
Memory Interface | PCI-E 4.0 x 16 |
Stream Processors | 2304 |
External Features | |
Dimensions | L=279.85 W=114.35 H=49.55 mm |
Memory Specifications | |
Type | GDDR6 |
Interface Configuration | |
HDMI | 1 x HDMI 2.0b |
Audio/Video Features | |
Others | Process Technology: 7 nm |
Connectivity | |
Display Port | 3 x DisplayPort 1.4 |
Power Specifications | |
Recommended PSU | 450W |
Connectors | 1 x 8-pin |
Display Option | |
Multi Display | up to 4 Display |
Application Programming Interfaces | |
DirectX | 12 |
OpenGL | 4.6 |
Warranty Information | |
Manufacturing Warranty | 02 Years Warranty |
Gigabyte Radeon RX 5600 XT Gaming OC 6GB Graphics Card
The WINDFORCE 3X cooling system features 3x 80mm unique blade fans, alternate spinning fan, 5 composite copper heat pipes, heat-pipe direct touch and 3D active fan functionality, together delivering an efficient cooling capacity for higher performance at lower temperatures. The GIGABYTE “Alternate Spinning” is that the only solution which will solve the turbulent airflow of three fans. the most important problem with the three fans is turbulence. Since the fans rotate within the same direction, the airflow direction is opposite between the fans, which can cause turbulent airflow and reduce cooling efficiency. GIGABYTE turns the center fan within the other way , in order that the airflow direction between the 2 fans is that the same, reducing the turbulence and enhancing the airflow pressure. The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow. The 3D Active Fan provides semi-passive cooling, and therefore the fans will remain off when the GPU is during a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is sidelight or idle. the form of the pure copper heat pipes maximize the direct contact area with the GPU, enhancing heat transfer. the warmth pipes also cover the VRAM through an outsized metal plate contact to make sure proper cooling. The composite heat-pipe combines thermal conductivity and phase change to efficiently manage the warmth transfer between two solid interfaces which increases cooling capacity. No stuttering. No tearing. Just gaming. Radeon™ FreeSync technology puts an end to choppy gameplay and broken frames with fluid, artifact-free performance at virtually any framerate. A seamless thanks to replay gameplay. Radeon Graphics’ sophisticated power management utility. Bringing cool and quiet frames on countless number of games.
