MSI B560M PRO 10th and 11th Gen Micro ATX Motherboard
- Price: 11,000৳
- Stock: In Stock
- Brand: MSI
- Model: B560M PRO
What is The Latest MSI B560M PRO 10th and 11th Gen Micro ATX Motherboard Price in Bangladesh?
The MSI B560M PRO MSI ( Intel ) price 2024 in bangladesh is in today's 13-05-2024 BD market. Buy original MSI B560M PRO 10th and 11th Gen Micro ATX Motherboard at the lowest price from Sell Tech website or visit our shop. The MSI B560M PRO 10th and 11th Gen Micro ATX Motherboard manufacturing by MSI comes with warranty and reviewed by 0 users. Follow us on Facebook for regular updates & Offer. Subscribe our YouTube Channel for product reviews.Description

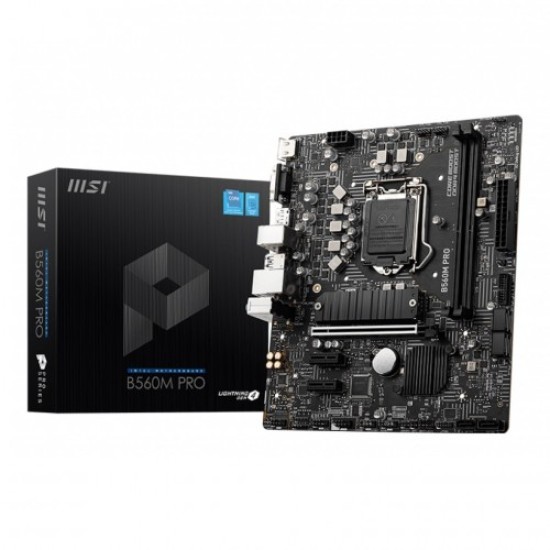

MSI B560M PRO 10th and 11th Gen Micro ATX Motherboard
The rearmost MSI B560M PRO Motherboard supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold, and Celeron processors for LGA 1200 socket, DDR4 Memory, up to 5066 (OC) MHz. This motherboard featured Core Boost With a decoration layout and digital power design to support more cores and give better performance. Then used Advanced technology to deliver pure data signals for the stylish performance and stability. This motherboard has PCIe4.0, Lightning Gen4 x4M. 2 withM. 2 Shield Frozr that provides you Lightning Fast Experience. By2.5 G LAN, you can Upgrade network result for professional and multimedia use that delivers a secure, stable and fast network connection. Then, Audio Boost rewards your cognizance with plant- grade sound quality. This motherboard has Steel Armor that Guarding VGA cards against bending for better performance, stability, and strength. This rearmost MSI PRO series motherboards are designed for professional and satisfy workflow. The MSI B560M PRO 10th and 11th Gen Micro ATX Motherboard has 03 times of bond.
Specifications
Motherboard Basic Info | |
BIOS | 1x 256 Mb flash UEFI AMI BIOS ACPI 6.2, SMBIOS 3.0 Multi-language |
Form Factor | mATX Form Factor 9.3 in. x 8.0 in. (23.6 cm x 20.2 cm) |
Motherboard Basic Information | |
Supported CPU | Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold, and Celeron Processors Processor socket LGA1200 |
Chipset | Intel B560 chipset |
Expansion Slots | |
M.2 Socket | 1x M.2 slot (Key M) |
Expansion Slots | |
PCI | 1x PCIe x16 slot (From CPU) Support up to PCIe 4.0 for 11th Gen Intel CPU Support up to PCIe 3.0 for 10th Gen Intel CPU 2x PCIe 3.0 x1 slots (From B560 chipset) |
Motherboard Memory Info | |
Type | DDR4 |
Motherboard Memory Info | |
Slots | 2x DDR4 memory slots |
Supported Memory | Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5200 MHz 1DPC 2R Max speed up to 4700+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) |
Maximum Memory | Up to 64GB |
Motherboard Graphics Info | |
Graphics | 1x VGA port, supports a maximum resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz |
Connector & Ports (MB) | |
HDMI | 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz |
USB (s) | 6x USB 2.0 ports (2 Type-A port on the back panel, 4 ports available through internal USB 2.0 connectors) 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports available through internal USB 3.2 Gen1 connector) |
LAN Port (s) | 1x Realtek 8125B 2.5Gbps LAN controller |
Internal I/O Ports | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 1x M.2 slot (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x Serial port connector 1x Tuning Controller Connector |
Supported Storage | 6x SATA 6Gb/s ports (From B560 chipset) 1x M.2 slot (Key M)1 Supports up to PCIe 4.0 x4 for 11th Gen Intel® CPU (From CPU) Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel CPU (From B560 chipset)1 Supports 2242/ 2260/ 2280 storage devices Supports Intel Smart Response Technology for Intel Core processors |
Warranty Information | |
Manufacturing Warranty | 03 years warranty |
