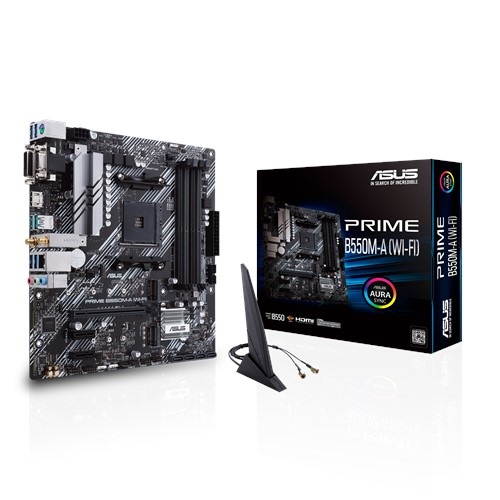

Asus Prime B550M-A Wi-Fi AMD Micro ATX Motherboard

  • Brand:: Asus
  • Product Code:: Asus Prime B550M-A Wi-Fi
  • Status: In Stock
  • Price: 14,800Tk
  • Regular Price: 15,500Tk

Features

  • Model: Asus Prime B550M-A Wi-Fi
  • AMD AM4 socket: Ready for 3rd Gen AMD Ryzen Processors
  • Aura Sync RGB
  • Ultrafast connectivity
  • Comprehensive cooling
View More Info!
14,800Tk
Cash Discount Price

প্রোডাক্ট অর্ডারের পূর্বে সাপোর্ট থেকে স্টক এবং ডেলিভারি সম্পর্কে জেনে অর্ডার করার জন্যে অনুরোধ করা যাচ্ছে।

Asus Prime B550M-A Wi-Fi AMD Micro ATX Motherboard

ASUS Prime series is expertly engineered to unleash the complete potential of the 3rd Generation AMD Ryzen platform. Boasting a strong power design, comprehensive cooling solutions and intelligent tuning options, Prime B550 series motherboards provide daily users and DIY PC builders a variety of performance tuning options via intuitive software and firmware features. Comprehensive controls form the inspiration of the ASUS Prime series. The Prime B550 motherboard packs flexible tools to tune every aspect of your system, enabling you to tweak performance settings to perfectly match the way you're employed – maximizing your productivity. Prime B550 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to make sure your rig stays cool and stable under intense workloads. A VRM heatsink with underneath thermal pad improves heat transfer from the MOSFETs and chokes for better cooling performance. Prime B550 motherboard provides all the basics to spice up daily productivity, so your system are going to be ready for action with stable power, intuitive cooling, and versatile transfer options. PCIe 4.0 M.2 Slot supports up to 22110 and provides NVMe SSD RAID support for a fantastic performance boost. Create a RAID configuration with up to PCIe 4.0 memory device to enjoy the fastest data-transfer speeds on the 3rd Generation AMD Ryzen platform. Prime B550 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that permit you customize your system to make a uniquely personal look. Intelligent design and premium hardware create audio quality, unlike anything you have ever experienced. Separates analog/digital signal domains, significantly reducing multi-lateral interference. Ensures minimal crosstalk between audio paths. Premium parts provide an immersive sound signature, with exceptional fidelity.

Motherboard Basic Info
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Form Factor mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm)
Motherboard Basic Information
Supported CPU Build-in AMD AM4 Socket for 3rd Gen AMD Ryzen and 3rd Gen AMD Ryzen with Radeon Graphics Processors
Chipset AMD B550
Expansion Slots
PCI 3rd Gen AMD Ryzen Processors 1 x PCIe 4.0 x16 (x16 mode) 3rd Gen AMD Ryzen with Radeon Graphics Processors 1 x PCIe 3.0 x16 (x16 mode) AMD B550 Chipset 2 x PCIe 3.0 x1
Expansion Slots
M.2 Socket 3rd Gen AMD Ryzen Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support 3rd Gen AMD Ryzen with Radeon Graphics Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support AMD B550 Chipset : 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
Motherboard Memory Info
Slots 4 x DDR4 memory slots
Supported Memory 3rd Gen AMD Ryzen Processors 4600(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200/3000/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors 4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/ 4600(O.C)/ 4466(O.C.)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200/3000/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory
Maximum Memory 128GB
Motherboard Memory Info
Type Dual channel memory architecture
Motherboard Graphics Info
Graphics 1 x D-Sub 1 x DVI-D 1 x HDMI 2.1(4K@60HZ)
Connector & Ports (MB)
HDMI 1 x HDMI 2.1(4K@60HZ)
USB (s) Rear USB Port ( Total 6 ): 2 x USB 3.2 Gen 2 port(s)(2 x Type-A) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) Front USB Port ( Total 6 ): 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 4 x USB 2.0 port(s)(4 x Type-A)
LAN Port (s) Realtek RTL8111H 1Gb Ethernet Wireless Data Network: Intel Wi-Fi 6 AX200 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO Supports up to 2.4Gbps max data rate Supports dual band frequency 2.4/5 GHz Supports channel bandwidth: HT20/HT40/HT80/HT160 Supports PCIe interface Bluetooth: Bluetooth v5.1
Audio Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : - LED-illuminated design - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors
Internal I/O Ports 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 2 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode) 1 x SPI TPM header 4 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header 1 x Speaker connector
D-Sub (s) 1 x D-Sub
DVI-D (s) 1 x DVI-D
Supported Storage Total supports 2 x M.2 slot(s) and 4 x SATA 6Gb/s ports 3rd Gen AMD Ryzen Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support 3rd Gen AMD Ryzen with Radeon Graphics Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support AMD B550 Chipset : 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10
Others
Special Features Software Features: ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 2+ - EZ update ASUS CPU-Z AI Charger DAEMON Tools Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode ASUS Special Features: ASUS 5X PROTECTION III - ASUS DIGI+ VRM - ASUS LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot Core - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-Slot ASUS Thermal Solution - Aluminum heatsink design AURA Sync - Standard RGB headers - Addressable Gen 2 RGB header ASUS Lighting Control
Warranty Information
Manufacturing Warranty 03 Years Warranty

Asus Prime B550M-A Wi-Fi AMD Micro ATX Motherboard

ASUS Prime series is expertly engineered to unleash the complete potential of the 3rd Generation AMD Ryzen platform. Boasting a strong power design, comprehensive cooling solutions and intelligent tuning options, Prime B550 series motherboards provide daily users and DIY PC builders a variety of performance tuning options via intuitive software and firmware features. Comprehensive controls form the inspiration of the ASUS Prime series. The Prime B550 motherboard packs flexible tools to tune every aspect of your system, enabling you to tweak performance settings to perfectly match the way you're employed – maximizing your productivity. Prime B550 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to make sure your rig stays cool and stable under intense workloads. A VRM heatsink with underneath thermal pad improves heat transfer from the MOSFETs and chokes for better cooling performance. Prime B550 motherboard provides all the basics to spice up daily productivity, so your system are going to be ready for action with stable power, intuitive cooling, and versatile transfer options. PCIe 4.0 M.2 Slot supports up to 22110 and provides NVMe SSD RAID support for a fantastic performance boost. Create a RAID configuration with up to PCIe 4.0 memory device to enjoy the fastest data-transfer speeds on the 3rd Generation AMD Ryzen platform. Prime B550 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that permit you customize your system to make a uniquely personal look. Intelligent design and premium hardware create audio quality, unlike anything you have ever experienced. Separates analog/digital signal domains, significantly reducing multi-lateral interference. Ensures minimal crosstalk between audio paths. Premium parts provide an immersive sound signature, with exceptional fidelity.
