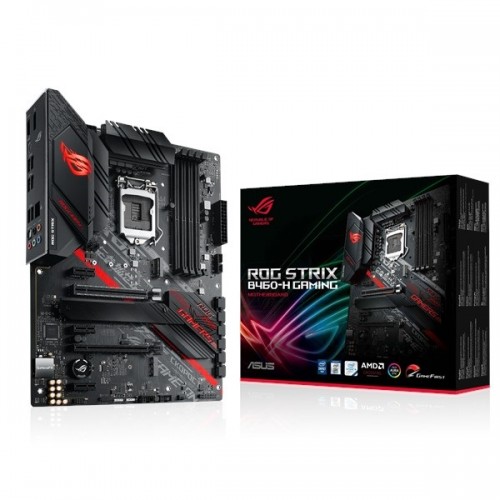

Asus ROG Strix B460-H Gaming Intel 10th Gen ATX Motherboard
- Price: 0৳
- Stock: Up Coming
- Model: Asus ROG Strix B460-H
- Model: Asus ROG Strix B460-H
- DualPCIe 3.0 M.2
- Intel LGA 1200 Socket
- Aura Sync RGB Lighting
- Alloy Choke & Capacitor
Specification
Motherboard Basic Info | |
BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
Form Factor | ATX Form Factor: 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm) |
Motherboard Basic Information | |
Supported CPU | Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 |
Chipset | Intel B460 |
Expansion Slots | |
PCI | Intel 10th Gen Processors: 1 x PCIe 3.0 x16 Intel B460 Chipset: 1 x PCIe 3.0 x16 (x4 mode) 3 x PCIe 3.0 x1 |
Expansion Slots | |
M.2 Socket | 1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) |
Memory Specifications | |
Type | Dual channel memory architecture |
Motherboard Memory Info | |
Supported Memory | Support for DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Supports Intel Extreme Memory Profile (XMP) OptiMem |
Maximum Memory | 128 GB |
Motherboard Graphics Info | |
Graphics | Integrated Graphics Processor 1 x DisplayPort 1.4 1 x HDMI 1.4b Supports AMD 2-Way CrossFireX Technology |
Connector & Ports (MB) | |
HDMI | 1 x HDMI 1.4b |
USB (s) | Rear USB Port ( Total 7 ) 1 x USB 3.2 Gen 2x2 port(s)(1 x USB Type-C) 6 x USB 3.2 Gen 1 port(s)(6 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s) 4 x USB 2.0 port(s) |
Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC - Dual OP Amplifiers - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/192kHz playback Audio Feature : - SupremeFX Shielding Technology - Rear audio USB Type-C port - Premium Japanese audio capacitors - Audio Cover |
Internal I/O Ports | 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x AAFP connector 1 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 2 x M.2 Socket 3 1 x M.2 with E key for Wi-Fi module 6 x SATA 6Gb/s connector(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x System panel connector |
Supported Storage | Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports Intel B460 Chipset : 1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel Optane Memory Ready |
Others | |
Special Features | Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - ASUS Q-DIMM - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - ASUS Q-Slot ASUS Thermal Solution - Aluminum M.2 heatsink ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - Procool - Pre-mounted I/O shield - SafeSlot AURA Sync - Standard RGB header(s) - Addressable Gen 2 RGB header(s) Rear audio USB Type-C connector |
Warranty Information | |
Manufacturing Warranty | 03 Years |
Description
Asus ROG Strix B460-H Gaming Intel 10th Gen ATX Motherboard
ROG Strix B460-H Gaming motherboard is incontinently recognizable with its classic red-and-black color scheme and futuristic cybertext markings. It's packed with all the rudiments, including robust tackle and intuitive ROG software to make it ideal for gamers and builders of all situations. The robust power design and comprehensive cooling features of Strix B460-H Gaming insure great each-round performance, and an intuitive dashboard gives you full networking control so you can harness the full eventuality of your figure. Teamed power stages combine high- side and low- side MOSFETs and motorists into a single package, delivering the power and effectiveness that the rearmost Intel processors demand. The ProCool socket is erected to exacting specifications to insure flush contact with the PSU power lines, enabling lower impedance and better heat dispersion. Superior chokes and durable capacitors are finagled to repel extreme temperatures and give up to 110 better performance than the assiduity standard. ROG Strix B460-H Gaming provides you with the rearmost connectivity for supersmooth online gests and blisteringly fast train transfers. The superior audio performance gives you a massive advantage, allowing you to pick up on the lowest audio cues for a fully immersive gaming experience. The cyberpunk- inspired aesthetics of ROG Strix B460-H Gaming are accentuated with bold gashes and cybertext. By pairing your carriage with other products from the different ROG ecosystem, you can produce a completely customized gaming setup that reflects your particular style. Patented I/ O guard is finished in satiny matte black and comespre-mounted to make it easy to install on the motherboard. Four onboard LEDs indicate power status and any problem with the CPU, memory, plates card, or charge device for quick opinion. The corroborated ASUS SafeSlot provides stronger PCIe device retention and lesser shearing resistance. ROG-exclusive software serviceability deliver intuitive audio tuning and gaming advancements so you can configure your gaming make the way you want. The famed ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your carriage. It offers intelligently simplified options for beginners to PC DIY, as well as comprehensive features for seasoned stagers.
