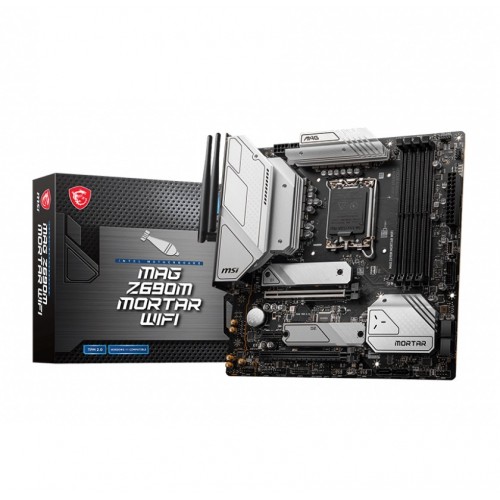

MSI MAG Z690M MORTAR WIFI 12th Gen Micro-ATX Motherboard
- Price: 0৳
- Stock: Out Of Stock
- Brand: MSI
- Model: MAG Z690M MORTAR WIFI
What is The Latest MSI MAG Z690M MORTAR WIFI 12th Gen Micro-ATX Motherboard Price in Bangladesh?
The MSI MAG Z690M MORTAR WIFI Motherboard price 2024 in bangladesh is in today's 04-05-2024 BD market. Buy original MSI MAG Z690M MORTAR WIFI 12th Gen Micro-ATX Motherboard at the lowest price from Selltech website or visit our shop. The MSI MAG Z690M MORTAR WIFI 12th Gen Micro-ATX Motherboard manufacturing by MSI comes with warranty and reviewed by 0 users. Follow us on Facebook for regular updates & Offer. Subscribe our YouTube Channel for product reviews.Description
MSI MAG Z690M MORTAR WIFI 12th GenMicro-ATX Motherboard
The MSI Diurnal Z690M MORTAR WIFI Motherboard supports 12th Gen Intel Core/ Pentium Celeron processors for LGA 1700 socket. It supports DDR5 Memory, up to 6666 (OC) MHz. A huge step of DDR performance improvement with the rearmost DDR5 memory. Combines with a devoted SMT welding process and MSI Memory Boost technology, Diurnal Z690M MORTAR WIFI is ready to deliver world- class memory performance. It delivers a Lightning Fast Game experience with PCIe5.0 places, Lightning Gen 4 x4M. 2, USB3.2 Gen 2x2. It comes with an Enhanced Power Design. Direct 18 1 1 phases power, binary 8- leg CPU power connectors, Core Boost, Memory Boost. It's equipped with an enlarged heatsink with heat pipe, MOSFET thermal pads rated for 7W/ mk, fresh choke thermal pads, andM. 2 Shield Frozr are erected for a high- performance system andnon-stop gaming experience.16.8 million colors/ fancy lighting goods can be controlled in one click. Jeremiah LIGHT SYNC supports RGB, RAINBOW (ARGB), Freebooter LED strips, and Ambient bias. The MSI Diurnal Z690M MORTAR WIFI comes with a2.5 G LAN with LAN Manager and Intel Wi-Fi 6E Result. Upgraded network result for professional and multimedia use. Delivers a secure, stable and fast network connection.2.5 Gbps LAN provides inconceivable data transfer speed briskly than general Gigabit LAN. This is a decoration result for demanding druggies. It has an 8- subcaste PCB made of 2oz thickened bobby and garçon- grade position material. The MSI Diurnal Z690M MORTAR WIFI comes with 3 times of bond.
Specifications
Motherboard Basic Info | |
Form Factor | Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) |
Motherboard Basic Information | |
Supported CPU | Supports 12th Gen Intel Core, Pentium Gold and Celeron Processors Processor socket LGA1700 |
Chipset | Intel Z690 Chipset |
Expansion Slots | |
PCI | 2x PCIe x16 slots PCI_E1 slot (From CPU) Supports PCIe 4.0 x16 PCI_E3 slot (From Z690 Chipset) Supports PCIe 3.0 x4 1x PCIe 3.0 x1 slot |
Memory Specifications | |
Type | DDR5 |
Motherboard Memory Info | |
Supported Memory | Supports 1R 4800 MHz (by JEDEC & POR) Max. overclocking frequency: 1DPC 1R Max speed up to 6200+ MHz 1DPC 2R Max speed up to 5200+ MHz 2DPC 1R Max speed up to 4000+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Intel XMP 3.0 OC Supports Dual Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
Motherboard Graphics Info | |
Graphics | 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz Supports 2-Way AMD CrossFire Technology |
Connector & Ports (MB) | |
USB (s) | Intel Z690 Chipset 1x USB 3.2 Gen2x2 20Gbps Type-C port on the back panel 1x USB 3.2 Gen 2 10Gbps Type-C port available through the internal connector 2x USB 3.2 Gen 1 5Gbps ports available through the internal connector 4x USB 2.0 ports on the back panel USB Hub-GL3590 3x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel USB Hub-GL850G 4x USB 2.0 ports available through internal connectors |
Internal I/O Ports | 1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C connector 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 2x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TBT connector (supports RTD3) 1x Tuning Controller connector |
Supported Storage | 4x SATA 6Gb/s ports (SATA5~8, from Z690 Chipset) 2x SATA 6Gb/s ports (SATA_A & SATA_B, from ASMedia ASM1061) 2x M.2 slots (Key M) M2_1 slot (From CPU) Supports PCIe 4.0 x4 Supports 2242/ 2260/ 2280 storage devices M2_2 slot (From Z690 Chipset) Supports PCIe 4.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Supports Intel Optane Memory Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
Warranty Information | |
Manufacturing Warranty | 3 YEARS |
