Asrock B365M-HDV 9th Gen Super Alloy Micro ATX Motherboard

  • Brand:: ASRock
  • Product Code:: Asrock B365M-HDV
  • Status: In Stock
  • Price: 8,100Tk

Features

  • Model: Asrock B365M-HDV
  • Supports 9th and 8th Gen Intel Core processors
  • Max. Memory support: 64GB
  • Chipset: Intel B365
  • Socket 1151
View More Info!
8,100Tk
Cash Discount Price

Asrock B365M-HDV 9th Gen Super Alloy Micro ATX Motherboard

Asrock B365M-HDV 9th and 8th Gen DDR4 Super Alloy Micro ATX Motherboard is built in Socket 1151 and Intel B365 chipset. This Motherboard is supports DDR4 2666 memory, 6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3) and 6 USB 3.1 Gen1 (2 Front, 4 Rear). This motherboard is compatible with ASRock U.2 Kit with HDMI, DVI-D, D-Sub Graphics Output Options, 6 USB 3.1 Gen1 (2 Front, 4 Rear), Intel Gigabit LAN and it supports 1 PCIe 3.0 x16, 2 PCIe 3.0 x1.

The Main Component of the Motherboard

This Motherboard Supports CPU up to 95W with Intel UHD Graphics. It has Quick Installation Guide, Support CD, I/O Shield, 2 x SATA Data Cables, 1 x Screw for M.2 Socket. For graphical support ,It has DirectX 12. Three graphics output options are added these are D-Sub, DVI-D and HDMI. That Motherboard can supports triple Monitor, HDMI with max. resolution up to 4K x 2K (4096x2160) @ 30Hz, DVI-D with max. resolution up to 1920x1200 @ 60Hz, D-Sub with max. resolution up to 1920x1200 @ 60Hz, Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required), HDCP 2.2 with DVI-D and HDMI 1.4 Ports, 4K Ultra HD (UHD) playback with HDMI 1.4 Port. In this amazing ASRock Motherboard, it has - Micro ATX Form Factor which diemension is 8.9-in x 7.4-in, 22.6 cm x 18.8 cm with Solid Capacitor design. It's Support CD are Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar. Moreover, In this exclusive Motherboard used in different types of memory storage ; these are- Dual Channel DDR4 Memory Technology, 2 x DDR4 DIMM Slots, DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory, ECC UDIMM memory modules (operate in non-ECC mode), Intel Extreme Memory Profile (XMP) 2.0, 15μ Gold Contact in DIMM Slots and it's Max. capacity memopry is 64GB. Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Window 64-bit OS with 64-bit CPU, there is no such limitation. This exclusive motherboard also supports 128Mb AMI UEFI Legal BIOS with multilingual GUI support, ACPI 6.0 Compliant wake up events, SMBIOS 2.7, CPU, GT_CPU, DRAM, PCH 1.05V Voltage Multi-adjustment. The ASRock A-Tuning and ASRock XFast LAN software are supports this B365M-HDV motherboard.

Special Features of this Motherboard That must be considered

Have a look on the special features of this board that might firm your buying decision. This Motherboard supports 6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3) interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports M.2 SATA3 6.0 Gb/s module and is compatible with ASRock’s U.2 Kit for installing. In this Motherboard High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the Motherboard against electrical shorts caused by humidity and also the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity. You can easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop. For gaming or entertainment these are the features one should consider of purchasing it.

Motherboard Basic Info
BIOS - 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU, GT_CPU, DRAM, PCH 1.05V Voltage Multi-adjustment
Form Factor - Micro ATX Form Factor: 8.9-in x 7.4-in, 22.6 cm x 18.8 cm - Solid Capacitor Design
Motherboard Basic Information
Supported CPU - Supports 9th and 8th Gen Intel Core Processors (Socket 1151) - Supports CPU up to 95W - Supports Intel Turbo Boost 2.0 Technology
Chipset - Intel B365
Expansion Slots
M.2 Socket - 1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
Motherboard Memory Info
Slots - 2 x DDR4 DIMM Slots - 15μ Gold Contact in DIMM Slots
Supported Memory - Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Max. capacity of system memory: 64GB - Supports Intel Extreme Memory Profile (XMP) 2.0
Maximum Memory 64GB
Motherboard Memory Info
Type - Dual Channel DDR4 Memory Technology
Motherboard Graphics Info
Graphics - Supports Intel UHD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel UHD Graphics - DirectX 12 - HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1 - Three graphics output options: D-Sub, DVI-D and HDMI - Supports Triple Monitor - Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required) - Supports HDCP 2.2 with DVI-D and HDMI 1.4 Ports - Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port
Connector & Ports (MB)
HDMI 1 x HDMI Port
USB (s) Connector: - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection) Rear Panel I/O: - 2 x USB 2.0 Ports (Supports ESD Protection) - 4 x USB 3.1 Gen1 Ports
LAN Port (s) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
Audio - 7.1 CH HD Audio (Realtek ALC887 Audio Codec)* - Supports Surge Protection - ELNA Audio Caps

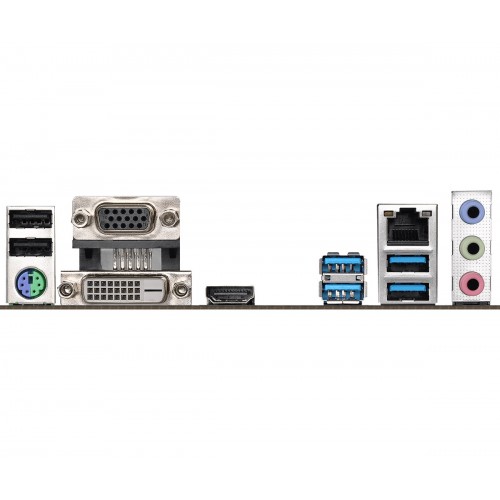

Internal I/O Ports - 1 x PS/2 Mouse/Keyboard Port - 1 x D-Sub Port - 1 x DVI-D Port - 1 x HDMI Port - 2 x USB 2.0 Ports (Supports ESD Protection) - 4 x USB 3.1 Gen1 Ports - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone
D-Sub (s) - 1 x D-Sub Port
DVI-D (s) - 1 x DVI-D Port
Supported Storage - 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 17), NCQ, AHCI and Hot Plug - 1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
Audio
Audio Output Connector: - 1 x Front Panel Audio Connector Rear Panel I/O: - HD Audio Jacks: Line in / Front Speaker / Microphone
Others
Special Features ASRock Super Alloy - Sapphire Black PCB - High Density Glass Fabric PCB ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock Full Spike Protection (for USB, Audio, LAN Ports) ASRock Live Update & APP Shop
Bundled Software - ASRock A-Tuning - ASRock XFast LAN

Asrock B365M-HDV 9th Gen Super Alloy Micro ATX Motherboard

Asrock B365M-HDV 9th and 8th Gen DDR4 Super Alloy Micro ATX Motherboard is built in Socket 1151 and Intel B365 chipset. This Motherboard is supports DDR4 2666 memory, 6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3) and 6 USB 3.1 Gen1 (2 Front, 4 Rear). This motherboard is compatible with ASRock U.2 Kit with HDMI, DVI-D, D-Sub Graphics Output Options, 6 USB 3.1 Gen1 (2 Front, 4 Rear), Intel Gigabit LAN and it supports 1 PCIe 3.0 x16, 2 PCIe 3.0 x1.

The Main Component of the Motherboard

This Motherboard Supports CPU up to 95W with Intel UHD Graphics. It has Quick Installation Guide, Support CD, I/O Shield, 2 x SATA Data Cables, 1 x Screw for M.2 Socket. For graphical support ,It has DirectX 12. Three graphics output options are added these are D-Sub, DVI-D and HDMI. That Motherboard can supports triple Monitor, HDMI with max. resolution up to 4K x 2K (4096x2160) @ 30Hz, DVI-D with max. resolution up to 1920x1200 @ 60Hz, D-Sub with max. resolution up to 1920x1200 @ 60Hz, Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required), HDCP 2.2 with DVI-D and HDMI 1.4 Ports, 4K Ultra HD (UHD) playback with HDMI 1.4 Port. In this amazing ASRock Motherboard, it has - Micro ATX Form Factor which diemension is 8.9-in x 7.4-in, 22.6 cm x 18.8 cm with Solid Capacitor design. It's Support CD are Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar. Moreover, In this exclusive Motherboard used in different types of memory storage ; these are- Dual Channel DDR4 Memory Technology, 2 x DDR4 DIMM Slots, DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory, ECC UDIMM memory modules (operate in non-ECC mode), Intel Extreme Memory Profile (XMP) 2.0, 15μ Gold Contact in DIMM Slots and it's Max. capacity memopry is 64GB. Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Window 64-bit OS with 64-bit CPU, there is no such limitation. This exclusive motherboard also supports 128Mb AMI UEFI Legal BIOS with multilingual GUI support, ACPI 6.0 Compliant wake up events, SMBIOS 2.7, CPU, GT_CPU, DRAM, PCH 1.05V Voltage Multi-adjustment. The ASRock A-Tuning and ASRock XFast LAN software are supports this B365M-HDV motherboard.

Special Features of this Motherboard That must be considered

Have a look on the special features of this board that might firm your buying decision. This Motherboard supports 6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3) interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports M.2 SATA3 6.0 Gb/s module and is compatible with ASRock’s U.2 Kit for installing. In this Motherboard High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the Motherboard against electrical shorts caused by humidity and also the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity. You can easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop. For gaming or entertainment these are the features one should consider of purchasing it.
