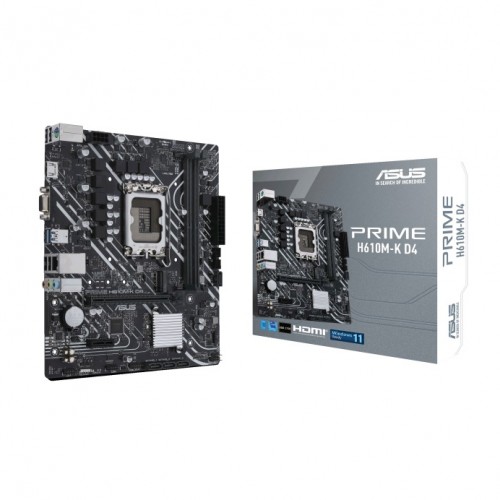

ASUS PRIME H610M-K D4 12th Gen mATX Motherboard

- Offer Price: 11,000৳
- Price: 12,800৳
- Stock: In Stock
- Brand: Asus
- Model: PRIME H610M-K D4
- Model: PRIME H610M-K D4
- Intel LGA 1700 socket: Ready for 12th Gen Intel processors
- PCH heatsink and Fan Xpert
- 32Gbps M.2 slot, Realtek 1 Gb Ethernet
- 5X Protection III
Specification
Motherboard Basic Info | |
BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
Form Factor | mATX Form Factor 9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm ) |
Motherboard Basic Information | |
Supported CPU | Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
Chipset | Intel H610 Chipset |
Expansion Slots | |
PCI | Intel 12th Gen Processors 1 x PCIe 4.0 x16 slot Intel H610 Chipset 1 x PCIe 3.0 x1 slot |
Memory Specifications | |
Type | DDR4 |
Motherboard Memory Info | |
Slots | 2 x DIMM |
Supported Memory | 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) |
Maximum Memory | 64GB |
Connectivity | |
HDMI | 1 x HDMI port |
Motherboard Graphics Info | |
Graphics | 1 x D-Sub port (Supports max. 4K@60Hz as specified in DisplayPort 1.4) 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1) |
Connector & Ports (MB) | |
USB (s) | Rear USB (Total 6 ports) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 4 ports) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports |
Audio | 3 x Audio jacks |
Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports Miscellaneous 1 x RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header |
Supported Storage | Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel H610 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports |
Others | |
Special Features | SUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot ASUS Thermal Solution - Aluminum heatsink design ASUS Lighting Control - RGB header |
Warranty Information | |
Manufacturing Warranty | 3 years |
Description
ASUS PRIME H610M- K D4 12th Gen mATX Motherboard
The ASUS PRIME H610M- K D4 supports 12th Gen Intel processors and Intel LGA 1700 socket and Intel Turbo Boost Technology2.0 and Intel Turbo Boost Max Technology3.0. This motherboard comes with an Enhanced power result, six- subcaste PCB, ProCool socket, military- grade TUF factors, and Digi VRM for maximum continuity. It has a robust power design, comprehensive cooling results, and intelligent tuning options. It features 32 GbpsM.2 niche, Realtek 1 Gb Ethernet, and USB3.2 Gen 1 support. Multiple PCB layers optimize heat operation for critical factors, furnishing further headroom to push CPUs beyond stock pets. The motherboard comes with upgraded power delivery and comprehensive cooling options to drive the 12th Gen Intel Core processors, plus support for faster memory and storehouse, ASUS PRIME H610M- K D4 motherboards are the perfect foundation for your coming high- core- count battle carriage. The TUF GAMING platform gives you the magazine you need to make and optimize your dream gaming carriage, without gratuitous complexity. the new ASUS PRIME H610M- K D4 motherboards give a high- performance gaming package with a long list of features ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you produce a substantiated gaming atmosphere. The rearmost ASUS PRIME H610M- K D4 offers 03 times bond.
