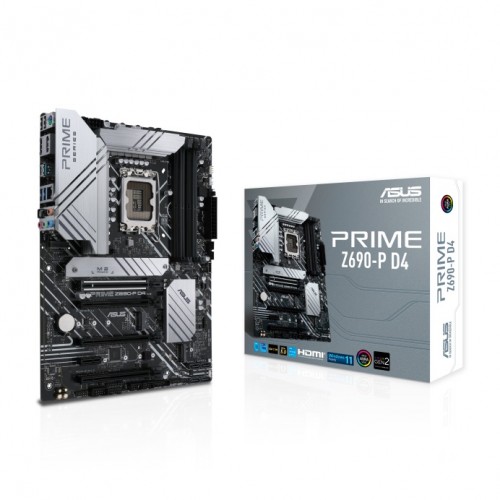

Asus Prime Z690-P D4 12th Gen ATX Motherboard
- Price: 0৳
- Stock: Out Of Stock
- Brand: Asus
- Model: PRIME Z690-P D4
What is The Latest Asus Prime Z690-P D4 12th Gen ATX Motherboard Price in Bangladesh?
The Asus PRIME Z690-P D4 Motherboard price 2024 in bangladesh is in today's 07-11-2024 BD market. Buy original Asus Prime Z690-P D4 12th Gen ATX Motherboard at the lowest price from Sell Tech- সেল টেক website or visit our shop. The Asus Prime Z690-P D4 12th Gen ATX Motherboard manufacturing by Asus comes with warranty and reviewed by 0 users. Follow us on Facebook for regular updates & Offer. Subscribe our YouTube Channel for product reviews.Description
Asus Prime Z690-P D4 12th Gen ATX Motherboard
The Asus Prime Z690-P D4 Motherboard features Intel LGA1700 socket Ready for 12th Gen Intel Core, Pentium Gold, and Celeron Processors. Asus Prime series motherboards are consummately finagled to unleash the full eventuality of 12th Generation Intel processors. It comes with an enhanced power result. 14 1 DrMOS, 8 4 leg ProCool connector, amalgamation chokes, and durable capacitors for stable power delivery. It features Large VRM heatsinks,M. 2 heatsink, PCH heatsink, cold-blooded addict heads, and Fan Xpert 4. The Asus OptiMem II, careful routing of traces and vias, plus ground subcaste optimizations to save signal integrity for bettered memory overclocking The Asus Prime Z690-P D4 is supported with DDR4 memory, PCIe5.0,2.5 Gb Ethernet, USB3.2 Gen2x2 Type-C, frontal panel USB3.2 Gen 2 Type-C, Thunderbolt 4 title support, 4 PCIe4.0M. 2. The Asus Prime Z690-P D4 offers a satiny, futuristic- looking figure with a black and white finish, space-shuttle- inspired design rudiments, metallic nameplate, and PCB cover. Asus 5- Way Optimization makes your PC smart. Along with taking care of complex tuning and stoutly optimizing essential aspects of your system, it provides overclocking biographies that are acclimatized for your carriage. Prime Z690 series is finagled with multiple onboard heatsinks and an array of cold-blooded addict heads to insure your carriage stays cool and stable under violent workloads. TwoM. 2 heatsinks take care of the threeM. 2 places, fending off strangling that can do withM. 2 storehouse during sustained transfers. The Asus Prime Z690-P D4 comes with 3 times of bond.
Specifications
Motherboard Basic Info | |
BIOS | 192 (128+64) Mb Flash ROM, UEFI AMI BIOS |
Motherboard Basic Information | |
Supported CPU | Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold, and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
Chipset | Z690 |
Expansion Slots | |
PCI | Intel 12th Gen Processors 1 x PCIe 5.0/4.0/3.0 x16 slot(s) Intel Z690 Chipset 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x16 slots (support x4 mode) 1 x PCIe 3.0 x1 slot |
Expansion Slots | |
M.2 Socket | Supports 3 x M.2 slots |
Memory Specifications | |
Type | DDR4 |
Motherboard Memory Info | |
Supported Memory | DDR4 5333(OC)/ 5133(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II |
Motherboard Graphics Info | |
Graphics | 1 x DisplayPort (Support max. 4K@60Hz as specified in DisplayPort 1.4) 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1) |
Connector & Ports (MB) | |
USB (s) | Rear USB:Total 6 ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB:Total 9 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x 20-5pin System Panel header 1 x Thunderbolt header |
Supported Storage | Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports Intel 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 - Intel 12th Gen processors support PCIe 4.0 x4 mode. Intel Z690 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports |
Warranty Information | |
Manufacturing Warranty | 3 years |
