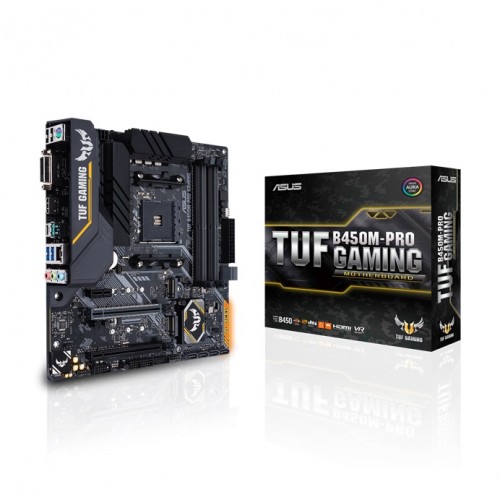

Asus TUF B450M-PRO GAMING AMD AM4 mATX Motherboard
- Price: 0৳
- Stock: Out Of Stock
- Brand: Asus
- Model: TUF B450M-PRO GAMING
Specification
Motherboard Basic Info | |
BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP,SM BIOS 3.1, ACPI 6.1, Multilanguage BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, F3 My Favorite,Last Modified log, F12 PrintScreen,F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory information |
Motherboard Basic Information | |
Supported CPU | AMD AM4 Socket for AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors |
Chipset | AMD B450 |
Expansion Slots | |
PCI | 3rd/2nd/1st Gen AMD Ryzen Processors 1 x PCIe 3.0/2.0 x16 (x16 mode) 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors 1 x PCIe 3.0/2.0 x16 (x8 mode) AMD Athlon with Radeon Vega Graphics Processors 1 x PCIe 3.0/2.0 x16 (max at x4 mode) AMD B450 chipset 1 x PCIe 2.0 x16 (max at x4 mode) 1 x PCIe 2.0 x1 |
Memory Specifications | |
Type | DDR4 |
Motherboard Memory Info | |
Supported Memory | 4400(O.C)/ 3533(O.C)/ 3466(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Un-buffered Memory Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU |
Motherboard Graphics Info | |
Graphics | Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors Multi-VGA output support : HDMI/DVI-D ports - Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz |
Connector & Ports (MB) | |
HDMI | 1 x HDMI |
USB (s) | 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors : 2 x USB 3.1 Gen 1 port(s) (2 at back panel, , Type-A) 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors : 1 x USB 3.1 Gen 1 port(s) (1 at back panel, , USB Type-CTM) AMD B450 chipset : 1 x USB 3.1 Gen 2 port(s) (1 at back panel, ) AMD B450 chipset : 2 x USB 3.1 Gen 1 port(s) (2 at mid-board) AMD B450 chipset : 6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board) |
Internal I/O Ports | 2 x Aura RGB Strip Header 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 2 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x COM port header 1 x Speaker connector |
Supported Storage | 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) AMD Athlon with Radeon Vega Graphics Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode) 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors : 2 x SATA 6Gb/s port(s) Support Raid 0, 1, 10 AMD B450 chipset : 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode) 4 x SATA 6Gb/s port(s) Support Raid 0, 1, 10 |
Warranty Information | |
Manufacturing Warranty | 3 Years |
Description
Asus TUF B450M- PRO GAMING AMD AM4 mATX Motherboard
The Asus TUF B450M- PRO GAMING Motherboard supports AMD AM4 Socket for AMD Ryzen 5000 Series/ 5000 G- Series/ 4000 G- Series/ 3rd/ 2nd/ 1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors. It comes with Aura Sync RGB LED lighting, DDR4 4400 MHz support, DualM. 2, and native USB3.1 Gen 2. This motherboard features an unknown 108dB signal- to- noise rate for the stereo line- eschewal and a 103dB SNR for the line- heft, furnishing pristine audio quality. It offers exclusive DTS Custom audio that delivers positional cues to stereo headphones, helping you to pinpoint adversaries and action. Asus TUF B450M- PRO GAMING Motherboard comes with Addict Xpert 2 that ensures every addict achieves the stylish balance of cooling performance and acoustics. Military- grade TUF chokes deliver gemstone-steady power to the CPU, helping to ameliorate system stability. Its TUF Capacitors offer 20 temperature forbearance and 5X-longer lifetime. Incipiently, TUF MOSFETS are military- grade MOSFETs with lower RDS( on). SafeSlot is the PCIe niche reinvented by ASUS and finagled to give superior retention and shearing resistance. Manufactured in a single step using a new insert- molding process, SafeSlot integrates fortifying essence for an innately stronger niche, which is also forcefully anchored to the PCB through fresh solder points. With x4 PCI runner3.0 bandwidth,M. 2 supports up to 32 Gbps data- transfer pets. A well- tuned system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the erected- in RGB LEDs as well as strips connected to the onboard RGB heads. The Asus TUF B450M- PRO GAMING Motherboard comes with 3 times bond.
