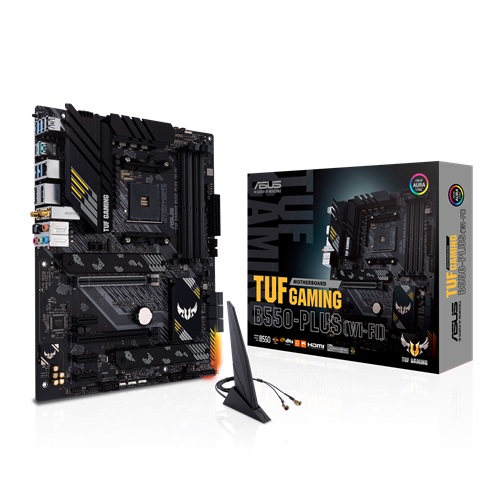

Asus TUF Gaming B550 Plus WI-FI ATX AM4 Motherboard

  • Brand:: Asus
  • Product Code:: Asus TUF Gaming B550 Plus WI-FI
  • Status: In Stock
  • Price: 18,400Tk
  • Regular Price: 19,580Tk

Features

  • Model: Asus TUF Gaming B550 Plus WI-FI
  • AMD AM4 socket for 3rd Gen AMD Ryzen processors
  • 8+2 DrMOS power stages
  • PCIe 4.0, dual M.2
  • Intel Wi-Fi 6, 2.5 Gb Ethernet
View More Info!
18,400Tk
Cash Discount Price

প্রোডাক্ট অর্ডারের পূর্বে সাপোর্ট থেকে স্টক এবং ডেলিভারি সম্পর্কে জেনে অর্ডার করার জন্যে অনুরোধ করা যাচ্ছে।

Asus TUF Gaming B550 Plus WI-FI ATX AM4 Motherboard

The ASUS TUF Gaming B550-Plus (Wi-Fi) distils essential elements of the newest AMD platform and combines them with game-ready features and proven durability. it's engineered with military-grade components, an upgraded power solution and a comprehensive set of cooling options, this motherboard delivers rock-solid performance with unwavering gaming stability. It comes with upgraded power delivery and comprehensive cooling options to fuel the newest AMD Ryzen CPUs, plus support for faster memory and storage. The onboard VRM of TUF Gaming B550-Plus (Wi-Fi) utilizes 8+2 DrMOS power stages that combine high-side and low-side MOSFETs and driver into one package. 2-ounce copper layers draw heat faraway from critical components to stay them at their optimal operating temperatures. The M.2 heatsink keeps the M.2 SSD at the optimum operating temperature for consistent performance and reliability. High-quality thermal pads help transfer heat from the inductor and phase array to the heatsink. It supports PCIe 4.0 M.2 slot and provides NVMe SSD RAID support for a fantastic performance boost. It comes with an integrated Thunderbolt 3 header that supports up to 40 Gbps of the mixture interface bandwidth. It features pristine audio with positional cues for FPS gaming and onboard RGB lighting that syncs with attached accessories to assist you create a customized gaming atmosphere. It comes with a 3 Years Warranty.

Motherboard Basic Info
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) ATX
Motherboard Basic Information
Supported CPU Build-in AMD for AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
Chipset AMD B550
Expansion Slots
PCI AMD Ryzen 5000 Series/ 3000 Series Desktop Processors 1 x PCIe 4.0 x16 (x16 mode) AMD RyzenT 4000 G-Series Processor 1 x PCIe 3.0 x16 (x16 mode) AMD B550 Chipset 1 x PCIe 3.0 x16 (x4 mode) 3 x PCIe 3.0 x1
Expansion Slots
M.2 Socket 1 x M.2 Socket 3, with M key, type 2242/ 2260/ 2280/ 22110 storage devices support (SATA & PCIe 4.0 x4 mode) AMD RyzenT 4000 G-Series Processors : 1 x M.2 Socket 3, with M Key, Type 2242/ 2260/ 2280/ 22110 (PCI-E 3.0 x4 and SATA modes) storage devices support AMD B550 Chipset : 1 x M.2 Socket 3, with M Key, Type 2242/ 2260/ 2280/ 22110 (PCI-E 3.0 x4 and SATA modes) storage devices support
Motherboard Memory Info
Slots 4 x DIMM DDR4
Supported Memory AMD Ryzen 5000 Series/ 3000 Series Desktop Processors 4 x DIMM, Max. 128GB, DDR4 4600(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory * AMD RyzenT 4000 G-Series Processors 4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/ 4600(O.C)/ 4466(O.C.)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU.
Maximum Memory 128GB
Motherboard Memory Info
Type Dual Channel Memory Architecture
Motherboard Graphics Info
Graphics 1 x DisplayPort 1.2 1 x HDMI 2.1(4K@60HZ) Graphics specifications may vary between CPU types.
Connector & Ports (MB)
HDMI 1 x HDMI 2.1(4K@60HZ)
USB (s) Rear USB Port ( Total 8 ) 2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C) 4 x USB 3.2 Gen 1 port(s)( x Type-A) 2 x USB 2.0 port(s)( x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 4 x USB 2.0 port(s)(4 x Type-A)
LAN Port (s) Realtek RTL8125B 2.5Gb Ethernet TUF LANGuard 1 x LAN (2.5G) port(s)
Audio 5 x Audio jack(s)
Internal I/O Ports 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 2 x Aura RGB Strip Headers 2 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x SPI TPM header 6 x SATA 6Gb/s connector(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header
Supported Storage Total supports 2 x M.2 slot(s) and 6 x SATA 6Gb/s ports AMD Ryzen 5000 Series/ 3000 Series Desktop Processors : 1 x M.2 Socket 3, with M key, type 2242/ 2260/ 2280/ 22110 storage devices support(SATA & PCIe 4.0 x4 mode) AMD RyzenT 4000 G-Series Processors : 1 x M.2 Socket 3, with M Key, Type 2242/ 2260/ 2280/ 22110 (PCI-E 3.0 x4 and SATA modes) storage devices support AMD B550 Chipset : 1 x M.2 Socket 3, with M Key, Type 2242/ 2260/ 2280/ 22110 (PCI-E 3.0 x4 and SATA modes) storage devices support*2 6 x SATA 6Gb/s port(s), Support Raid 0, 1, 10
Others
Special Features ASUS TUF PROTECTION - ASUS DIGI+ VRM (Digital power design with Dr. MOS) - ASUS Enhanced DRAM Overcurrent Protection - ASUS ESD Guards - TUF LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - ASUS Q-Slot ASUS Thermal Solution - Aluminum M.2 heatsink ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - Procool AURA Sync - Standard RGB headers - Addressable Gen 2 RGB header
Bundled Software ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - AI Noise Cancelling Microphone AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 4 - EZ update TUF GAMING CPU-Z AI Charger ASUS Turbo LAN DAEMON Tools DTS Custom for GAMING Headsets Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Warranty Information
Manufacturing Warranty 3 years

Asus TUF Gaming B550 Plus WI-FI ATX AM4 Motherboard

The ASUS TUF Gaming B550-Plus (Wi-Fi) distils essential elements of the newest AMD platform and combines them with game-ready features and proven durability. it's engineered with military-grade components, an upgraded power solution and a comprehensive set of cooling options, this motherboard delivers rock-solid performance with unwavering gaming stability. It comes with upgraded power delivery and comprehensive cooling options to fuel the newest AMD Ryzen CPUs, plus support for faster memory and storage. The onboard VRM of TUF Gaming B550-Plus (Wi-Fi) utilizes 8+2 DrMOS power stages that combine high-side and low-side MOSFETs and driver into one package. 2-ounce copper layers draw heat faraway from critical components to stay them at their optimal operating temperatures. The M.2 heatsink keeps the M.2 SSD at the optimum operating temperature for consistent performance and reliability. High-quality thermal pads help transfer heat from the inductor and phase array to the heatsink. It supports PCIe 4.0 M.2 slot and provides NVMe SSD RAID support for a fantastic performance boost. It comes with an integrated Thunderbolt 3 header that supports up to 40 Gbps of the mixture interface bandwidth. It features pristine audio with positional cues for FPS gaming and onboard RGB lighting that syncs with attached accessories to assist you create a customized gaming atmosphere. It comes with a 3 Years Warranty.
