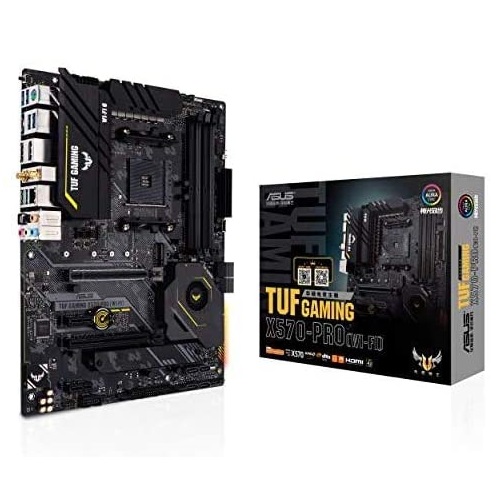

Asus TUF GAMING X570 PRO Wi-Fi AM4 AMD ATX Motherboard
- Price: 0৳
- Stock: Out Of Stock
- Brand: Asus
- Model: TUF GAMING X570 PRO Wi-Fi
Specification
Motherboard Basic Info | |
BIOS | 256Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.2, ACPI 6.2, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, F4 AURA ON/OFF, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information |
Motherboard Basic Information | |
Supported CPU | AMD AM4 Socket for AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors |
Chipset | AMD X570 |
Expansion Slots | |
PCI | 3rd Gen AMD Ryzen Processors 1 x PCIe 4.0 x16 (x16 mode) 2nd Gen AMD Ryzen and 3rd Gen AMD Ryzen with Radeon™ Graphics Processors 1 x PCIe 3.0 x16 (x16 mode) 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors 1 x PCIe 3.0/2.0 x16 (x8 mode) AMD X570 chipset 1 x PCIe 4.0 x16 (max at x4 mode) 2 x PCIe 4.0 x1 |
Expansion Slots | |
M.2 Socket | 3rd Gen AMD Ryzen Processors : 1 x M.2 Socket 3, with M Key, Type 2242/ 2260/ 2280/ 22110 (PCIE 4.0 x4 and SATA modes) storage devices support 2nd Gen AMD Ryzen / 3rd, 2nd and 1st Gen AMD Ryzen with Radeon Graphics Processors : 1 x M.2 Socket 3, with M Key, Type 2242/ 2260/ 2280/ 22110 (PCIE 3.0 x4 and SATA modes) storage devices support AMD X570 chipset : 1 x M.2 Socket 3, with M Key, Type 2242/ 2260/ 2280/ 22110 (PCIE 4.0 x4 and SATA modes) storage devices support |
Memory Specifications | |
Type | DDR4 |
Motherboard Memory Info | |
Supported Memory | 5100(O.C)/ 4800(O.C.)/ 4600(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory Dual Channel Memory Architecture |
Motherboard Graphics Info | |
Graphics | Integrated Graphics in the 3rd, 2nd and 1st Gen AMD Ryzen with Radeon Graphics Processors Multi-VGA output support : HDMI/ DisplayPort ports - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz - Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz 3rd and 2nd Gen AMD Ryzen /3rd, 2nd and 1st Gen AMD Ryzen with Radeon Graphics Processors Supports AMD 2-Way CrossFireX Technology |
Connector & Ports (MB) | |
HDMI | 1 x HDMI |
USB (s) | 4 x USB 3.2 Gen 1 (up to 5Gbps) ports 3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A + USB Type-C) |
Internal I/O Ports | 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 2 x Aura RGB Strip Header(s) 1 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen2 connector support additional 1 USB ports(20-pin, Type-C) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) 8 x SATA 6Gb/s connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x COM port header 1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports |
Supported Storage | 3rd Gen AMD Ryzen Processors : 1 x M.2 Socket 3, with M Key, Type 2242/ 2260/ 2280/ 22110 (PCIE 4.0 x4 and SATA modes) storage devices support 2nd Gen AMD Ryzen / 3rd, 2nd and 1st Gen AMD Ryzen with Radeon Graphics Processors : 1 x M.2 Socket 3, with M Key, Type 2242/ 2260/ 2280/ 22110 (PCIE 3.0 x4 and SATA modes) storage devices support AMD X570 chipset : 1 x M.2 Socket 3, with M Key, Type 2242/ 2260/ 2280/ 22110 (PCIE 4.0 x4 and SATA modes) storage devices support 8 x SATA 6Gb/s port(s) Support Raid 0, 1, 10 |
Warranty Information | |
Manufacturing Warranty | 3 Years |
Description
Asus TUF GAMING X570 PRO Wi- Fi AM4 AMD ATX Motherboard
TUF Gaming X570- Pro( Wi- Fi) distills the essential rudiments of the rearmost AMD platform and combines them with game-ready features and proven continuity. Engineered with military- grade factors, upgraded power results and a comprehensive set of cooling options, these motherboards deliver gemstone-solid performance with unvarying gaming stability. When you make with a TUF Gaming motherboard, you also profit from the TUF Gaming Alliance †” an ASUS collaboration with trusted assiduity mates that ensures easier structure, the stylish comity, and reciprocal aesthetics from factors to case. With upgraded power delivery and comprehensive cooling options to fuel AMD's rearmost CPUs, plus support for faster memory and storehouse, TUF Gaming X570- Pro( Wi- Fi) is the perfect foundation for your coming high- core- count AMD battle carriage. The TUF Gaming X570- Pro( Wi- Fi)'s CPU VRM utilizes 12 2Dr. MOS power stages that combine high- side and low- side MOSFETs and motorists into a single package, delivering the power and effectiveness that AMD's rearmost processors demand. TUF Gaming motherboards are designed to be easy to set up and configure just the way you want, indeed for first- time builders. From the TUF Gaming Alliance ecosystem that makes comity and part- picking easy to a one- stop software gate for all your configurations, TUF Gaming motherboards give you everything you need to make your dream gaming carriage without adding complexity. TUF Gaming Alliance is a collaboration between ASUS and trusted PC- element brands to insure comity with a wide range of corridor, similar as PC cases, power inventories, CPU coolers, memory accoutrements and further. With further hookups and factors being added regularly, the TUF Gaming Alliance will continue to grow indeed stronger. TUF Gaming X570- Pro( Wi- Fi) provides a complete, high- performance gaming package with a long list of features to ameliorate your experience, including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you produce a substantiated gaming atmosphere. The Intel WiFi 6 AX200 module is compatible with the802.11 layoff standard and pushes theoretical peak bandwidth up to an inconceivable2.4 Gbps. maybe more importantly for power druggies, it's optimized for more effective operation on crowded networks with a lot of contending business. Brace your motherboard with ASUS WiFi 6 routers to completely witness the networking eventuality of WiFi 6. Turbo LAN with cFosSpeed business- shaping technology adds indeed further pause- reducing support and an intuitive stoner interface, so you will reduce pause by over to1.45 X †” with no expert knowledge. It indeed includes Game mode to prioritize game- related data transmissions, smoothing network operations every time you play!
