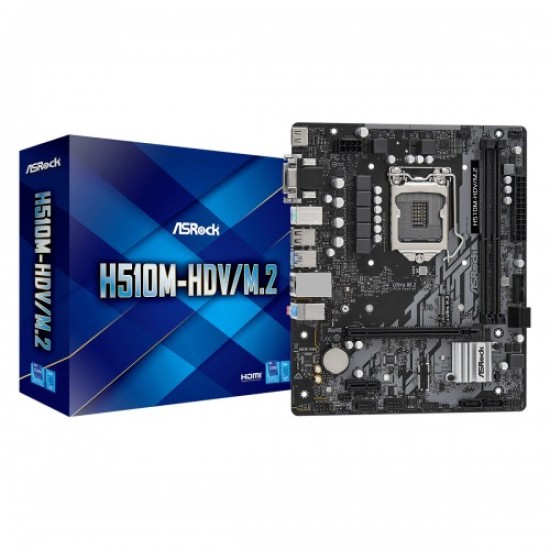

ASRock H510M-HDV/M.2 10th and 11th Gen Micro ATX Motherboard

ASRock H510M-HDV/M.2 10th and 11th Gen Micro ATX Motherboard
Hot Deals save 800 ৳
ASRock H510M-HDV/M.2 10th and 11th Gen Micro ATX Motherboard
  • Offer Price: 9,500৳
  • Price: 10,300৳
  • Stock: In Stock
  • Brand: ASRock
  • Model: H510M-HDV/M.2
  • SKU: 40
  • Warranty: 3 Years
Featured Description:
  • Model: H510M-HDV/M.2
  • Supports 10th and 11th Gen Intel Core Processors
  • Supports DDR4 3200MHz (OC)
  • Base Frequency Boost (BFB) Technology
  • Ultra M.2 32 Gb/s
  • 9,500৳
    10,300৳
    অনলাইনে অর্ডার নিশ্চিত করতে অর্ডার করার সময় আংশিক অগ্রিম টাকা পরিশোধ করতে হবে । অর্ডার করার পূর্বে 01759546431 নাম্বারে কল দিয়ে পণ্য এর স্টক ও ডেলিভারি সম্পর্কে জেনে নেওয়ার জন্য অনুরোধ করা যাচ্ছে ; প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ার কারনে যেকোনো সময় মূল্য পরিবর্তন হতে পারে । ধন্যবাদ

    Specification

    Motherboard Basic Info
    BIOS - 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU Core/Cache, CPU GT, VCCSA, DRAM, VCCIO, VCCST, VCCIN AUX Voltage Multi-adjustment
    Motherboard Basic Information
    Supported CPU - Supports 10th Gen Intel Core Processors and 11th Gen Intel Core Processors (LGA1200) - Digi Power design - 5 Power Phase design - Supports Intel Turbo Boost Max 3.0 Technology
    Chipset Intel H510
    Expansion Slots
    M.2 Socket 1 x Ultra M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
    Expansion Slots
    PCI 11th Gen Intel Core Processors - 1 x PCI Express 4.0 x16 Slot 10th Gen Intel Core Processors - 1 x PCI Express 3.0 x16 Slot - 1 x PCI Express 3.0 x1 Slots
    Memory Specifications
    Type Dual Channel DDR4 Memory Technology
    Motherboard Memory Info
    Supported Memory - Supports DDR4 3200(OC) / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Supports Intel Extreme Memory Profile (XMP) 2.0
    Maximum Memory 64GB
    Motherboard Graphics Info
    Graphics - 11th Gen Intel Core Processors support Intel Xe Graphics Architecture (Gen 12). 10th Gen Intel Core Processors support Gen 9 Graphics - Three graphics output options: D-Sub, DVI-D and HDMI** - Supports Triple Monitor - Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required) - Supports HDCP 2.3 with DVI-D and HDMI 2.0 Ports
    Connector & Ports (MB)
    HDMI Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
    USB (s) Connector: - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) Rear Panel I/O: - 4 x USB 2.0 Ports (Supports ESD Protection) - 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
    Internal I/O Ports - 1 x COM Port Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin) * The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. - 1 x Chassis Fan Connector (4-pin) * The Chassis Fan supports the Chassis fan of maximum 1A (12W) fan power. - 1 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) * The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. * CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use. - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
    Supported Storage - 4 x SATA3 6.0 Gb/s Connectors, support Intel Rapid Storage Technology 18, NCQ, AHCI and Hot Plug - 1 x Ultra M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s
    Others
    Special Features ASRock Super Alloy - Premium 50A Power Choke - Sapphire Black PCB - High-Density Glass Fabric PCB ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop
    Warranty Information
    Manufacturing Warranty 03 years warranty

    Description

    ASRock H510M-HDV/M.2 10th and 11th Gen Micro ATX Motherboard

    The ASRock H510M-HDV/M.2 Micro ATX Motherboard Supports 10th Gen Intel Core Processors and 11th Gen Intel Core Processors. It supports DDR4 3200MHz (OC). It comes with 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x1 and three Graphics Output Options: HDMI, DVI-D, D-Sub. Plus the HDMI port supports 4K resolution. ASRock’s premium 50A power chokes effectively make the saturation current up to 3 times better, thus providing enhanced and improved Vcore voltage to the motherboard. Conventional PC systems processors can only access a fraction of graphics memory and limit system performance. With Clever Access Memory, the info channel gets expanded to harness the complete potential of GPU memory, removes the bottleneck, and increase performance. It comes with a 7.1 CH HD Audio (Realtek ALC897 Audio Codec). It features 4 SATA3 and 1 x Ultra M.2 (PCIe Gen3 x4 & SATA3). The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer accelerates to 32Gb/s. additionally , it also supports SATA3 6Gb/s M.2 modules and is compatible with ASRock’s U.2 Kit for installing a number of the world’s fastest U.2 PCIe Gen3 x4 SSDs. It also has 4 x USB 3.2 Gen1 (2 x Rear, 2 x Front) and 6 x USB 2.0 (4 x Rear, 2 x Front). it's equipped with Intel Gigabit LAN that gives the simplest throughput performance, lower CPU utilization, enhanced stability, and is in a position to deliver the last word network experience to users. Some sensitive digital components on the motherboard are susceptible to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to stop your motherboard’s components from being damaged by these unexpected voltage spikes. you'll also easily optimize your system and keep your motherboard up so far with ASRock Live Update & APP Shop. it's 3 years of warranty.
